How To Connect and Calibrate Thermocouples Using DI-8B47 Series Amplifiers

Thanks to the American National Standards Institute (ANSI), thermocouple wire is color coded to indicate thermocouple type and polarity. This takes the guesswork out of connecting thermocouple wires to your DI-718B, DI-718Bx, or DI-788.

How To Connect and Calibrate Thermocouples

In this example, we’ll show you how to connect and calibrate a K-type thermocouple using a DI-718B, with a DI-8B47K-13 amplifier plugged into channel three.

We’ll begin by inserting a cold junction compensation jumper (included with your DI-718B, DI-718Bx, or DI-788.

How To Connect and Calibrate Thermocouples

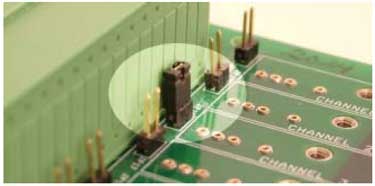

A cold junction compensation jumper placed on channel 3

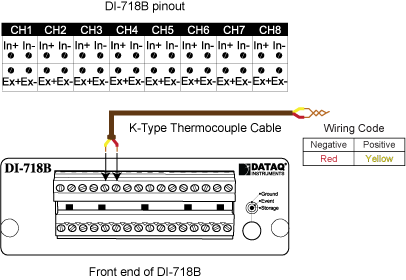

Next, we’ll insert the DI-8B47K-13 amplifier and connect the positive and negative thermocouple wires to In+ and In- respectively. If you reverse the polarity, increasing temperatures will display like they’re decreasing and visa versa.

How To Connect and Calibrate Thermocouples

With our thermocouple connected; we'll use Engineering Unit Settings in WinDaq to display temperature.

We'll begin by selecting 'Engineering Unit Settings' from the 'Edit' pull-down menu.

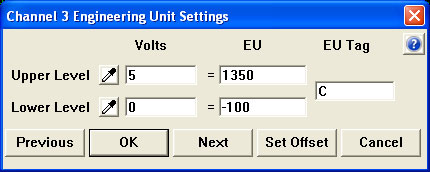

Since we know that the DI-8B47K-13 has a full scale output of 0 to 5 volts and a measurement range of -100°C to 1350°C (printed on the side of the amplifier); we'll enter 0 (zero) for Lower Level Volts and -100 for Lower Level EU. We'll enter 5 for Upper Level Volts and 1350 for Upper Level EU. For EU Tag, enter "C".

How To Connect and Calibrate Thermocouples

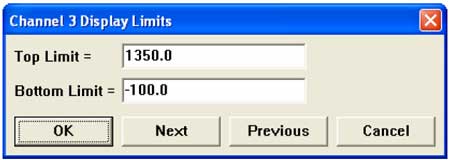

Finally, to display the actual measurement range of the amplifier; we'll select 'Limits' from the 'Scaling' pull down menu. Enter 1350 for the Top Limit and -100 for the Bottom Limit.

How To Connect and Calibrate Thermocouples

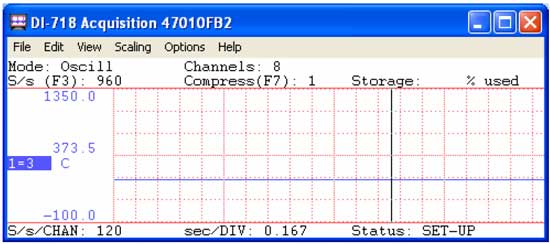

Channel 3 is now calibrated to display temperature over the full-scale range of the DI-8B47K-13!

How To Connect and Calibrate Thermocouples

Additional Reading:

Ambient Temp Affects Thermocouple Measurement Accuracy
Maximum Thermocouple Wire Length
