DI-5B Module Accessories

DI-5B05 Backplane | DI-5B01 Backplane | DI-5B03 and DI-5B04 One/Two Position Backplanes | DI-5B-PS Power Supply

DI-5B05 Backplane

The DI-5B05 analog module mounting board has a capacity of eight analog input and/or output modules in any combination. A separate analog signal path is provided for each channel and each channel's signal is accessible at redundant 26-pin connectors. The module output switch is continuously "on" when using this backplane and all eight module outputs are simultaneously accessible. A temperature sensor is mounted on each channel to provide cold junction compensation for thermocouple input modules. Field connections are terminated with four screw terminals at each module site.

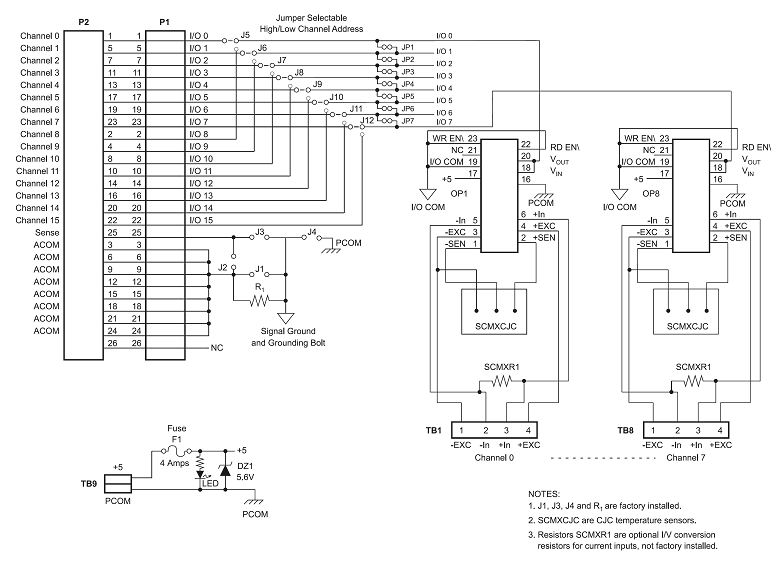

Click here to view the wiring diagram for the DI-5B05


8-position analog I/O backplane, non-multiplexedDI-5B05
8-position analog I/O backplane, non-multiplexed. For use with DI-5B Modules.
$251.00
Qty:



DI-5B01 Backplane

The DI-5B01 16-channel backplane can accept any of the DI-5B analog modules in any mixture. The DI-5B01 has 16 non-addressable analog I/O signal channels which provides each module with its own analog bus. The module's output switch is continuously "on" when using this backplane and all 16 module outputs are simultaneously accessible to high-speed data acquisition (ADC) boards. A temperature sensor is mounted on each channel to provide cold junction compensation for thermocouple input modules. Field connections are terminated with four screw terminals at each site.

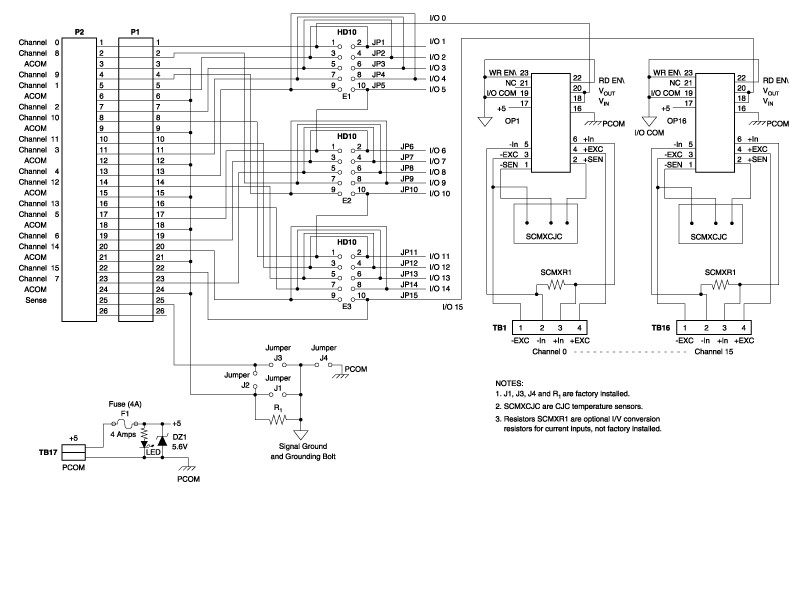

Click here to view the wiring diagram for the DI-5B01


16-channel backplane for 5B modulesDI-5B01
16-channel backplane for 5B modules. Each module has its own analog bus. For use with DI-5B Modules.
$337.00
Qty:





DI-5B03 and DI-5B04 One/Two Position Backplanes

The DI-5B03 is a single channel backplane for the 5B modules. The DI-5B04 is a dual channel backplane for the 5B modules. They are both DIN rail compatible.

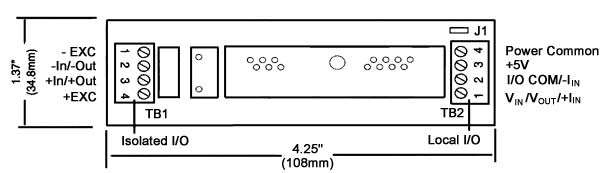

Click here to view the wiring diagram for the DI-5B03

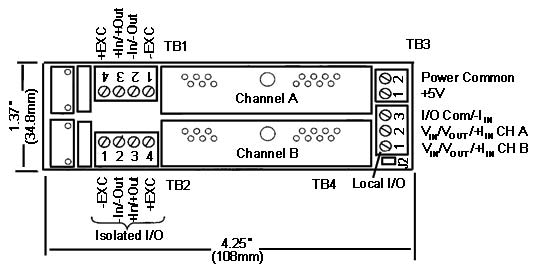

Click here to view the wiring diagram for the DI-5B04

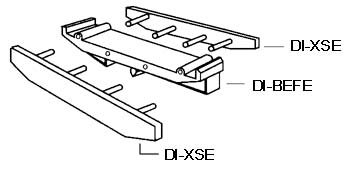

The following accessories are required for mounting one DI-5B03 or DI-5B04 plane (Click here for diagram):

Single-channel backplane for 5B modulesDI-5B03
Single-channel backplane. For use with DI-5B Modules.
$47.00
Qty:
Dual-channel backplane for 5B modulesDI-5B04
Dual-channel backplane. For use with DI-5B Modules.
$67.00
Qty:
Base element with snap footDI-BEFE
Base element with snap foot required for use with models DI-5B03 and DI-5B04 Backplanes. For use with DI-5B Modules.
$8.00
Qty:



DI-5B-PS Power Supply

The DI-5B-PS is a 5V DC Power Supply for the 5B Backplanes. Current spec: 3 ADC

Power SupplyDI-5B-PS
Power Supply. 5V DC Power Supply for use with both DI-5B and DI-8B Backplanes.
$65.00
Qty:
