DI-718B Data Acquisition and Data Logger Products

Supports DI-8B Amplifiers

Product Features

  • Measures temperature, pressure, flow, current, voltage, and more using isolated 8B amplifiers.
  • Low-Cost, Portable, Ethernet Data Logger (external USB to Ethernet converter available). This product is similar to the DI-718B but with 16 signal-conditioned channels.
  • Sixteen DI-8B signal-conditioned analog inputs.
  • Stand-alone data logger option allows in-the-field measurements to be saved to Secure Digital Cards (SD).
  • 14-bit analog to digital conversion.
  • Includes WinDaq Software.
  • Record from as low as 0.0017 Hz to as much as 14,400 Hz (using SD card 101014-2G) with Stand-alone models or from 0.0034 Hz up to 4,800 Hz with PC-connected instruments (WinDaq Unlock Code required to achieve recording rates over 1,108 Hz with PC-connected instruments).
  • Wide variety of measurement functions and ranges based on DI-8B module selections. Mix and match modules as needed.

Products in the Series

DI-718Bx Data Acquisition and Data Logger Systems
  • 16 analog inputs
  • 4800 Hz max sample rate
  • Any industrial measurement
  • Uses isolated 8B amplifier modules
  • Includes WinDaq software
  • Wide power supply range (9-36 Vdc)
  • Provided with ActiveX Control set
$1395.00
Qty:
DI-718Bx Data Acquisition and Data Logger Systems
  • 16 analog inputs
  • 14.4 kHz max sample rate
  • Any industrial measurement
  • Uses isolated 8B amplifier modules
  • Records to PC or SD memory
  • Includes WinDaq software
  • Wide power supply range (9-36 Vdc)
$1495.00
Qty:
DI-718Bx Data Acquisition and Data Logger Systems
  • Model DI-718Bx
  • Unlock Key for WinDaq supports 4800 Hz sample throughput
  • WinDaq/XL ports acquired data into an Excel spreadsheet in real time
  • All the above bundled for a low discounted price
$1695.00
Qty:
DI-718Bx Data Acquisition and Data Logger Systems
  • Model DI-718Bx-S
  • Unlock Key for WinDaq supports 4800 Hz sample throughput
  • Fast 2 GB SD memory card
  • SD memory card reader
  • WinDaq/XL ports acquired data into an Excel spreadsheet in real time
$1895.00
Qty:

Description

The DI-718Bx is a sixteen channel, DI-8B-module data logger system. Each DI-718Bx accepts up to sixteen high-performance, plug-in (DI-8B) signal conditioning modules to include virtually any isolated, industrial-type signal. Because DI-8B modules are identical in pinout and size, they can be mixed or matched in any combination. Choose from thermocouple, true rms, voltage, strain, frequency, process current, RTD, potentiometric, or DC transducer—whatever suits your application. A erasable sticker on the top of the instrument allows easy identification of all installed DI-8B modules.

The DI-718Bx Series offers the option of PC-connected or stand-alone data logger operation. Instruments with the stand-alone data logger option feature a built-in multimedia socket that accepts standard Secure Digital (SD) memories to which acquired data may be stored without a connected PC. SD memories are the same commonly available mass storage devices used with digital cameras and MP3 players. Memories ranging in size from 8MB to 2GB are supported. Instruments without this option must remain tethered to a PC’s Ethernet port or to a an accessible network during data acquisition and use the PC’s own program and memory to store acquired data.

Make Industrial Measurements Through DI-8B Plug-in Signal Conditioning Modules

Each channel on the DI-718Bx accommodates one DI-8B module providing a single channel of isolated input protection, amplification, and filtering. DI-8B modules are plugged into a socketed backplane and are secured with a mounting screw. Each DI-718Bx channel has 4 corresponding screw terminals for your signal connections: channel +, channel-, excitation +, and excitation -. These terminals satisfy all transducer inputs and provide sensor excitation if necessary. Access to the DI-8B modules is through a removable top hatch.

Powerful Data Acquisition Server Capability

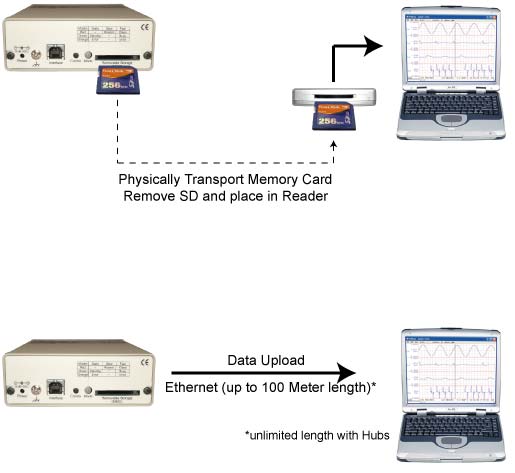

DI-718B Stand-alone data loggers offer data acquisition server capability. Acting as a server allows stand-alone instruments to locally and independently acquire data to their memory cards, and then make that acquired data available upon demand, either by plugging the memory card into a reader, or uploading via the Ethernet interface.

Ethernet-enabled DI-718Bxs provide the most power and flexibility. The Ethernet interface and built-in memory allows the DI-718Bx to transparently become like any other computer on a network, able to share recorded data over a network to a PC on the other side of the facility, or over the Internet to a PC on the other side of the world. These stand-alone instruments can be added easily and seamlessly to existing networks without incremental bandwidth burdens, storing data in memory and uploading on demand. Stand-alone data loggers can also be controlled locally using multifunction push-button control and multi-colored, red, green, orange LED status indicator. To learn more about the DI-718Bx's powerful stand-alone capabilities, click here.

Recommended Memory Card

For optimal performance, DATAQ Instruments, Inc. recommends a standard SD card (not SDHD or SDxC) with a speed of 13x or greater. If sampling at speeds higher than 2kHz we recommend using DATAQ part number 101014-2G to record your data. This card has been tested and approved by DATAQ Instruments engineers.

Fast Throughput Rate

Supports sample throughput rates to 14,400 samples per second (using SD card 101014-2G) to SD with stand-alone Models and 4800 samples per second to PC with PC-connected Models. WinDaq Unlock Code is required to achieve recording rates over 1,108 Hz with PC-connected instruments.

Easy to Connect & Use

Installs in seconds. Simply connect to your computer's Ethernet port or to any accessible network (cable not included). Connect power, then connect your signals to the provided screw terminal blocks. Stand-alone models just need a memory card and power.

Includes WinDaq Software

Be up and running minutes out of the box with WinDaq acquisition and playback software. WinDaq/Lite software is included free with the purchase of every DI-718Bx instrument. WinDaq/Lite operates at a maximum throughput recording rate of 1,108 Hz with a DI-718Bx Instrument. A special version of WinDaq acquisition software may be purchased (WinDaq High Speed Option) allowing you to record data at the speed of the instrument (up to 4800 Hz).

WinDaq Waveform Browser, our unrestricted playback and analysis software for Windows, is also included free with the purchase of every DI-718Bx. Use it to review, measure, compare, and analyze the waveform file after it has been recorded by WinDaq acquisition software. WinDaq software products support up to 14 bits of measurement resolution.

Looking for the same features without signal conditioned inputs?

Our DI-710 Series Data Logger provides all the same great features as the DI-718Bx Series - without the built-in DI-8B backplane. View our complete line of Data Loggers.

Special Discount Bundle Offer

Check out the special bonus bundle offers. Save money when you buy the DI-718Bx model with WinDaq/XL and WinDaq Unlock Code for High Speed Data Acquisition. Special stand-alone bundle provides an SD Card and a card reader. Click here for more information.
