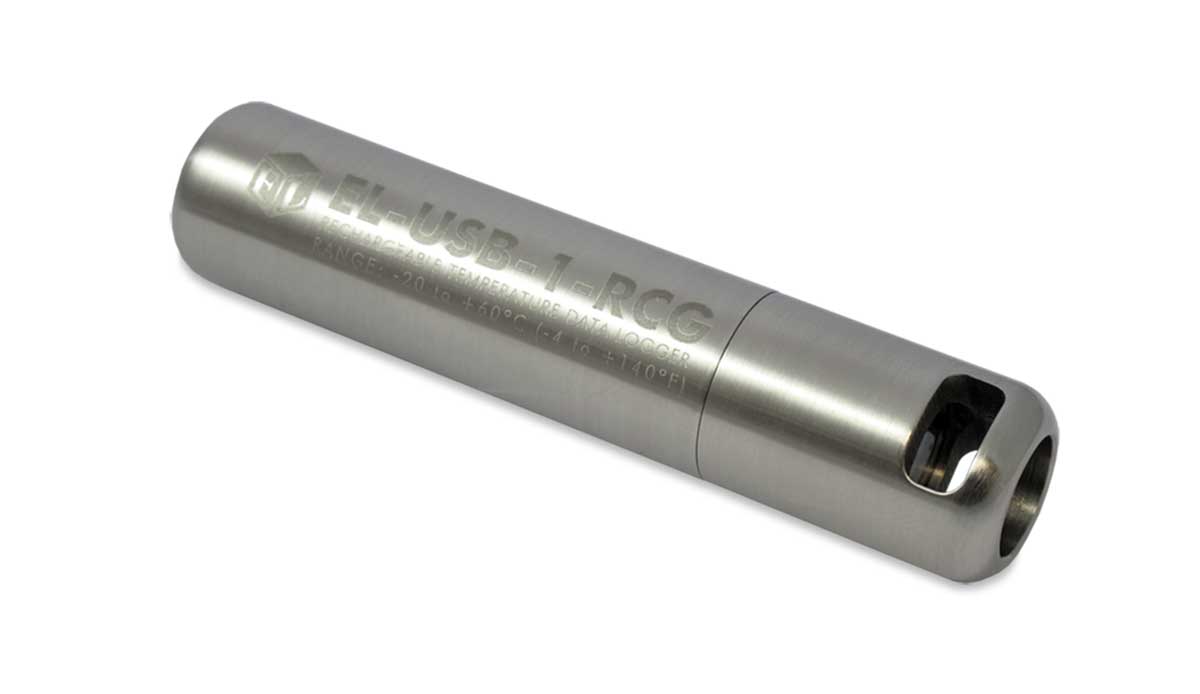

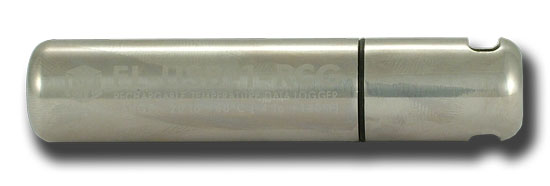

330-668-1444Model EL-USB-1-RCG
Rechargeable Single Channel Data Logger Measures Temperatures from -20°C to +60°C (-4°F to +140°F)
Stock
- Includes an EL-USB-1-RCG data logger, a rechargeable battery (pre-installed), and downloadable software (CALIBRATION CERTIFICATE sold separately under ACCESSORIES tab and must be ordered at time of purchase)
- -20 to +60°C (-4 to +140°F) Measurement Range
- Stainless Steel (316 grade) case
- Environmental protection to IP67
- Rechargeable lithium-ion battery
- Bi-color status LEDs behind protective glass window
- Mini-USB interface for set-up and data download
- User programmable alarm thresholds
- Immediate and delayed start logging
- Supplied with Windows control software and USB cable
- Quantity Discount
Share
Description
The EL-USB-1-RCG rechargeable temperature data logger measures and stores up to 16,382 temperature readings over a -20 to +60°C (-4 to +140°F) measurement range. The glass window and stainless steel 316 assembly provide protection from corrosion, impact and water ingress to IP67 / NEMA 4X. The unit is powered by a lithium-ion rechargeable battery which allows logging for up to 1 month. Setup and downloading is completed by connecting the data logger to a PC’s USB port using the supplied cable and running the purpose-designed software under Windows 2000, XP, Vista and Windows 7. Correct functioning of the unit is indicated by flashing red and green LEDs. Downloaded data can then be graphed, printed and exported to other applications.
Accessories
CAL EL-USB-TEMP-1
Calibration Certificate (1st Cal Value)
Description
Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase this first point option first for each device, and then additional points per device as required. Standard points are $40. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.
CAL EL-USB-TEMP-2
Calibration Certificate (2nd Cal Value)
Description
Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase the first point option first (CAL EL-USB-TEMP-1) for each device, and then additional points per device as required. Standard points are $25. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.
Software
EasyLog Software
Configuration Software
FREE Configuration and download software for Lascar Data Loggers.
Specifications
| Number of Channels: | One |
| Measurement Range: | -20 to +60°C (-4 to +140°F) |
| Internal Resolution: | 0.1° |
| Accuracy (overall error): | ±1°C (±2°F) |
| Logging Rate: | 1 sample every second 1 sample every 10 seconds 1 sample every minute 1 sample every 5 minutes 1 sample every 30 minutes 1 sample every hour 1 sample every 6 hours 1 sample every 12 hours |
| Memory Capacity: | 16,382 samples |
| Operating Temperature Range: | -20 to +60°C (-4 to +140°F) |
| Recharging Time: | 5 hours |
| Charging Temperature Range: | Min: 0°C (+32°F) Typ.: 20°C (+68°F) Max: 45°C (+113°F) |
| Battery Life | 1 week (@ -20°C (-4°F), 1 second logging rate) 4 weeks (@ 20°C (68°F), 1 minutes logging rate) |
