Specify Sample Rate

Click icon to watch this demo on YouTube

(Internet Connection Required)

The total sample throughput rate is the rate that your instrument acquires samples for all channels combined. For example, to acquire two channels of data at 100Hz each would require a sample throughput rate (total scanning rate) of 200Hz (2 channels × 100Hz = 200Hz). The Sample Rate must be specified before recording; default varies.





Specify a throughput sample rate:



  1. In the Edit menu click on Sample Rate.... This displays the sample rate dialog box:





  1. Enter the desired data throughput rate (or total scanning rate) in samples per second in the Sample Rate text box.



  1. Click OK or press the ENTER key.



WinDaq Acquisition automatically allocates the correct amount of buffer space when you input a sample rate. The Input Buffer Size and Disk Buffer Size values are displayed for informational purposes only.



Keep in mind that the sample rate is actually a throughput rate. The sample rate per channel (obtained by dividing the selected sample throughput rate by the number of channels enabled) is displayed in the lower left corner of the window as S/s/CHAN: (samples per second per channel).





Although thousands of different sample rates may be configured, some discrete rates are not attainable. This limitation is due to the inability to divide the master clock in a manner that results in an even-numbered quotient.

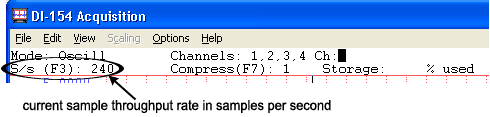

The sample rate shown in the top right hand corner of WinDaq is a throughput sample rate. The throughput sample rate is the rate that your instrument acquires samples for all channels combined. For example, to acquire two channels of data at 100Hz each would require a sample throughput rate (total scanning rate) of 200Hz (2 channels × 100Hz = 200Hz). The Sample Rate must be specified before recording; default varies.

The sample rate shown in the top right hand corner of WinDaq is a throughput sample rate. The throughput sample rate is the rate that your instrument acquires samples for all channels combined.





DI-149 products require you to enter a per channel sample rate when setting the sample rate.

DI-2108 products require you to enter a per channel sample rate when setting the sample rate. The DI-2108 also provide the ability to set a sample interval instead.



  1. In the Edit menu click on Sample Rate.... This displays the sample rate dialog box:





DI-2108 Sample Rate dialog box



  1. Enter the desired per channel sample rate in samples per second in the Sample Rate/Channel text box or select a sample interval in the Sampling Interval dropdown list. Click on one of the Set buttons to have WinDaq automatically set your per channel sample rate to the maximum or minimum allowed for your device.



  1. Click OK or press the ENTER key.



Please Note: WinDaq/Lite will display a total sample throughput rate of 10,000 Hz (or 1250 Hz per channel) but will not record at rates over 240 Hz throughput (30 Hz per channel). You must purchase WinDaq/HS to record at rates over 240 Hz throughput.



The sample rate per channel is displayed in the lower left corner of the window as S/s/CHAN: (samples per second per channel).





Although thousands of different sample rates may be configured, some discrete rates are not attainable. This limitation is due to the inability to divide the master clock in a manner that results in an even-numbered quotient.
