Select Live Display > Function

Previous | Next

Function

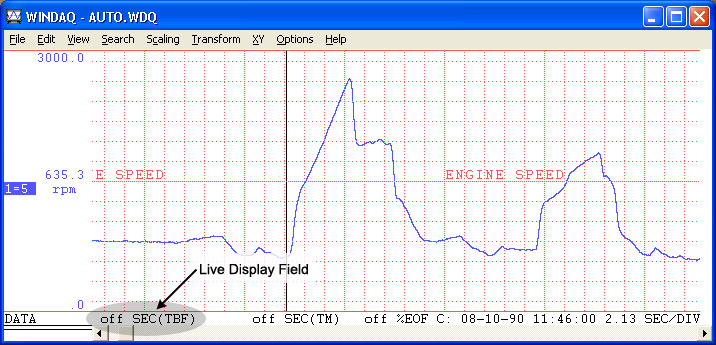

Allows you to select between four different data formats for display in the Live Display field in the Bottom Annotation Line when the Live Display is enabled.





These formats report waveform information for the currently selected channel in various ways: time from beginning of file, difference from time marker point, % change from time marker point, and slope of line to time marker point.
