Model DI-725 - OBSOLETE

32-Channel General Purpose Expansion Unit

Out of
Stock

OBSOLETE

  • 32-Channel expansion device for DI-720, DI-722, and DI-730 instruments
  • Programmable gain per channel
  • Powered by host instrument
  • Base models feature a full scale measurement range of ±10V at unity gain. Extended measurement range models offer a ±20V full scale measurement range. Custom measurement ranges also available
  • Extremely small size (9 × 7.3 × 1.5 in.)
  • Can be stacked and secured with optional stacking brackets.
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page

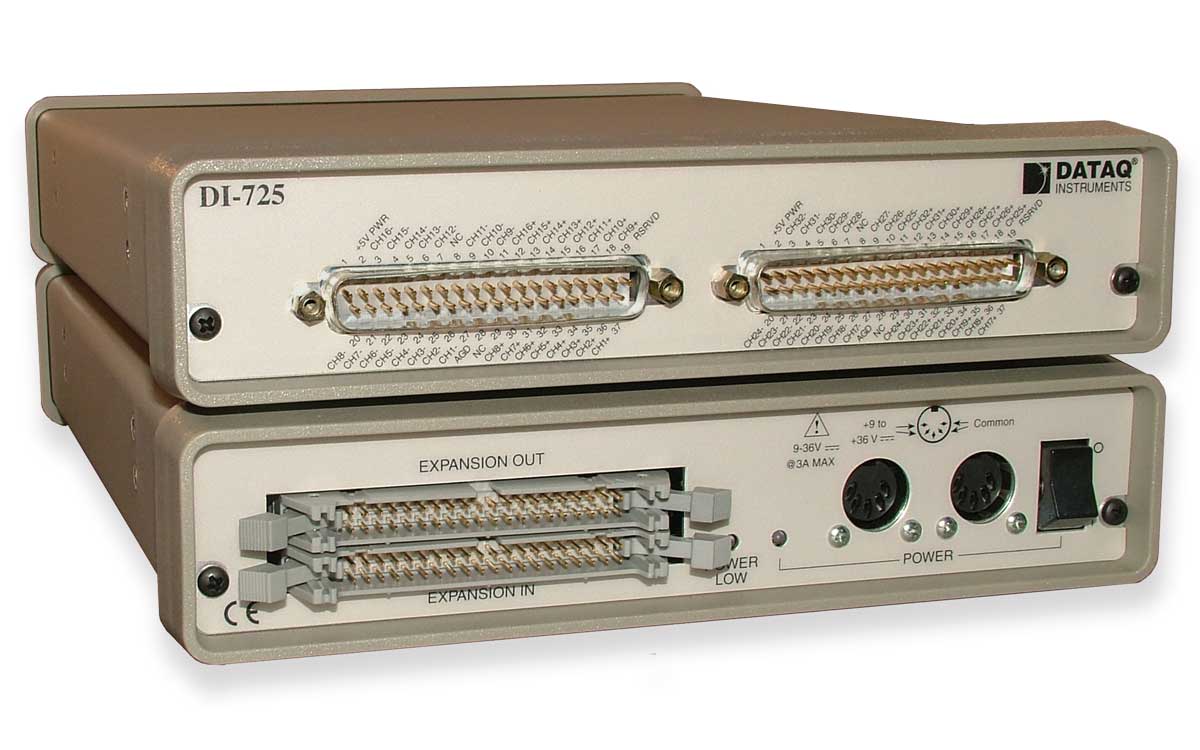

DI-725 Data Acquisition expander front (top) and back(bottom)
This data logger is manufactured in the United States of America

Description

The DI-725 is a 32-channel analog expansion device that allows you to increase the analog input channel capacity of DI-720 and DI-730 Series instruments. Each DI-725 features 32 differential analog inputs and programmable gain amplifiers with gain selections of 1, 2, 4, and 8. Model DI-725 features a ±10 VFS range. Model DI-725E features a ±20 VFS range with expanded input protection. A dual power connector arrangement allows the DI-725 to share the same power supply used to power the host instrument.

In return for the 32 expansion channels it provides, each DI-725 consumes two channels from its host instrument. A maximum of 240 analog channels may be configured by connecting multiple DI-725’s together.

Accessories

CABL-4

37-pin to BNC

$149.00
16 BNC Female to 37-Pin D-Type Female

Description

16 BNC Female to 37-Pin D-Type Female.

DI-705

Signal Interface

$99.00
16-channel screw terminal signal interface

Description

16-channel screw terminal signal interface.

DI-706-1 (DIFF)

Signal Interface

$479.00
32-channel banana jack signal interface for host instruments that have differential-only measurement capability

Description

32-channel banana jack signal interface for host instruments that have differential-only measurement capability.
