Model DI-750 and DI-760 - OBSOLETE (Please consider DI-4718B)

Industrial Data Acquisition System

Out of
Stock

OBSOLETE

  • Obsolete - replaced by the DI-785 or the DI-788
  • From Sensor to Results With One Product
  • Accepts DI-5B Series Plug-In Signal Conditioning Modules
  • Available in 16- or 32-Channel Models
  • Built-In 250 kHz ADC and Computer Printer Port Interface
  • USB and Ethernet interface options available
  • Desktop Unit with Optional Rack Mount Configurations
  • 14-bit Resolution
  • WinDaq Software Support
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page

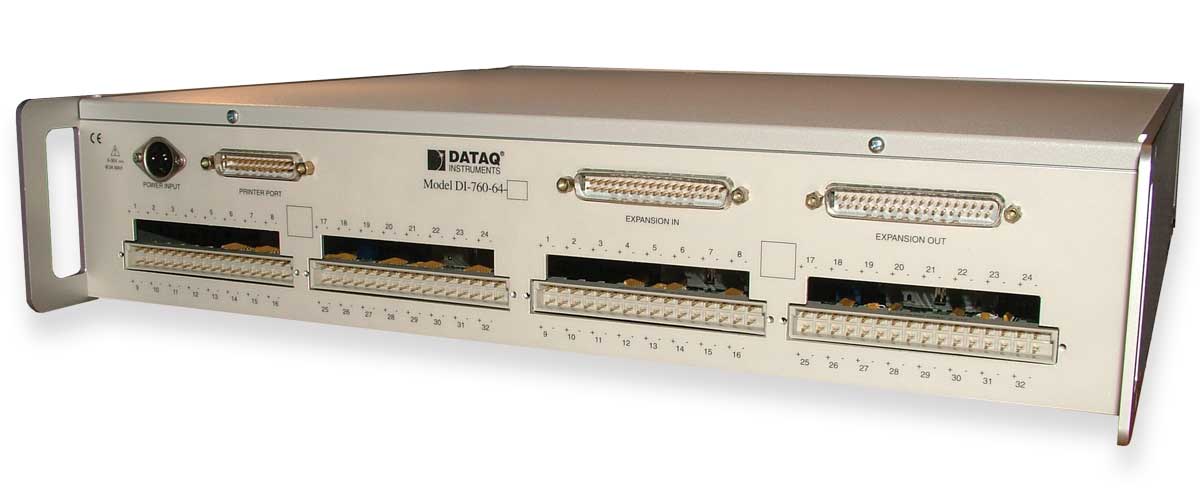

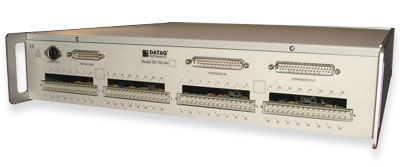

DI-760 Data Acquisition System
This data logger is manufactured in the United States of America

Description

DI-500/510 and DI-750/760 Series data acquisition instruments offer a full range of solutions for demanding industrial measurements. Each instrument in the family is fully integrated to provide signal conditioned measurement types—without multiple boxes. Instruments conveniently attach to the printer port of any desktop PC. Their built-in ADC allows sample rates of one to 250,000 samples per second in either triggered or continuous data acquisition modes. Best of all, plug-in DI-5B series signal conditioners allow virtually any industrial measurement to be made with fail-safe, 600-volt input-tooutput isolation. It has never been easier to bring an instrument to a measurement site or safer to make demanding industrial measurements with more flexibility.

Accessories

DI-5B Amplifiers

Signal Conditioning Modules

DI-8B Amplifier Modules

Description

DI-5B amplifiers offer the convenience to mix and match modules based upon measurement function and range to meet any application requirement, from the most simple to the most complex.

Software

WinDaq

Data Acquisition Recording and Playback Software

Included FREE with your Dataq Instruments hardware purchase. 240Hz maximum sample rate for most products. Owners of obsolete products may still download the latest version.

WinDaq Data Acquisition Software

ActiveX Controls

Programming

FREE ActiveX programming solutions for Dataq Instruments products. Free sample programs available. Compatible with LabView.

DATAQ ActiveX Controls

WinDaq/XL

WinDaq-to-Excel Real Time Link

Real-time data logging directly to Microsoft Excel (supports MS Office 2003 or higher). No programming required. Free Trial Version. Purchase full version on WinDaq/XL product page.
