How to Activate WinDaq/XL

Once installed, WinDaq/XL must be activated in Microsoft Excel. Activations instructions differ based on which version of Excel you are using.

Please Note: WinDaq/XL is NOT compatible with 64-bit versions of Excel.

Microsoft Excel 2003 Instructions | Microsoft Excel 2007 Instructions | Microsoft Excel 2010 Instructions

Excel 2003 Instructions

  1. Go to the Tools menu in Excel and click on Add-Ins.
    xl add-in

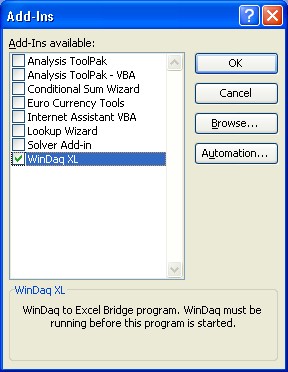

  2. Click on the WinDaq XL Option and Click OK.
    xl add-in

    If WinDaq/XL is not available in this window you must find the program by using the Browse button. WinDaq/XL will be located in the folder specified during installation (default is C:\WinDaqXL\WinDaqXL.xla).

  3. To begin using WinDaq/XL go to the Start command.

Once activated, you can access WinDaq/XL from the View > Add-ons menu item inWinDaqAcquisition software.

Note: WinDaq/XL is an add-in program to WinDaqSoftware and you must have WinDaq Acquisition running in order to stream data to Excel. To stream data in multiple instances (devices) you must run WinDaq with the first device then start WinDaq/XL; run WinDaq with the second device then start WinDaq/XL; etc.

Excel 2007 Instructions

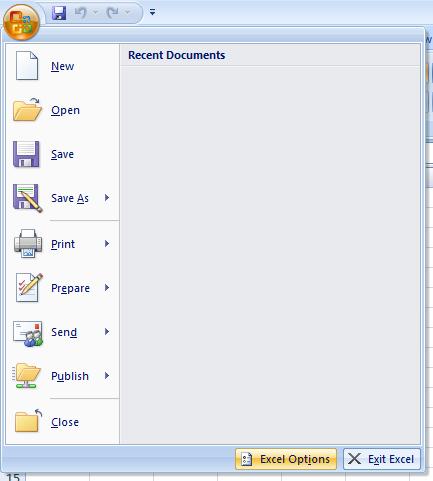

  1. Click on the Microsoft Office button and click Excel Options.

    xl add-in

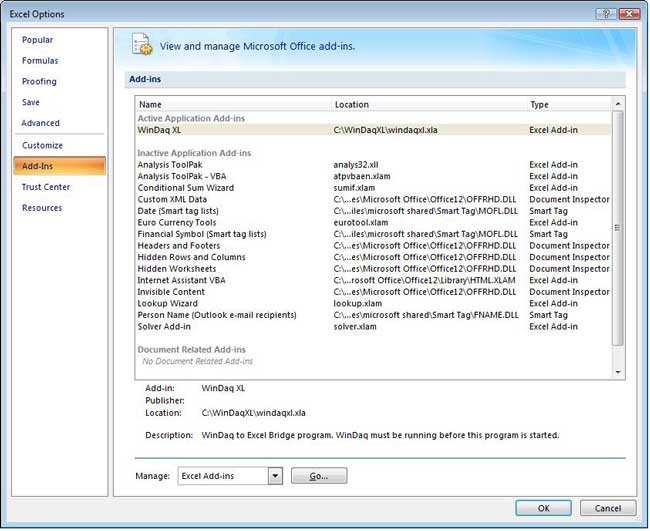

  2. Click on the Add-Ins Category.

    xl add-in
  3. Select Excel Add-Ins from the Manage: drop-down box.
  4. Click on the Go button.
  5. Click on the Browse button.
  6. Locate WinDaq/XL (default is C:\WinDaqXL\windaqxl.xla).

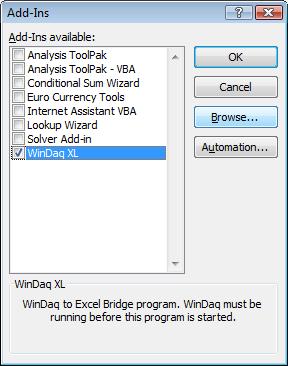

  7. In the Add-Ins available box, make sure the check box next to WinDaq/XL is checked.

    xl add-in
  8. Click OK.

Once activated, you can access WinDaq/XL from the View > Add-ons menu item in WinDaq Acquisition software.

Note: WinDaq/XL is an add-in program to WinDaqSoftware and you must have WinDaq Acquisition running in order to stream data to Excel. To stream data in multiple instances (devices) you must run WinDaq with the first device then start WinDaq/XL; run WinDaq with the second device then start WinDaq/XL; etc.

Excel 2010 Instructions

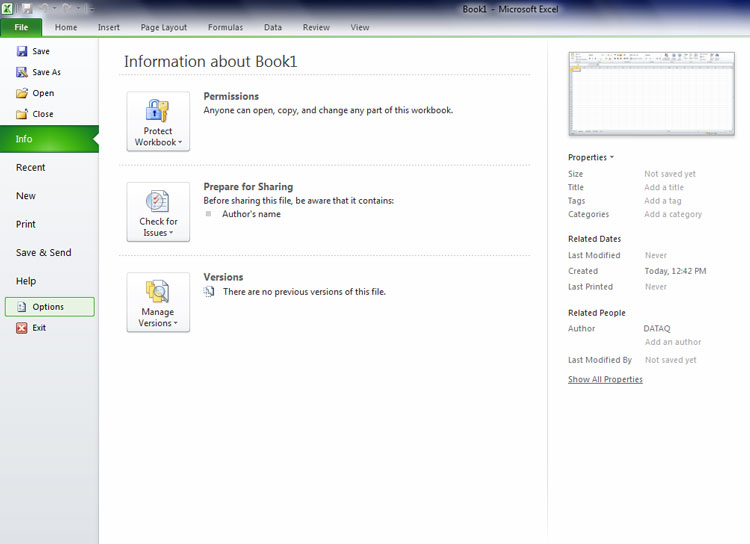

  1. Click on the File tab and click on Options (under Help).

    Excel 2010

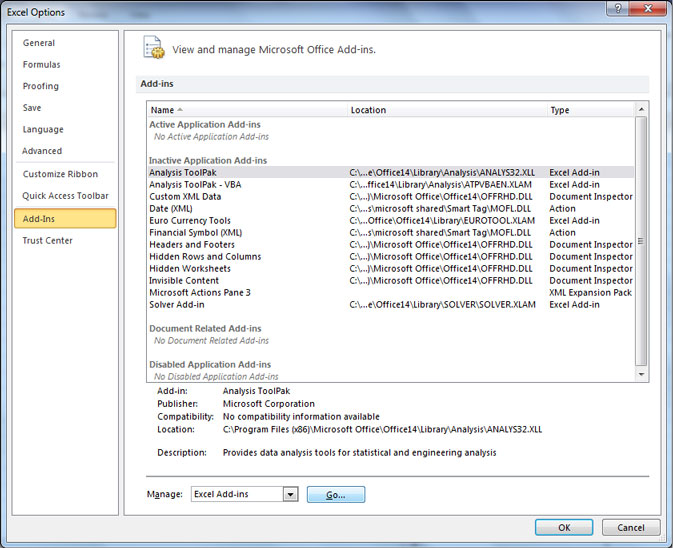

  2. In the Excel Options window select Add-Ins.

    Excel Options - Add-Ins
  3. Select Excel Add-Ins from the Manage: drop-down box.
  4. Click on the Go button.

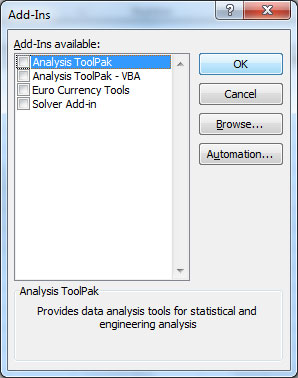

  5. In the Add-Ins window click on the Browse button.

    xl add-in
  6. Locate WinDaq/XL (default is C:\WinDaqXL\windaqxl.xla) and select it.

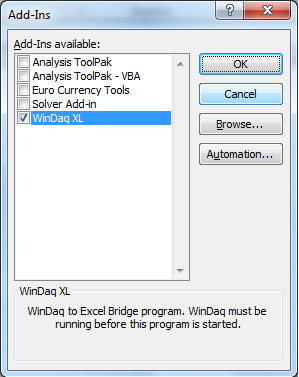

  7. In the Add-Ins window, make sure the check box next to WinDaq/XL is checked.

    xl add-in
  8. Click OK.

Once activated, you can access WinDaq/XL from the View > Add-ons menu item in WinDaq Acquisition software.

Note: WinDaq/XL is an add-in program to WinDaqSoftware and you must have WinDaq Acquisition running in order to stream data to Excel. To stream data in multiple instances (devices) you must run WinDaq with the first device then start WinDaq/XL; run WinDaq with the second device then start WinDaq/XL; etc.

Download the WinDaq/XL Help file to learn more about this software.

Purchased copies of WinDaq/XL will come with a Product ID that can be entered during installation, or later in the Activation box that appears when you run WinDaq/XL. The Product ID is located on a sticker included with your hardware purchase or in an email sent when you order WinDaq/XL online. If you have any questions, feel free to email Customer Support.
