Scaling Limits

Previous | Next


This feature allows you to specify convenient upper and lower chart edge values.


Activating Procedure

Select Scaling Limits…:


  In the Scaling menu click on Limits….


   Choose Scaling Limits… (ALT, C, L).

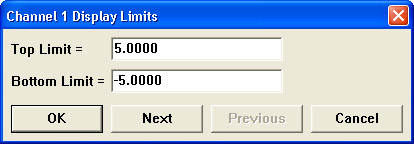

When selected, the Display Limits dialog box is displayed on the screen.



Enter desired values. Click on OK or click on Next/Previous to go to the Display Limits dialog box for the Next/Previous channel - set values for all channels desired and then click OK.


Your specified values will now be displayed on the upper and lower chart-edges and the waveform will be automatically scaled to fit the new values.
