Ethernet Connections

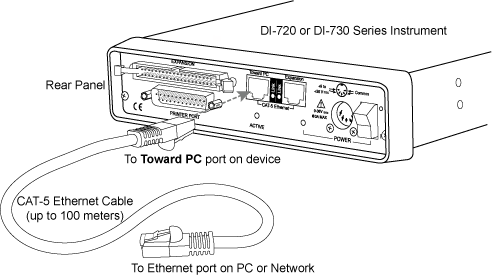

Single Device

1. Connect one end of a CAT-5 Ethernet cable to the Toward PC port on your Instrument.
2. Connect the other end of the CAT-5 Ethernet cable to an Ethernet port on your PC or a network.

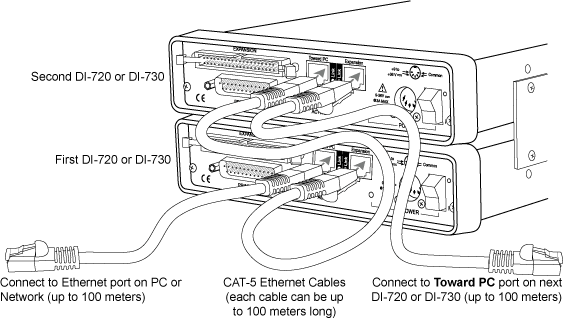

Multiple Devices

1. Connect one end of a CAT-5 Ethernet cable to the Toward PC port on the first Ethernet device.
2. Connect the other end of the same CAT-5 Ethernet cable to an Ethernet port on your PC or Local Area Network.
3. Connect one end of another CAT-5 Ethernet Cable to the Expansion port on the rear of the first Ethernet device.
4. Connect the other end of the same CAT-5 Ethernet cable to the Toward PC port on the second Ethernet device.
5. Continue installing more Ethernet devices by connecting a CAT-5 Ethernet cable to the Expansion port of the last device in the chain and the Toward PC port on the next device you are adding to the chain.
