The Concept

Data acquisition systems are typically synchronized or distributed, but not both. Now, a new class of high-speed data acquisition hardware from DATAQ Instruments gives you the best of both worlds. With it you can acquire data across a dispersed network of data acquisition systems, with complete synchronization. That means that channel values across individual units are acquired in the same time slot, thus allowing meaningful comparisons. The first channel of the first unit, for example, can be precisely compared in time with data acquired on the last channel of the last unit, even though they are separated by hundreds of meters of CAT-5 cable. You can even set up individual units and channels to sample at different rates and still maintain complete synchronization.

DATAQ Instruments' Ethernet interface communication option connects DI-720/-730/-785 Series products to any PC or local area network (LAN). The option uses CAT-5 cable to yield continuous data acquisition rates up to 150,000 samples per second throughput for a single device. Multiple devices connected to the same network can achieve a total throughput rate as high as 2,500,000 samples per second or more. Adding more flexibility, multiple DI-720/-730 products, each equipped with an Ethernet interface, may be simply daisy-chained together with CAT-5 cable to form an ad-hoc extended network of separated, yet fully synchronous data acquisition stations. Each station can sample at the same or different rate as other stations and still maintain full synchronization. The maximum distance between stations can be as much as 100 meters, and using multiple stations a distributed data acquisition network of virtually any length may be deployed.

Typical Applications

Using these products, synchronous measurements can be achieved in data acquisition situations that are inherently dispersed. Typical applications include, but are not limited to:

  • In-Vehicle Testing (view application note)
  • Metal Mill applications (view application note)
    • Steel strip mill
    • Continuous Pickle lines
    • Temper steel rolling mills
    • Continuous steel casting
    • Seamless steel pipe mills
    • Continuous aluminum casting
    • Aluminum rolling mills
  • Pulp and paper mills
    • Wire processes
    • Presses
    • Dryers
    • Size presses
    • Calendars
    • Reelers
    • Unwinders and slitters
  • PLC fine tuning and troubleshooting to detect:
    • Electrical sequencing variations and flaws
    • Mechanical valve actuation latencies
    • Motor timing conflicts
    • Hydraulic spikes or drop outs
  • Structural wind/weather measurements and audits
    • Tall buildings
    • Long bridge spans (view application note)
    • Floating platforms like oil rigs
    • Extended length vessels like super tankers
  • Web printing press



How it works

The Ethernet interface of DI-720/-730/-785 products actually contains an embedded Ethernet switch. This approach eliminates the need to provide switches or hubs externally. It also simplifies multi-unit interconnection by allowing a daisy-chain approach. Other firmware on the Ethernet interface ensures multi-unit synchronization.

distributed synchronous data acquisition block diagram

Patented (US 7,792,139 B2)

Typical Deployments

Each application for Ethernet-based DI-720/-730/-785 assumes its own unique character, but here are some deployment possibilities beyond a "single-unit-to-PC" configuration you may want to consider:

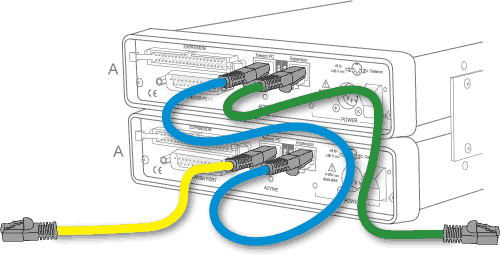

Local, Synchronous Expansion
Connect and stack multiple Ethernet versions of DI-720 Series instruments (DI-720 or DI-722), the DI-730, and/or the DI-785 together in any combination. Synchronization between units is guaranteed, and the PC may be local to 100 meters distant from the data acquisition hardware.


mouse over image for Key

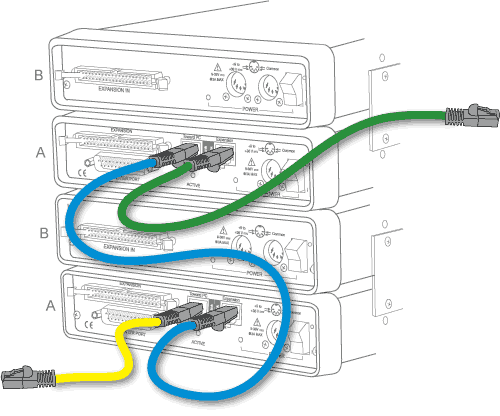

Add Isolated Amplifier Backpacks
Add expansion backpacks like the DI-75B and DI-78B to the mix (DI-720/730 products). Doing so preserves synchronization, increases channel count, and brings the full spectrum of 5B and 8B isolation amplifiers to bear on your measurement tasks.


mouse over image for Key

Distributed, Synchronous Expansion
Create multiple measurement stations of any combination of DI-720, -722, or -730 instruments, with or without amplifier backpacks. Individual stations may be separated from adjacent stations by up to 100 meters to yield virtually unlimited overall lengths, with synchronization guaranteed across the entire span.


mouse over image for Key

Software

WinDaq software supplied with Ethernet interface versions of the DI-720/-730/-785 provides a complete environment for managing multiple networks, and ensuring synchronous data acquisition, real time display, stream-to-disk, playback, export, and analysis. View the Multimedia Demonstration (4:55).



Supported Products


DI-730 Distributed and Synchronized Ethernet Data Acquisition SystemDI-730 Industrial Data Acquisition System

The DI-730 Series is a Heavy Industrial Ethernet Data Acquisition System providing ±1000V channel-to-channel and input-to-output isolation — Perfect for troubleshooting AC or DC motor drive systems. Measure field voltages and currents, control signals, RPM, and more. Also for Electric Motor/Generator Maintenance and Troubleshooting in Mills and Locomotion.

DI-720 Distributed and Synchronized Ethernet Data Acquisition SystemDI-720 General Purpose Data Acquisition System

The DI-720 Series provide general purpose data acquisition solutions for use in situations where pre-amplified signals are acquired. Examples include process monitoring and a variety of medical research applications.

DI-722 Distributed and Synchronized Ethernet Data Acquisition SystemDI-722 Ruggedized Data Acquisition System

DI-722 products feature an extended measurement range (±2.5 to ±20 volts full scale), input protection (up to 120V RMS normal and common mode voltages), and full differential measurement capability. These enhancements allow the DI-722 Series to make otherwise difficult measurements such as in-vehicle testing or any other measurement application where a 10 volt full scale range is inadequate.

DI-785 Distributed and Synchronized Ethernet Data Acquisition SystemDI-785 Industrial Data Acquisition System

The DI-785 features 32 input channels designed specifically for DI-5B modules. DI-5B modules provide a direct interface to measurements such as thermocouple, voltage, strain, frequency, process current, RTD, and potentiometric.

DI-787 Distributed and Synchronized Ethernet Data Acquisition SystemDI-788 Industrial Data Acquisition System

The DI-788 features 32 input channels designed specifically for DI-8B modules. DI-8B modules provide a direct interface to measurements such as thermocouple, voltage, strain, frequency, process current, RTD, and potentiometric.
