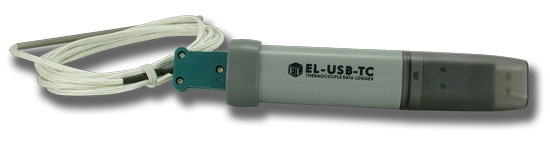

EL-USB-TC Thermocouple Data Logger

Product Highlights

• -200 to +1300°C Measurement Range (K-type)
• -130 to +900°C Measurement Range (J-type)
• -200 to +350°C Measurement Range (T-type)
• USB Interface for Set-up and Data Download
• 2 User-Programmable Alarm Thresholds
• Bright Red and Green LED Indication
• Replaceable Internal Lithium Battery
• Supplied with basic K-type thermocouple rated from 0 to 400°C (32 to 752°F)

Record Times

EL-USB Data Logger Products for Any Application

EasyLog model EL-USB series products are a line of low cost, compact, battery-operated data loggers with built-in memory and USB interface. Each product in the line offers a specific measurement function and range (see table). From temperature and humidity to carbon monoxide trending, there's an EasyLog data logger that's right for you (click on the check-mark to jump to that product's page):

Measurement

Model EL-USB

Function

Range

-LITE

-1

-1-LCD

-1-RCG

-1-PRO

-2

-2+

-2-LCD

-2-LCD+

-3

-4

-5

-TC

-TC-LCD

-CO

-RT

Temperature

-10°C to +50°C (+14°F to +122°F)

Temperature

-35 to +80°C (-31 to +176°F)

Temperature

-20 to +60°C (-4 to +140°F)

High Temperature

-40 to +125°C (-40 to +257°F)

Humidity temperature, dew point

0 to 100% RH -35 to +80°C (-31 to +176°F)

*

*

*

*

Voltage

0 to 30 VDC

Process current

4 to 20 mA

Event, State, Count

3-28 VDC

Thermocouple (no display)

-130 to +900°C (J) -200 to +1300°C (K) -200 to +350°C (T)

Thermocouple (with display)

-100 to +900°C (J) -200 to +1300°C (K) -200 to +400°C (T)

Carbon monoxide

0 to 1000 ppm

PC connected Temperature, Humidity, Dew point (Learn more)

0 to 100% RH -20 to +70°C (-4 to +158°F)

*EL-USB-2+ provides higher accuracy measurements than the EL-USB-2 and the EL-USB-2-LCD.

EL-DataPad

The EL-DataPad allows users of EL-USB-TC thermocouple temperature data loggers to configure their units, upload data, and view logging results on-the-spot rather than moving the logger to their PC. This allows shorter breaks in data collection for more data continuity, less travel time, and on-the-spot data review and data logger reconfiguration. Features include:

• Archive capacity for up to 500 logger uploads
• View uploaded data with general trend and summary reports
• Allows full or quick set-up of compatible EL-USB data loggers
• Touch screen interface for navigation of menus
• 2.8 inch full color TFT display
• Stored data can be transferred to a PC via micro USB cable
• Rechargeable internal built-in lithium battery provides up to 8 hours of use between charges

Learn more about the EL-DataPad

Ordering Information, Models, and Prices

Part Number	Description	Price (US)	DATAQ Store
EL-USB-TC Same Day Shipping!	Thermocouple Data Logger Includes EL-USB-TC data logger, 1.5m K-type Thermocouple, software on CD, and battery.	$85*	Quantity:
BAT-3V6	Replacement 3.6V, 1200mAh lithium battery.	$4.50	Quantity:
K-Type Probe 1M5	Spare K-type thermocouple probe.	$20	Quantity:
DI-TCJ	Type J miniature male thermocouple connector. Learn More.	$1.75	Quantity:
DI-TCK	Type K miniature male thermocouple connector. Learn More.	$1.75	Quantity:
DI-TCT	Type T miniature male thermocouple connector. Learn More.	$1.75	Quantity:
CAL EL-USB-TEMP-1	Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase this first point option first for each device, and then additional points per device as required. Choose a temperature point in the online store. Standard points are $49. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge. Please Note: These calibration certificates have a typical lead time of 2-3 weeks. Please Note: Calibration certificates cannot be returned for a refund.	$49	Go to shopping cart to select Temperature point and add to cart.
CAL EL-USB-TEMP-2	Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates NIST traceable calibration certificate (each additional point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase the first point option first (CAL EL-USB-TEMP-1) for each device, and then additional points per device as required. Choose a temperature point in the online store. Standard points are $20. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge. Please Note: These calibration certificates have a typical lead time of 2-3 weeks. Please Note: Calibration certificates cannot be returned for a refund.	$20	Go to shopping cart to select Temperature point and add to cart.
EL-DataPad Same Day Shipping!	Portable viewer collects and stores data from up to 500 EL-USB temperature data loggers. Learn More	$199	Quantity:
*Quantity discounts (single shipment lot) for orders of 25 units (of the same model) or more: 10%.

Note: All data loggers include EasyLog EL-USB Data Logger software and one lithium battery. Other accessories may be provided depending upon the model. These products are NOT compatible with WinDaq or WinDaq/XL Software packages.
