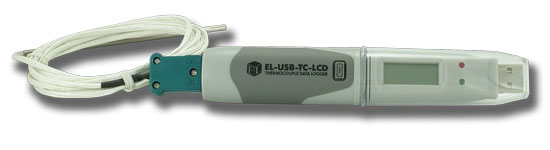

EL-USB-TC-LCD Thermocouple Data Logger

Measures and stores Temperature Thermocouple readings (TC types K, J, T)

EL-USB-TC-LCD Thermocouple Temperature Data Logger

NIST-traceable Calibration Certificate Available for this product

Product Highlights

  • -200 to +1300°C Measurement Range (K-type)
  • -100 to +900°C Measurement Range (J-type)
  • -200 to +400°C Measurement Range (T-type)
  • High contrast LCD, with four digit temperature display
  • USB Interface for Set-up and Data Download
  • 2 User-Programmable Alarm Thresholds
  • Bright Red and Green LED Indication
  • Immediate, delayed and push-to-start logging
  • Replaceable Internal Lithium Battery
  • Supplied with basic K-type thermocouple rated from 0 to 300°C (32 to 446°F)

Record Times

Sampling Interval Record Time
1 sample every second 9 hours
1 sample every 10 seconds 90 hours
1 sample every minute 22 days
1 sample every 5 minutes 112 days
1 sample every 30 minutes 22 months
1 sample every hour > 2 years
1 sample every 6 hours > 2 years
1 sample every 12 hours > 2 years

EL-USB Data Logger Products for Any Application

EasyLog model EL-USB series products are a line of low cost, compact, battery-operated data loggers with built-in memory and USB interface. Each product in the line offers a specific measurement function and range (see table). From temperature and humidity to carbon monoxide trending, there's an EasyLog data logger that's right for you (click on the check-mark to jump to that product's page):

Measurement Model EL-USB
Function Range -LITE -1 -1-LCD -1-RCG -1-PRO -2 -2+ -2-LCD -2-LCD+ -3 -4 -5 -ACT -TC -TC-LCD -TP-LCD -CO -RT
Temperature -10°C to +50°C
(+14°F to +122°F)
checkmark
Temperature -35 to +80°C
(-31 to +176°F)
  checkmark  checkmark
Temperature -20 to +60°C
(-4 to +140°F)
      checkmark
High Temperature -40 to +125°C
(-40 to +257°F)
        checkmark                     checkmark
Humidity
temperature, dew point
0 to 100% RH
-35 to +80°C
(-31 to +176°F)
          checkmark* checkmark*

checkmark*

checkmark*
Voltage 0 to 30 VDC                    checkmark
Process current 4 to 20 mA                      checkmark
Event, State, Count 3-28 VDC                        checkmark
Current -1000 to 1000 mV                          checkmark
Thermocouple -130 to +900°C (J)
-200 to +1300°C (K)
-200 to +350°C (T)
                           checkmark checkmark
Carbon monoxide 0 to 1000 ppm                                  checkmark
PC connected Temperature, Humidity, Dew point
(Learn more)
0 to 100% RH
-20 to +70°C
(-4 to +158°F)
                                   checkmark

*EL-USB-2+ provides higher accuracy measurements than the EL-USB-2 and the EL-USB-2-LCD.

EL-DataPad

EL-DataPad for EL-USB Data LoggersThe EL-DataPad allows users of EL-USB-TC-LCD thermocouple temperature data loggers to configure their units, upload data, and view logging results on-the-spot rather than moving the logger to their PC. This allows shorter breaks in data collection for more data continuity, less travel time, and on-the-spot data review and data logger reconfiguration. Features include:

  • Archive capacity for up to 500 logger uploads
  • View uploaded data with general trend and summary reports
  • Allows full or quick set-up of compatible EL-USB data loggers
  • Touch screen interface for navigation of menus
  • 2.8 inch full color TFT display
  • Stored data can be transferred to a PC via micro USB cable
  • Rechargeable internal built-in lithium battery provides up to 8 hours of use between charges

Learn more about the EL-DataPad

Ordering Information, Models, and Prices

View Shopping Cart
Part Number Description Price
(US)
DATAQ Store
EL-USB-TC-LCD
Out of Stock
Expected ship date: April 30, 2014
Thermocouple Data Logger with LCD Display
Includes EL-USB-TC-LCD data logger, 1.5m K-type Thermocouple, software on CD, and battery.

Please Note: This product does NOT come with a Calibration Certificate. If you need a certificate with your data logger it MUST be on the same order as the data logger you need it for. To determine whether a Calibration Certificate is something you need please read our blog post: EL-USB Data Logger Series and Calibration Certificates.
$102*
Quantity:
BAT-3V6 Replacement 3.6V, 1200mAh lithium battery. $4.50
Quantity:
K-Type Probe 1M5 Spare K-type thermocouple probe. $20
Quantity:
DI-TCJ Type J miniature male thermocouple connector. Learn More. $1.75
Quantity:
DI-TCK Type K miniature male thermocouple connector. Learn More. $1.75
Quantity:
DI-TCT Type T miniature male thermocouple connector. Learn More. $1.75
Quantity:
CAL EL-USB-TEMP-1 Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates

NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A.

Purchase this first point option first for each device, and then additional points per device as required.

Choose a temperature point in the online store. Standard points are $49. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.

Please Note: These calibration certificates have a typical lead time of 2-3 weeks.

Please Note: Calibration certificates cannot be returned for a refund.
$49 Go to shopping cart to select Temperature point and add to cart.
CAL EL-USB-TEMP-2 Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates

NIST traceable calibration certificate (each additional point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A.

Purchase the first point option first (CAL EL-USB-TEMP-1) for each device, and then additional points per device as required.

Choose a temperature point in the online store. Standard points are $20. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.

Please Note: These calibration certificates have a typical lead time of 2-3 weeks.

Please Note: Calibration certificates cannot be returned for a refund.
$20 Go to shopping cart to select Temperature point and add to cart.
EL-DataPad
Same Day Shipping!
Portable viewer collects and stores data from up to 500 EL-USB temperature data loggers. Learn More $199
Quantity:
*Quantity discounts (single shipment lot) for orders of 25 units (of the same model) or more: 10%.

Note: All data loggers include EasyLog EL-USB Data Logger software and one lithium battery. Other accessories may be provided depending upon the model. These products are NOT compatible with WinDaq or WinDaq/XL Software packages.

Contact Customer Support

Software

All EL-USB Data Loggers ship with EasyLog (EL-WIN-USB) software for setup and data review. Click here for software updates at Lascar Electronics (takes you to a different site).

Data Acquisition Hardware Selection Guide

data acquisition selection and data logger product screener

Try out our NEW data acquisition and data logger product screener for help choosing the right product for your application
