Oscilloscope

PC-based model DI-770 provides 5 virtual instruments in one

  • 200mV to 80V full scale measurement range
  • 5 virtual instruments in one: Voltmeter, Oscilloscope, Spectrum Analyzer, Data Logger, and Function Generator
  • Convenient USB interface
  • Two Analog input channels
  • Sample throughput rates up to 100MHz
  • Up to 16-bit measurement resolution.
Download the DI-770 Oscilloscope Data Sheet

Download the Datasheet
Download the DI-770 Oscilloscope Hardware Manual

Download the Hardware Manual

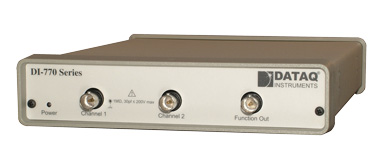

DI-770 Oscilloscope

Note: Pricing outside the U.S. will be higher to account for shipping, taxes, duty, currency fluctuation, local warranty and technical support in your country. The DI-770 Series is not supported by WinDaq Acquisition, WinDaq Playback, WinDaq/XL, or WinDaq SDK software - it is provided with WinDaq/Scope Software.

View Shopping Cart
Part Number Description Price
(US)		 DATAQ Store
DI-770-25 DI-770 oscilloscope with 25MHz throughput. Includes two 1:1 and 10:1 switchable oscilloscope probes, software, and documentation. $1395
Quantity:
DI-770-100 DI-770 oscilloscope with 100MHz throughput. Includes two 1:1 and 10:1 switchable oscilloscope probes, software, and documentation. $1595
Quantity:

Product Highlights

DATAQ Instruments' DI-770 Series Oscilloscope products provide hardware and software to support high speed data acquisition in a manner that is both price- and performance-competitive with stand-alone digital storage oscilloscopes. Two hardware versions are offered, one sampling at a maximum rate of 25 MHz and another at 100 MHz. Both hardware products are supported by WinDaq/Scope software. DI-770 hardware with supplied WinDaq/Scope software really offer five virtual instruments in one: An oscilloscope, voltmeter, spectrum analyzer, data logger, and a function/arbitrary waveform generator. These features, combined into one instrument, offer unprecedented instrumentation power, speed, and flexibility. The DI-770 oscilloscope offers two analog input channels with 8-, 12-, 14-, or 16-bit resolution depending upon sample rate. Each channel provides a 200mV to 80V full scale input range, a 128K sample record buffer, and supports a sampling rate per channel of up to 100 MHz, depending upon the model.

The DI-770 oscilloscope is provided with two 1:1 and 10:1 switchable oscilloscope probes. The product is provided in the same form factor as other DATAQ Instruments troubleshooting instruments, like the model DI-730. Package size measures L 9" × W 7.29" × H 1.52".

Flexible Performance

Used by itself or in combination with other DATAQ Instruments products, the DI-770 oscilloscope replaces conventional digital storage oscilloscopes (DSOs) that lack the DI-770's small size and direct computer compatibility. Add to this the instrument's ability to operate incrementally as a voltmeter, data logger, spectrum analyzer, and a function/arbitrary waveform generator and the instrument is solidly positioned as an alternative to multiple, bulky conventional instruments. In field maintenance and troubleshooting applications size matters, and the DI-770 oscilloscope is the smallest multi-instrument solution available.

5 Virtual Instruments in One

DI-770 Hardware coupled with the provided WinDaq/Scope Software essentially offers 5 virtual instruments: an Oscilloscope, Voltmeter, Data Logger, Spectrum Analyzer, and Function/Arbitrary Waveform Generator.

Oscilloscope Function

Oscilloscope Operation of the DI-770 Oscilloscope

  • Definable record lengths ranging from 10 to 131,060 samples.
  • Definable pre-trigger positions ranging from 0 to 100% allows you to capture events leading up to a trigger.
  • Timesaving Auto Setup feature automatically senses signal voltage level and frequency, and then sets optimal acquisition parameters.
  • Fast and easy time zoom using our unique scroll bar.
  • Time base accuracy of ±0.01%.
  • Adjustable sampling frequency to adapt to any signal frequency.
  • Selectable signal averaging allows any degree of waveform smoothing with average sizes of 1, 4, 16, 32, 64, 128, or 256 samples.
  • Waveform envelope mode highlights min/max changes over time.
  • Software selectable vertical offset and gain per channel.
  • Point-and-click trigger level, slope and hysteresis adjustments.
  • Selectable linear or quadratic interpolation smoothes waveform displays.
  • Adjustable cursors for precise time and amplitude measurements.
  • Disk storage feature allows you to store and recall reference signals to aid waveform comparison and interpretation.
  • Channel math features allow real time channel addition and subtraction.
  • Supports comment tags to mark specific on-screen events.
  • Supports color hardcopy.
  • Provided with a complete Windows help facility.

Easy to Connect and Use

The DI-770 oscilloscope features a USB 2.0 interface that is backward compatible with USB 1.1. Power is derived directly through the USB cable so no external power supply is required.

Compact Size

Measuring only L 9" × W 7.29" × H 1.52"—the same size as our DI-720 and DI-730 Series instruments—the DI-770 oscilloscope is the smallest multi-instrument solution for field maintenance and troubleshooting applications.

Stackable

The DI-770 oscilloscope can be directly mounted on any DI-720 or DI-730 Series instrument to create a system combination capable of addressing the entire industrial spectrum of voltages and frequencies.

High Resolution

8-, 12-, 14-, or 16-bit measurement resolution is possible depending upon sample rate.
