LCF450 Series

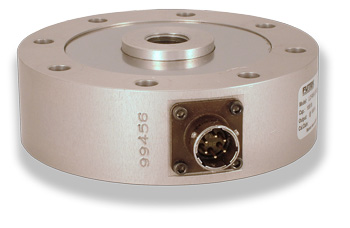

Low Profile Pancake Type Load Cell
- 500 to 10,000 lbf capacity (2225 to 44500 Newtons)
- Available in both anodized aluminum (lower capacities) and stainless steel construction
- Nonlinearity: ±0.1%
- Deflection: 0.002" to 0.005" nominal
- US and metric threads available
- 6-pin Bendix recptacle PT02A-10-6P
- Amplified and fatigue rated versions available
- Weight: 1.3 lbs (aluminum) or 3.5 lbs (steel)
- View Accessories
- For use with the DI-5B38-05 or the DI-8B38-05. Use the DI-5B38-02 or the DI-8B38-02 for limited dynamic range applications.
The LCF450 is designed for both tension and compression applications. The flexure has eight bolt-down holes along its outer diameter for easy mounting. The LCF450 series can be modified or customized to meet your requirements (contact DATAQ Customer Support for more information). This product is manufactured in the US and uses metal foil strain gauge technology.
Material | ||||||||
Capacity | Aluminum | Stainless | Thread | |||||
Buy | Part Number | Lbf | Newtons | 2024-T4 | 17-4PH | 5/8-18 | M16x2 | Connector |
Contact Us | FSH00128 | 500 | 2225 | 6 pin Bendix Receptacle, PT02A-10-6P |
||||
FSH00132 | ||||||||
FSH00143 | ||||||||
FSH00129 | 1000 | 4450 | ||||||
FSH00133 | ||||||||
FSH00145 | ||||||||
FSH00130 | 2000 | 8900 | ||||||
FSH00134 | ||||||||
FSH00135 | ||||||||
FSH00139 | ||||||||
FSH00136 | 3000 | 13350 | ||||||
FSH00140 | ||||||||
FSH00137 | 5000 | 22250 | ||||||
FSH00141 | ||||||||
FSH00138 | 10000 | 44500 | ||||||
FSH00142 |
