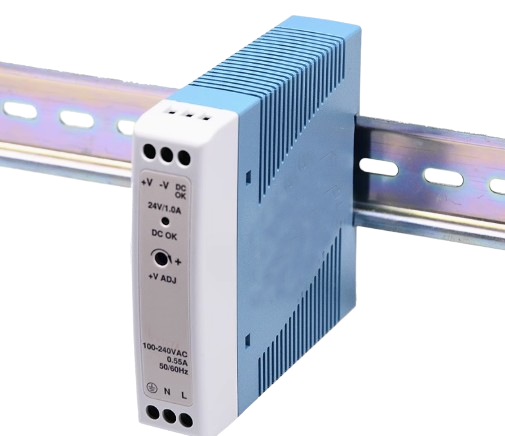

DIN-P24 Din Rail Mount 24V Power Supply Module

$35
In
Stock
Add to Cart

  • 24V, 1A Output
  • 100-240VAC Input
  • 35mm DIN Rail
  • CE Compliance
DIN-P24 24V Power Supply


Specifications

DC Output Voltage Current: 24V 1A
Wave and Noise: 150mVp-p
Adjustable DC Voltage Output Range: 10%
Inlet Stability: ±1%
Load Stability: ±1%
Efficiency: 90%
AC Input Voltage Range: 90-132VAC 180-264VAC
Setup Rise and Hold up Time: 500ms 30ms/230VAC 1000ms 30ms/115VAC
Withstand Voltage: I/P-O/P:3KvAC, I/P-FG:1.5KvAC, O/P-FG:0.5KvAC
Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ
Working Temperature and Humidity: -10℃~+60℃, 20%~90%RH
Install Rail: TS-35/735 or TS-35/15
Weight: 0.36Kg
EMC: CE Compliance

Compatible Products

2000434-10X
Current Sensor
$68
Current Sensor
  • 0-10A Input Signal
  • 4-20mA Output
  • Working Temperature -20°C ~55°C
  • 4-20mA Shunt Resistor Included
  • CE Compliance
Go to Product Page

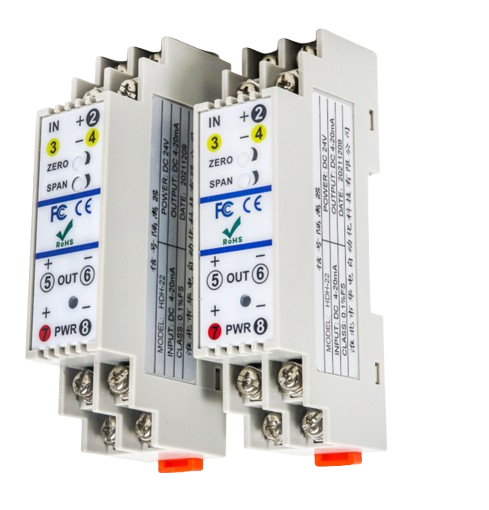

2000434-1X
Current Sensor
$68
Current Sensor
  • 0-1A Input Signal
  • 4-20mA Output
  • Working Temperature -20°C ~55°C
  • 4-20mA Shunt Resistor Included
  • CE Compliance
Go to Product Page
2000440-500X
Current Sensor
$99
Current Sensor
  • 0-500A Input Signal
  • 4-20mA Output
  • 40-60 Hz Frequency Range
  • 35 mm Aperture
  • 4-20mA Shunt Resistor Included
  • CE Compliance
Go to Product Page
2000441-150X
Current Sensor
$68
Current Sensor
  • 0-150A Input Signal
  • 4-20mA Output
  • 24V DC Power Supply
  • 4-20mA Shunt Resistor Included
  • CE Compliance
Go to Product Page

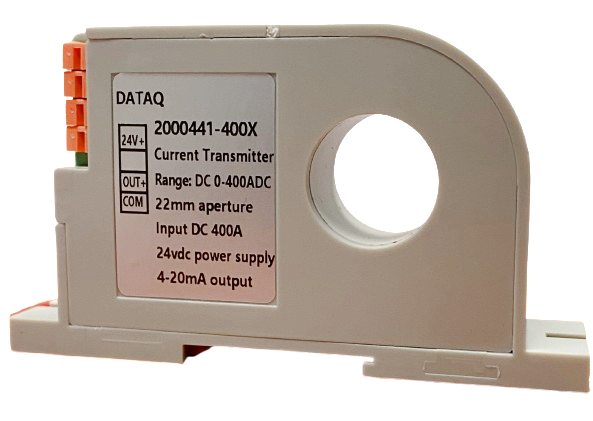

2000441-400X
Current Sensor
$79
Current Sensor
  • 0-400A Input Signal
  • 4-20mA Output
  • 22 mm Aperture
  • 4-20mA Shunt Resistor Included
  • CE Compliance
Go to Product Page
2000442-1000X
Current Sensor
$89
Current Sensor
  • 0-1000A Input Signal
  • 4-20mA Output
  • 25 mm Aperture
  • Working Temperature: -10°C ~ +70°C
  • 4-20mA Shunt Resistor Included
  • CE Compliance
Go to Product Page

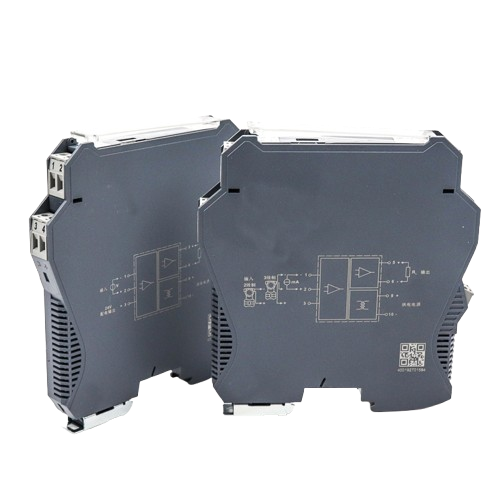

4-20mA Signal Splitter
$99
Signal Multiplexer
  • Singal splitter for 4-20 mA Sensors
  • 1 Input, 4 Out
  • Isolated Signals
  • 0-300Hz Frequency Range
  • Transmitting Accuracy ±0.1%FS
  • CE Compliance
Go to Product Page
Industrial Grade 4-20mA Output Pressure Sensors
Starting at $199
Pressure Transducer
  • 100 to 14500 PSI
  • Accuracy: 0.25%
  • 12-30V Supply
  • 4-20mA Linear Output
  • High impact resistance
Go to Product Page
