Jumping a DI-5B Module Socket

Facebooktwittergoogle_plusredditmailFacebooktwittergoogle_plusredditmail

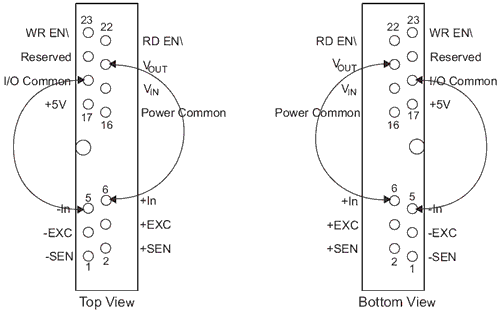

Use these pass-through connections to jumper a module socket so the channel passes through to the instrument:

  • Connect "I/O Common" to "-In"
  • Connect "Vout" to "+In"
