Model EL-USB-CO

Single Channel Data Logger Measures and stores Carbon Monoxide (CO) readings over a 0 to 1000 ppm range

$134.99
In
Stock
  • Includes an EL-USB-CO data logger, a battery (pre-installed), and downloadable software
  • PLEASE NOTE: The EL-USB-CO is a professional measuring instrument, designed to record Carbon Monoxide (CO) gas levels for later analysis. It is NOT an alarm/safety/warning device and should not be used in this capacity.
  • 0 to 1000 ppm CO measurement range
  • Stores up to 32,510 Measurements
  • User-Programmable Warning Threshold with Bright Visual and Audible Warning
  • USB Interface for Set-up and Data Download
  • Expected sensor life: 4 years
  • Replaceable Internal Lithium Battery
  • Discount Schedule
  • Get 10% off your Lascar Data Logger with coupon code EL10USB. View details.
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page

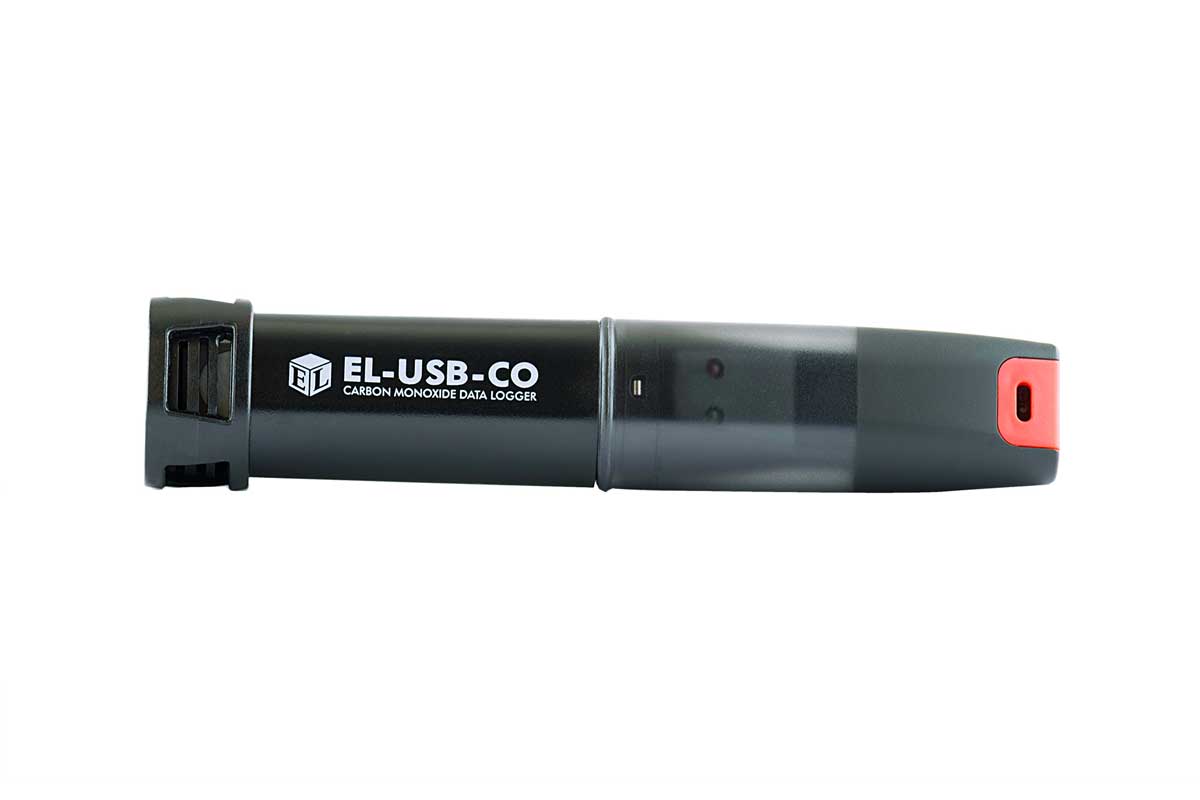

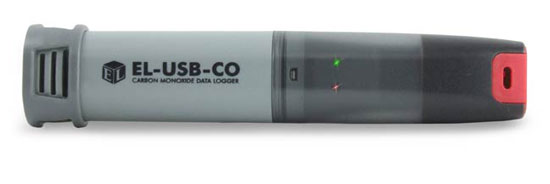

EL-USB-CO Data Logger
This data logger has a single channel.This data logger measures CO.This data logger can record up to 1 sample every 10 seconds.This data logger has a USB interface.
This data logger records data to internal memory.Get same day shipping when you order this data logger before 3PM ETThis data acquisition system has a 30-day Money back guaranteeUse coupon code EL10USB for 10% off your Lascar data logger purchase.

Description

PLEASE NOTE: The EL-USB-CO is a professional measuring instrument, designed to record Carbon Monoxide (CO) gas levels for later analysis. It is not an alarm/safety/warning device and should not be used in this capacity.

The EL-USB-CO data logger measures and stores up to 32,510 Carbon Monoxide (CO) readings over a 0 to 1000 ppm measurement range and -10 to +40°C (14 to +104°F) operating temperature range. The user can easily set up the logging rate and start time, and download the stored data by plugging the data logger into a PC’s USB port and running the purpose-designed software. The data can then be graphed, printed and exported to other applications. The data logger is supplied complete with a long life lithium battery. Data is stored in non-volatile memory and is retained when the battery is empty. A bright red LED will flash and a buzzer can sound when a preset warning level has been exceeded.

Accessories

BAT 3V6

3.6V Battery

$4.99
Lascar Data Logger Battery

Description

Replacement 3.6V, 1200mAh lithium battery. Please Note: Continental U.S. shipping ONLY.

Software

EasyLog Software

Configuration Software

FREE Configuration and download software for Lascar Data Loggers.

Lascar EasyLog Software

Specifications

Number of Channels: One
Measurement range: 3 to 1000 ppm
Internal resolution: 0.5 ppm
Accuracy (overall error): the greater of ±7 / ±6 ppm/%
Repeatability: ±2 % of reading
Decay of reading over time: 5% of reading/year
Expected sensor life: 4 years
Response time (to reach 90%): 1 minute
Logging Rate (current measurement): 1 sample every 10 seconds
1 sample every 30 seconds
1 sample every minute
1 sample every 5 minutes
Memory Capacity: 32,510 samples
Operating Temperature Range:
(15-90%RH, non-condensing)
-10 to +40°C (14 to +104°F)
Operating pressure range: 900 to 1000 mbar
Battery Life: 3 months (with battery supplied, 10 minute logging rate, 25°C ambient temperature, audible warning disabled, reading <10 ppm CO)

Videos

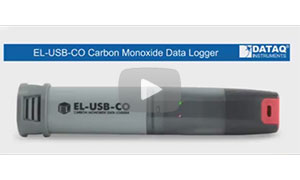

Introducing the EL-USB-CO Data Logger
Introducing the EL-USB-CO

Introducing the EL-USB-CO Low-cost USB Carbon Monoxide data logger.
EasyLog Software
EasyLog Setup

Learn how to set up Lascar Data Loggers with EasyLog Software.
EL-USB Assembly
Assembly

View the animated gif showing typical EL-USB Data Logger assembly.
