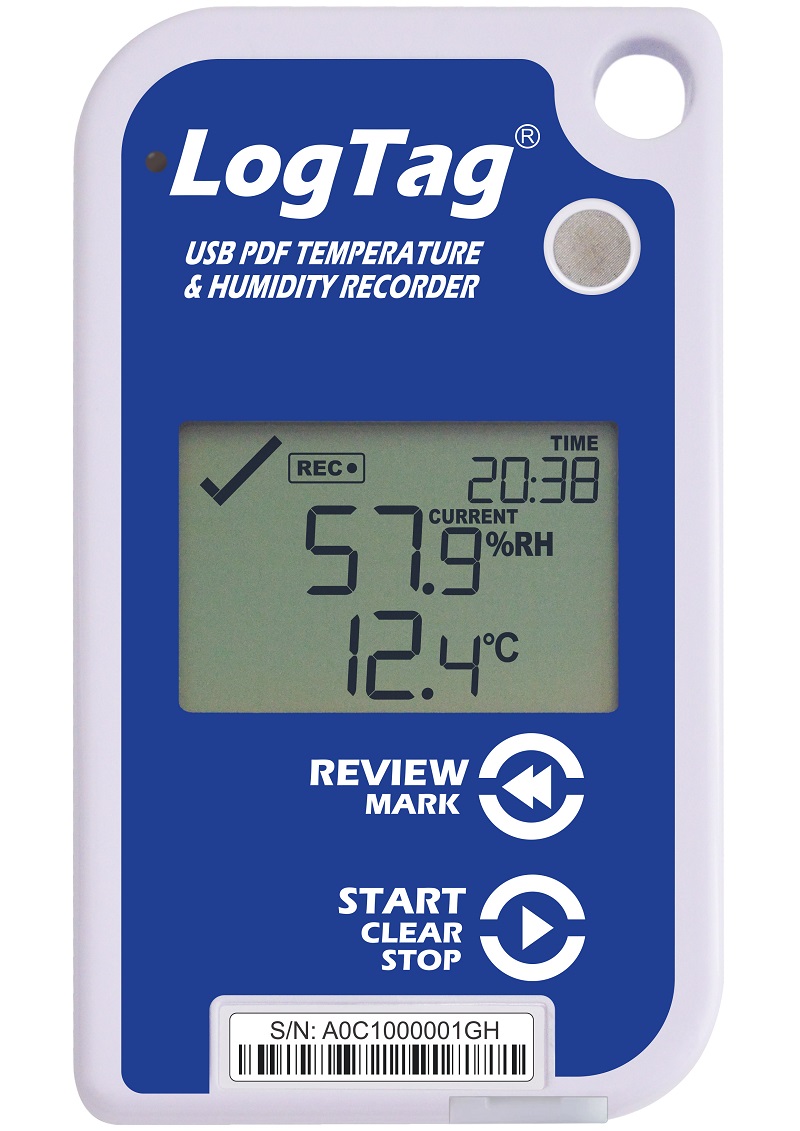

UHADO-16

Humidity and Temperature Logger -30°C to +70°C (-22°F to +158°F).

$99
In
Stock
Add to Cart
  • 0 to 100%RH and -30°C to +70°C (-22°F to +158°F). measurement range
  • 16,128 pairs of humidity and temperature readings. 112 days @ 10min logging, 168 days @ 15min logging.
  • Statistics memory for displaying maximum and minimum Temperature and RH values on the LCD.
  • Day summary statistics memory (for display on LCD): up to 30 days of Max/Min/duration and alarm trigger statistics.
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page
EL-USB-1 Data Logger

Description

UHADO-16 Humidity and Temperature Logger measures and stores up to 16,000 sets of high resolution humidity and temperature readings over a measurement range of 0 to 100%RH and -30°C to +70°C (-22°F to +158°F).

The display shows current Temperature & Humidity readings, Alarm status and Recording status.

The UHADO-16 is fitted with three contact pins so it can be used with the LogTag® LTI-USB, LTI-HID and LTI-WiFi Interface Cradles.

When the UHADO-16 is connected to a computer using the integrated USB plug, a detailed PDF report of the recorded humidity and temperature data can be automatically generated without the need for extra accessories and proprietary software.

For more detailed data analysis, the UHADO-16 also creates an encrypted data file compatible with readily available LogTag Analyzer® operating software and LogTag Online®.

Compatible Software and Programming Tools for the EL-USB-1
Software
View EL-USB-1 Accessories
Accessories
Read support articles and blog posts regarding the EL-USB-1
Articles
Watch videos for the EL-USB-1
Videos
Review EL-USB-1 Specifications
Specifications
View similar products
Similar Products

Accessories

LogTag Cradle

LT-INT-HID

$49
Add to Cart
USB Craddle to retrieve data from loggers

Description

USB Cradle to retrieve data from loggers

LT-CERT-2

Calibration Certificate

$54.00
Add to Cart
NIST Calibration Certificate

Description

Two point (-20C and +40C) calibration for LogTag loggers. Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 1-2 weeks.

Software

LogTag Analyzer

Configuration Software

LogTag® Analyzer 3 features configuration profiles, import/export of option settings, configuration and download logging and also allows configuration and download of USB loggers

Lascar EL-BT EasyLog Software
Download (app)

User Manual

LogTag Xpress

Configuration Software

LogTag® Xpress is a sophisticated alternative to the powerful LogTag® Analyzer software. With a stripped-down feature set, LogTag® Xpress focuses on efficiently configuring and downloading the complete range of LogTag® data logging products, with as little user interaction as possible.

Lascar EL-BT EasyLog Software
Download (app)

User Manual

LogTag Online

Management Software

LogTag Online is a Cloud-based online environmental management system providing alarm notifications, compliance, record storage and reporting functions.

Lascar EL-BT EasyLog Software
Download (app)

Specifications

Measurement Range: 0 to 100%RH and -30°C to +70°C (-22°F to +158°F).
Accuracy (overall error):
Better than ±0.45°C (±0.8°F) for +0°C to +50°C (+32°F to +122°F), typically ±0.3°C (0.6°F).
Better than ±0.8°C (±1.4°F) for +50°C to +80°C (+122°F to +176°F), typically ±0.5°C (0.9°F).
Better than ±0.95°C (±1.7°F) for -40°C to +0°C (-40°F to +32°F), typically ±0.6°C (1.1°F).


Better than ±3%RH for 20%RH to 80%RH, typically ±2%RH.
Better than ±5%RH for 0%RH to 20%RH, typically ±4%RH.
Better than ±5%RH for 80%RH to 100%RH, typically ±4%RH.
Recording Capacity: 16,128 pairs of humidity and temperature readings. 112 days @ 10min logging, 168 days @ 15min logging.
Sample interval
Configurable from 30 seconds to several hours. (Typically 5 minute logging).
Battery Life 1 year storage, 1 year of normal use (based on 15 minute logging, download data monthly).
Real Time Clock Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day).
