Single-Use PDF Temperature Logger -30°C to +60°C (-22°F to +140°F)

  • -30°C to +60°C (-22°F to +140°F) measurement range
  • 16000 temperature readings
  • Ideal for transportation applications
  • Built-in integrated USB connector without the need for a separate Interface Cradle
  • Data is viewable in LogTag® Online without the need for an account
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page
EL-USB-1 Data Logger

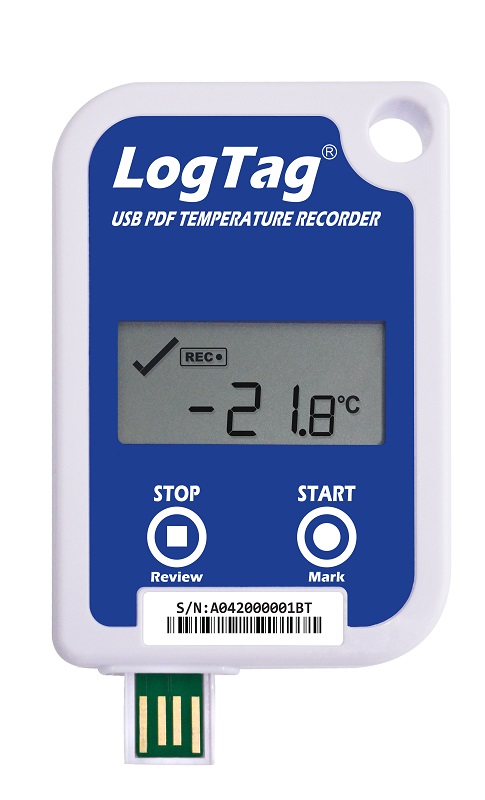

Designed as a Single-use, cost effective & reliable temperature recorder, USRID-16 measures and stores real time temperature readings over a measurement range of -30°C to +60°C (-22°F to +140°F).

The USRID-16 combines all the features of an advanced temperature recorder with a 16,000 log memory with a shelf life of up to two years before configuration (in standard hibernation mode) and a 6-month operating life in a robust and inexpensive package.

The USRID-16 plugs directly into the computer USB for easy configuration by the user for a wide range of recording and alert conditions for an upper and lower alarm. Upon download, it automatically generates a fully detailed PDF report with the option to download the data using the freely available LogTag® Analyzer software for a more detailed analysis.

The display is designed to show ‘at a glance’ if there has been a temperature excursion.



LogTag Analyzer

Configuration Software

LogTag® Analyzer 3 features configuration profiles, import/export of option settings, configuration and download logging and also allows configuration and download of USB loggers

Lascar EL-BT EasyLog Software

LogTag Xpress

Configuration Software

LogTag® Xpress is a sophisticated alternative to the powerful LogTag® Analyzer software. With a stripped-down feature set, LogTag® Xpress focuses on efficiently configuring and downloading the complete range of LogTag® data logging products, with as little user interaction as possible.

Lascar EL-BT EasyLog Software

LogTag Online

Management Software

LogTag Online is a Cloud-based online environmental management system providing alarm notifications, compliance, record storage and reporting functions.

Lascar EL-BT EasyLog Software


Measurement Range: -30°C to +60°C (-22°F to +140°F)
Accuracy (overall error):
Better than ±0.5°C for -5°C to +30°C (23°F to +86°F).
Better than ±0.8°C or better for measurements in other areas of rated range.
Recording Capacity: 16,129 pairs of humidity and temperature readings. 56 days @ 5min logging..
Sample interval
Configurable from 30 seconds to several hours. (Typically 5 minute logging).
Battery Life 2 years storage, followed by 6 months of operation life.
Real Time Clock Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day).
Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C).
