EasyLog EL-USB Data Logger Series Overview

Low-cost, compact, battery-operated data loggers

Product Features

  • Programmable high and low alarm thresholds.
  • All data is recorded to built-in, non-volatile memory (except the EL-USB-RT). EasyLog EL-USB data loggers do not lose readings when the battery is discharged or replaced.
  • Automatic time and date stamping of logged data.
  • Program the logger to begin recording immediately, or at a specific date and time.
  • Bright, multi-color LEDs indicate status and alarm conditions during logging.
  • Built-in USB interface for easy setup using any PC.
  • Built-in, replaceable lithium battery (provided).
  • Intrinsic isolation for voltage and current measurements.
  • Removable cover protects the USB interface.
  • Removable clip secures the instrument during transport or deployment.
  • EasyLog EL-USB application software for data logger setup, data download, and analysis.

EasyLog model EL-USB series products are a line of low cost, compact, battery-operated data loggers with built-in memory and USB interface. Each product in the line offers a specific measurement function and range (see table).

Products in the Series

EL-USB-1-LCD Stand-alone Temperature Data Logger
  • Environmental -35 to +80°C (-31 to +176°F)
  • ±1 °C (±2 °F) overall accuracy
  • Battery-operated
  • 45-hr to 2-year record times
  • LCD display
$81.50
Qty:
EL-USB-1-PRO Stand-alone Temperature Data Logger
  • Environmental -40°C to +125°C (-40°F to +257°F)
  • Battery-operated
  • 9-hr to >2-year record times
  • Extra protection from corrosion, impact and water ingress
$150.00
Qty:
EL-USB-1-RCG Stand-alone Temperature Data Logger
  • Environmental -20°C to +60°C (-4°F to +140°F)
  • Battery-operated
  • 45-hr to >2-year record times
  • Stainless steel case
  • Time and date stamps all data
$132.00
Qty:
EL-USB-1 Stand-alone Temperature Data Logger
  • Environmental -35 to +80°C (-31 to +176°F)
  • ±1 °C (±2 °F) overall accuracy
  • Battery-operated
  • 45-hr to 2-year record times
  • Time and date stamps all data
$59.95
Qty:
EL-USB-2-LCD Stand-alone Temperature and RH Data Logger
  • Environmental -35°C to +80°C (-31°F to +176°F), 0 to 100% RH
  • ±0.5°C (±1°F), ±3% RH accuracy
  • Battery-operated
  • 45-hour to >2-year record times
  • Time and date stamps all data
$99.00
Qty:
EL-USB-2-LCD+ High Accuracy Stand-alone Temperature and RH Data Logger
  • Environmental -35°C to +80°C (-31°F to +176°F), 0 to 100%
  • ±0.3°C (±0.6°F), ±2% RH overall accuracy
  • Battery-operated
  • 45-hour to >2-year record times
$126.50
Qty:
EL-USB-2 Stand-alone Temperature and RH Data Logger
  • Environmental -35°C to +80°C (-31°F to +176°F), 0 to 100% RH
  • ±0.5°C (±1°F), ±3% RH accuracy
  • Battery-operated
  • 45-hour to >2-year record times
  • Time and date stamps all data
$82.00
Qty:
EL-USB-2+ High Accuracy Stand-alone Temperature and RH Data Logger
  • Environmental -35°C to +80°C (-31°F to +176°F), 0 to 100%
  • ±0.3°C (±0.6°F), ±2% RH overall accuracy
  • Battery-operated
  • 45-hour to >2-year record times
$112.00
Qty:
EL-USB-3 Stand-alone Voltage Data Logger
  • 0 to 30VDC
  • Battery-operated
  • 9-hour to >2-year record times
  • Includes a set of alligator clips
  • Powered by a standard lithium battery
  • Inherently isolated (battery-operated)
  • Includes test leads w/alligator clips
$80.00
Qty:
EL-USB-4 Stand-alone Current Data Logger
  • 4-20mA measurement range
  • Long-life lithium battery-operated
  • 9-hours to >2-year record time
  • Time and date stamps all data
  • Easy export to Excel
  • Includes a set of alligator clips
  • Ready to go…nothing else to buy
$80.00
Qty:
EL-USB-5 Stand-alone Current Data Logger
  • Measures when, how long, and how many events occur
  • Dry contact or voltage input
  • Long-life lithium battery-operated
  • Easy export to Excel
  • 9-hour to >2-year record times
$83.50
Qty:
EL-USB-ACT Stand-alone AC/DC Current Data Logger
  • Isolated dc and true rms measurements
  • Uses two standard "AA" batteries (included)
  • 35-hr to years of record time
  • Supports current clamps and shunts
$150.00
Qty:
EL-USB-CO Stand-alone Carbon Monoxide Data Logger
  • Environmental 0 to 1000 ppm CO
  • Long-life lithium battery-operated
  • 90-hour to 3.5-month record times
  • Easy export to Excel
  • Four year sensor life
  • Ready to go…nothing else to buy
$125.00
Qty:
EL-USB-Lite Stand-alone Temperature Data Logger
  • Environmental -10 to +50 °C (+14 to +122 °F)
  • ±1 °C (±2 °F) overall accuracy
  • Battery-operated
  • 1 month record time
  • Time and date stamps all data
$32.00
Qty:
EL-USB-RT USB Ambient Temp/RH Data Logger
  • Environmental -20 to 70°C (-4 to 158°F)
  • Environmental 0 to 100% RH
  • ±1.5 °C (±3°F) temperature accuracy
  • ±4.5% RH accuracy
  • PC-connected device
$75.00
Qty:
EL-USB-TC-LCD Stand-alone Thermocouple Data Logger
  • -200°C to +1300°C (-328°F to +2372°F)
  • Supports TC-types J, K and T
  • Battery-operated
  • 9-hour to >2-year record times
  • Included K-type thermocouple probe
$102.00
Qty:
EL-USB-TC Stand-alone Thermocouple Data Logger
  • -200°C to +1300°C (-328°F to +2372°F)
  • Accepts TC-types J, K and T
  • Battery-operated
  • 9-hour to >2-year record times
  • Included K-type thermocouple probe
$85.00
Qty:
EL-USB-TP-LCD Stand-alone Temperature Data Logger
  • -40°C to +125°C (-40°F to +257°F)
  • Battery-operated
  • 9-hour to >2-year record times
  • LCD display
  • Included 1-meter thermistor probe
  • Time and date stamps all data
$102.00
Qty:
EL-USB-TP-LCD+ Stand-alone Temperature Data Logger
  • -40°C to +125°C (-40°F to +257°F)
  • Battery-operated
  • 9-hour to >2-year record times
  • LCD display
  • Included 3-meter thermistor probe
  • Time and date stamps all data
$125.00
Qty:

Description

EasyLog EL-USB Products for Any Application

From temperature and humidity to carbon monoxide trending, there's an EasyLog EL-USB data logger that's right for you:

Measurement Model EL-USB
Function Range -LITE -1 -1-LCD -1-RCG -1-PRO -2 -2+ -2-LCD -2-LCD+ -3 -4 -5 -ACT -TC -TC-LCD -TP-LCD -CO -RT
Temperature -10 to +50°C
(+14 to +122°F)
EL-USB-LITE Data Logger
Temperature -35 to +80°C
(-31 to +176°F)
  EL-USB-1 Data Logger  checkmark
Temperature -20 to +60°C
(-4 to +140°F)
      EL-USB-1 Data Logger
Temperature -40 to +125°C
(-40 to +257°F)
        EL-USB-1-PRO Data Logger                     EL-USB-1-PRO Data Logger
Humidity
temperature, dew point
0 to 100% RH
-35 to +80°C
(-31 to +176°F)
          EL-USB-2 Data Logger* EL-USB-2+ Data Logger*

EL-USB-2-LCD Data Logger*

EL-USB-2-LCD+ Data Logger*
Voltage 0 to 30 VDC                    EL-USB-3 Data Logger
Process current 4 to 20 mA                      EL-USB-4 Data Logger
Event, State, Count 3-28 VDC                       EL-USB-4 Data Logger
Current -1000 to 1000 mV                          checkmark
Thermocouple
(no display)
-130 to +900°C (J)
-200 to +1300°C (K)
-200 to +350°C (T)
                           EL-USB-TC Data Logger
Thermocouple
(with display)
-100 to +900°C (J)
-200 to +1300°C (K)
-200 to +400°C (T)
                            EL-USB-TC-LCD Data Logger
Carbon monoxide 0 to 1000 ppm                                  EL-USB-CO Data Logger
PC connected Temperature, Humidity, Dew point
(Learn more)
0 to 100% RH
-20 to +70°C
(-4 to +158°F)
                                   EL-USB-RT Data Logger

*EL-USB-2+ provides higher accuracy measurements than the EL-USB-2 and the EL-USB-2-LCD.

Easy to Program and Deploy

Getting an EasyLog EL-USB Data Logger product ready to acquire data is simple:

  1. Remove the protective USB cover.
  2. Plug the instrument into any convenient USB port.
    EL-USB-1 Data Logger in USB port

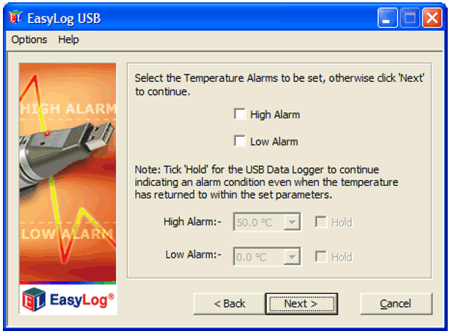

  3. Program the data logger with the provided EasyLog EL-USB software:
    • Give the logger a unique name (convenient when deploying multiple units).
    • Select the required sample rate.
    • Select high and/or low alarm thresholds.
    • Select the specific date and time to begin logging.

EasyLog EL-USB Data Logger Configuration Software

Now remove the data logger from the USB port, replace the USB cover, and deploy the instrument wherever you need it.

Easy to Upload and Analyze Data

Whether you want to review stored data using the supplied application or using Microsoft Excel, getting meaningful results from recorded data is fast and easy:

EL-USB Data Logger Software Screenshot csv file

  1. Remove the protective USB cover.
  2. Plug the instrument back into the PC's USB port.
  3. Use EasyLog EL-USB software to stop recording, access the instrument's stored data, and save it to a file that you name on the PC, all in one easy operation. The file format is Excel-compatible.
  4. Immediately EasyLog's EL-USB Graph utility is enabled to display all the stored data in one compressed view.
  5. A cursor allows you to determine signal magnitude and time and date of acquisition for any value, and a magnifier utility allows you to zoom in for a closer look over any range — Easy and fast.
  6. For more custom analysis and report generation, simply import the stored data file to Microsoft Excel for virtually unlimited flexibility in how you view and interpret your results.

EL-USB Data Logger Software export to Excel screenshot

EL-DataPad

EL-DataPad for EL-USB Data LoggersThe EL-DataPad allows users of EL-USB temperature data loggers to configure their units, upload data, and view logging results on-the-spot rather than moving the logger to their PC. This allows shorter breaks in data collection for more data continuity, less travel time, and on-the-spot data review and data logger reconfiguration. Features include:

Learn more about the EL-DataPad
