B-530 Humidity Sensor for Graphtec Data Loggers

Measures 0 to 100% Relative Humidity

Connect the B-530 humidity sensor to any GL240, GL260, GL840, GL860, or GL900 for humidity measurements.

• Measures 0 to 100% RH
• Accuracy of ±3% RH at 25°C
• 3 meter length (9.84 feet)
• Power the B-530 via the data logger's 5V power supply
• Connects to any available analog voltage channel on the data logger

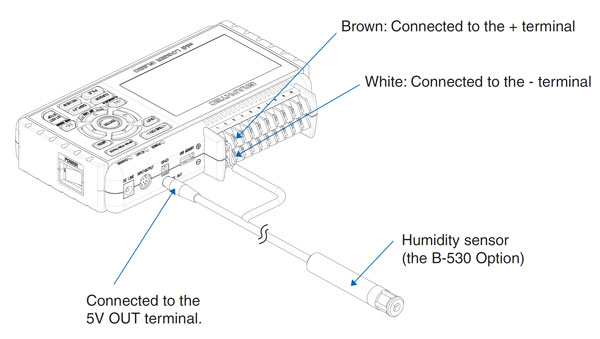

With a 3 meter cable, the B-530 is powered via the data loggers 5V supply and connects to an available analog voltage channel.

Specifications

Item	Description
Allowable temperature range	-25 to +80°C
Allowable humidity range	0 to 100% RH
Relative humidity measurement accuracy	±3% RH (5 to 98% RH at 25°C)
Method	Capacitance method
Relative humidity measurement accuracy (5-98%)	Measurement Environment Measurement Accuracy 0-10°C ±5% RH 10-20°C ±4% RH 20-30°C ±3% RH 30-40°C ±4% RH 40-50°C ±5% RH 50-60°C ±6% RH 60-70°C ±7% RH 70-80°C ±8% RH
Response time	15 seconds (90% response with membrane filter installed
Sensor output	0 to 1 VDC
Sensor power	+5 to +16 VDC
Consumption current	Approx. 4mA
External dimensions	14mm × 18mm (excluding cable)
Cable length	3 meters
