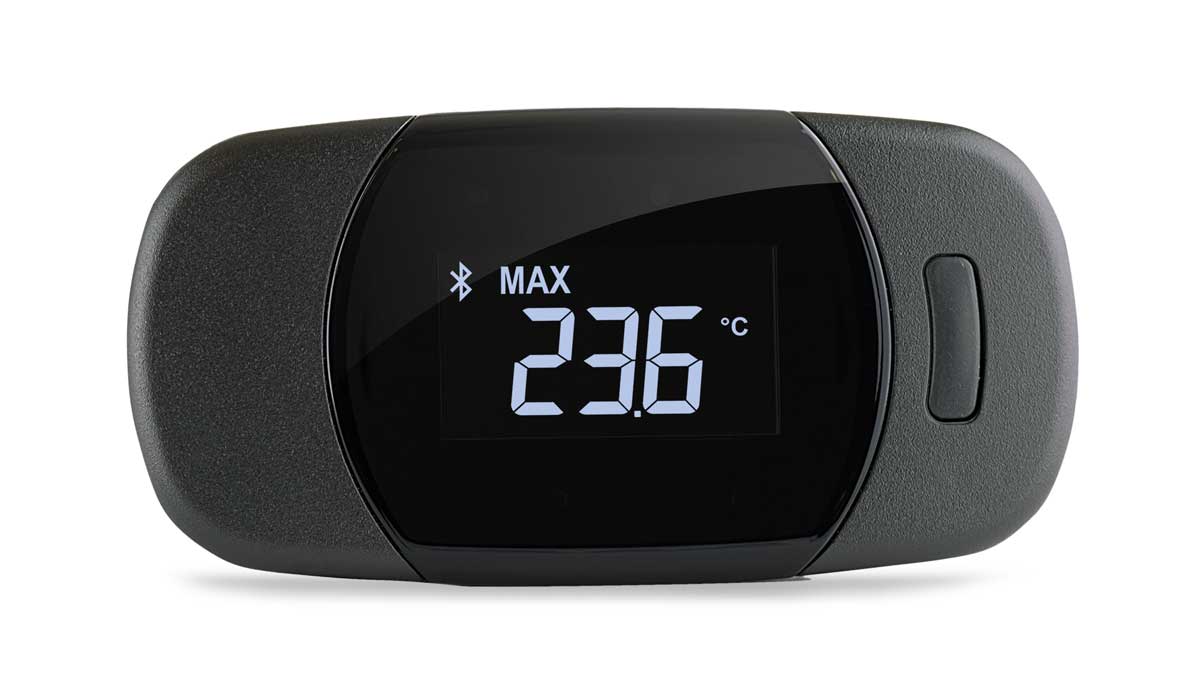

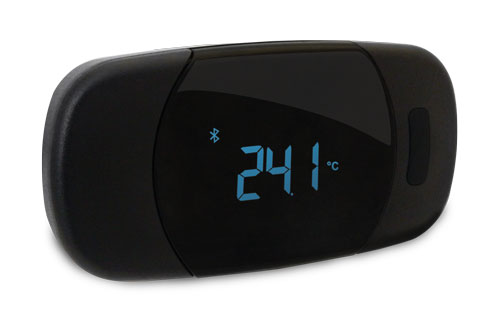

Model EL-BT-2

Bluetooth-enabled Temperature and Humidity Data Logger measures -20 to +60°C (-4 to +140°F) and 0 to 100% RH

$186.99
In
Stock
  • Includes an EL-BT-2 data logger, USB cable, wall-mount, and downloadable software (CALIBRATION CERTIFICATE sold separately under ACCESSORIES tab and must be ordered at time of purchase)
  • Hands-free, Bluetooth-enabled data logger measures ambient temperature and humidity
  • Built-in humidity sensor measures 0 to +100%RH
  • Built-in temperature sensor measures -20 to +60°C (-4 to +140°F)
  • Built-in high contrast display
  • IP55 construction (dust- and water-tight)
  • Programmable alarm thresholds for both temperature and humidity
  • Built-in rechargeable battery provides up to 6 months of service on a single charge
  • Deep 500,000-sample memory for long, unattended recordings
  • Automatically time and date stamps acquired data
  • Free app for Android™ smart phones and tablets supports logger setup, data download, and display
  • Discount Schedule
  • Get 10% off your Lascar Data Logger with coupon code EL10USB. View details.
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page
EL-BT-2 Data Logger
This data logger has one degree of resolution.This data logger has a single channel.This device measures -20 to +60°C (-4 to +140°F).This data logger measures temperature and humidity.This data logger can record one sample every 10 seconds.
This data logger has a USB interface.This data logger records data to internal memory.Get same day shipping when you order this data logger before 3PM ETThis data acquisition system has a 30-day Money back guaranteeUse coupon code EL10USB for 10% off your Lascar data logger purchase.

Description

Model EL-BT-2 Bluetooth-enabled temperature and humidity data logger fills the convenience gap between stand-alone USB and WiFi data loggers. It maintains the simplicity of the manual USB approach while providing many of the automated benefits of WiFi without the IT network deployment hassles. The Bluetooth interface provides a handy approach to instantly configure and retrieve data from the logger using a smart device while in the logger's proximity (up to around 30 feet.) A free Android™ app installed on a compatible smart device provides all the software you need to detect, configure, and archive data from one or more EL-BT-2 instruments.

Model EL-BT-2 also has a built-in display and a front-panel control button that gives you a handle on operation and performance without a Bluetooth device. Pressing the control button activates the display. Successive depressions cycle between real time and minimum and maximum recorded temperature and RH values. Bluetooth connection and battery charge status are also shown. Finally, a red and green LED shows alarm and recording states at a glance. The EL-BT-2's internal battery delivers up to six months of operation on a single charge, and can be recharged.

Accessories

101085

AC Power Supply

$19.00
AC power supply

Description

Optional AC power supply (USB to AC) for stand-alone applications and charging EL-WiFi Series products. Includes US adapter.

101017-RPA

US Power Adapter

$4.00
US Power Adapter

Description

Spare US Adapter for AC power supply 101017-2 and 101085.

101017-RPE

EU Power Adapter

$4.00
European Power Adapter

Description

Spare European Adapter for AC power supply 101017-2 and 101085.

101017-RPK

UK Power Adapter

$4.00
UK Power Adapter

Description

Spare UK Adapter for AC power supply 101017-2 and 101085.

101017-RPS

Australian Power Adapter

$4.00
Australian Power Adapter

Description

Spare Australian Adapter for AC power supply 101017-2 and 101085.

CAL EL-USB-TEMP/RH-1

Calibration Certificate (1st Cal Value)

$90.00

Select Temperature Point:

Temperature Calibration Certificate

Description

Before purchasing please read the blog post Lascar Data Logger Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase this first point option first for each device, and then additional points per device as required. Standard points are $90. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.

CAL EL-USB-TEMP/RH-2

Calibration Certificate (2nd Cal Value)

$25.00

Select Temperature Point:

Temperature Calibration Certificate

Description

Before purchasing please read the blog post Lascar Data Logger Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase the first point option first (CAL EL-USB-TEMP/RH-1) for each device, and then additional points per device as required. Standard points are $25. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.

Software

EasyLog BT Software

Configuration Software

FREE Android configuration and download App on Google Play.

Lascar EL-BT EasyLog Software

Specifications

Temperature
Measurement Range: -35 to +60°C (-4 to +140°F)
Internal Resolution: 0.1°
Accuracy (overall error): Typical: ±0.4°C (±0.7°F)
Relative Humidity
Measurement Range: 0-100%
Resolution: ±0.1 %RH
Accuracy: ±2.0 %RH typical
General
Logging Rate: 1 sample every 10 seconds
1 sample every 15 seconds
1 sample every 20 seconds
1 sample every 30 seconds
1 sample every 1 minutes
1 sample every 2 minutes
1 sample every 5 minutes
1 sample every 10 minutes
1 sample every 15 minutes
1 sample every 20 minutes
1 sample every 30 minutes
1 sample every 1 hour
Memory Capacity: 500,000 samples
Operating Temperature Range: -20 to +60°C (-4 to +140°F)
Battery Life 6 months (at 25°C in power save mode)
Dimensions: 102 × 51 × 20mm (4.01 × 2 × 0.78 in)
Environmental protection: IP55
EasyLog BT app for Android: Version 4.0 (Ice Cream Sandwich) and later
Connection Distance: Class 2 Radio 10m (30 ft)
