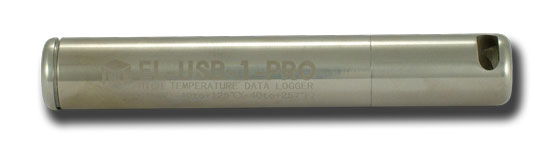

330-668-1444Model EL-USB-1-PRO
Single Channel Data Logger Measures Temperatures from -40°C to +125°C (-40°F to +257°F)
Stock
- Includes an EL-USB-1-PRO data logger, a high-temperature battery (pre-installed), and downloadable software (CALIBRATION CERTIFICATE sold separately under ACCESSORIES tab and must be ordered at time of purchase)
- -40 to +125°C (-40 to +257°F) measurement range.
- Stainless Steel case provides extra protection from corrosion, impact and water ingress
- USB Interface for Set-up and Data Download
- User-Programmable Alarm Thresholds
- Immediate and Delayed Logging
- Replaceable high capacity internal Lithium Battery
- IP 67 Protection (totally protected against dust; protected against liquid immersion up to 1m)
- Discount Schedule
- Get 10% off your Lascar Data Logger with coupon code EL10USB. View details.
Share
Description

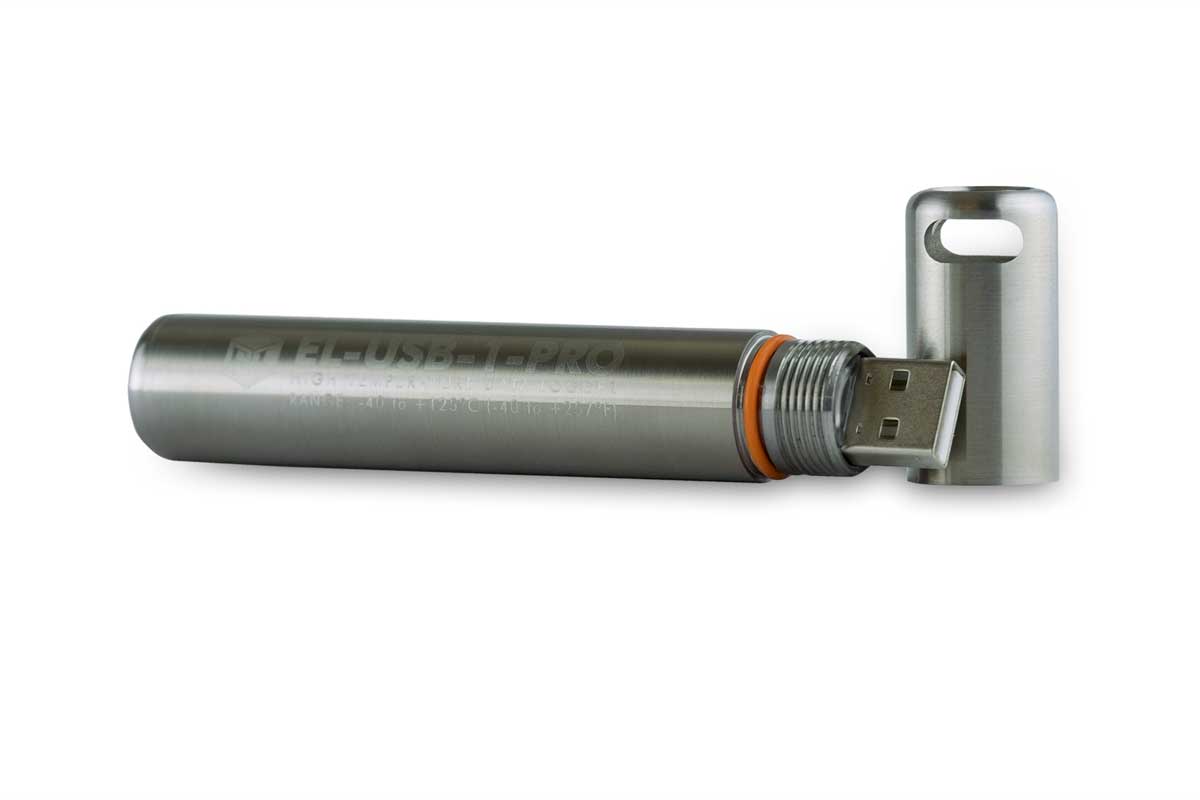

The EL-USB-1-PRO data logger measures and stores up to 32,510 temperature readings over a -40 to +125ºC (-40 to +257ºF) measurement range. The stainless steel 316 assembly provides protection from corrosion, impact and water ingress to IP67/NEMA 4X. The unit is powered by a 2/3AA 3.6V lithium battery which allows logging for up to 3 years. Setup and downloading is completed by plugging the data logger into a PC’s USB port and running the purpose-designed software. Downloaded data can then be graphed, printed and exported to other applications.
Accessories
Description

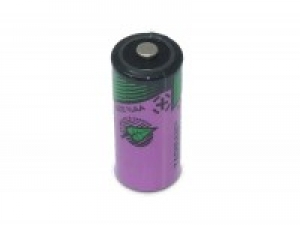

Replacement 3.6V battery, for EL-USB-1-PRO data logger. Please Note: Continental U.S. shipping ONLY.
Description

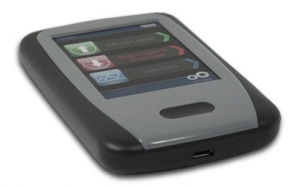

Portable, hand-held viewer with 2.8 inch touch screen full color display for EL-USB temperature data loggers. Includes EL-DataPad, micro USB cable, software on CD, and Quick Start Guide. Learn more.
CAL EL-USB-TEMP-1
Calibration Certificate (1st Cal Value)
Description
Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase this first point option first for each device, and then additional points per device as required. Standard points are $40. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.
CAL EL-USB-TEMP-2
Calibration Certificate (2nd Cal Value)
Description
Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase the first point option first (CAL EL-USB-TEMP-1) for each device, and then additional points per device as required. Standard points are $25. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.
Software
EasyLog Software
Configuration Software
FREE Configuration and download software for Lascar Data Loggers.
Specifications
| Number of Channels: | One |
| Measurement Range: | -40 to +125°C (-40 to +257°F) |
| Internal Resolution: | 0.1° |
| Accuracy (overall error): | Typical (between 0 and 40°C): ±0.2°C (±0.4°F) Max: ±0.5°C (±1°F) |
| Logging Rate: | 1 sample every second 1 sample every 10 seconds 1 sample every minute 1 sample every 5 minutes 1 sample every 30 minutes 1 sample every hour 1 sample every 6 hours 1 sample every 12 hours |
| Memory Capacity: | 32,510 samples |
| Operating Temperature Range: | -40 to +125°C (-40 to +257°F) |
| Battery Life | 1 year (@ -20 °C and 1s logging interval) |
Videos
EL-DataPad Setup
Learn how to set up and configure your EL-USB data logger with the Optional EL-DataPad.
