Model EL-USB-ACT

Single Channel Data Logger Compatible with AC or DC current clamps, current transformers, and current shunts

$164.99
In
Stock
  • Includes an EL-USB-ACT data logger, 2 batteries (pre-installed), and downloadable software
  • Compatible with AC or DC current clamps, current transformers, and current shunts
  • True RMS conversions for AC measurements
  • Sample intervals from 1s to 12hrs
  • Stores up to 127,000 readings
  • USB interface
  • Programmable alarms
  • High contrast LCD display
  • Included EL-Win-USB software for set-up and data analysis
  • Powered by two replaceable standard AA batteries
  • Discount Schedule
  • Get 10% off your Lascar Data Logger with coupon code EL10USB. View details.
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page

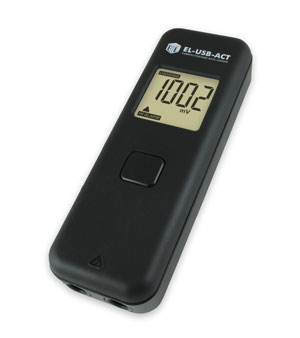

EL-USB-ACT Data Logger
This data logger has a single channel.This device measures true RMS.This data logger can record up to 1 sample per second.This data logger has a USB interface.
This data logger records data to internal memory.Get same day shipping when you order this data logger before 3PM ETThis data acquisition system has a 30-day Money back guaranteeUse coupon code EL10USB for 10% off your Lascar data logger purchase.

Description

The EL-USB-ACT is an inexpensive stand-alone data logger, capable of taking current readings between 0 to 1000 amp DC (0 to 723 amps RMS). The logger can be used with a compatible current clamp (not included), a current transformer, a Hall Effect current sensor or connected across a shunt. All AC measurements are converted to true rms. With a storage capacity of 127,000 readings and sample intervals ranging from 1 second to 12 hours, the EL-USB-ACT can log current data, uninterrupted, for up to 6 months.

The included EL-Win-USB software allows the EL-USB-ACT to be configured to log AC/DC current, power and energy data (user defined voltage values are used to calculate power and cumulative energy), or voltage. In addition, user defined alarms can be set, triggering a high/low alarm indicator on the high-contrast LCD display when current or voltage values rise above or fall below specified levels. The included EL-Win-USB software allows the EL-USB-ACT to be configured to log AC/DC current, power and energy data (user-defined voltage values are used to calculate power and cumulative energy), or voltage (DC or true RMS).

Stored data can be downloaded from the EL-USB-ACT via USB to your PC hard drive. Once downloaded, the included EasyLogGraph software allows data to be graphed, printed or saved in.xls format, for viewing in Microsoft Excel.

Accessories

100933-0

Banana Plugs

$9.50
Black shrouded banana plugs - both ends - silicone

Description

BLACK shrouded banana plugs - both ends - silicone.

100933-2

Banana Plugs

$9.50
Red shrouded banana plugs - both ends - silicone

Description

RED shrouded banana plugs - both ends - silicone.

100935-0

Right-angle Plunger Hook

$5.00
Black right angle insulated plunger hook clip

Description

BLACK Right angle insulated plunger hook clip.

100935-2

Right-angle Plunger Hook

$5.00
Red right angle insulated plunger hook clip

Description

RED Right angle insulated plunger hook clip.

100936-0

Banana Coupler

$4.50
Black 4mm insulated banana coupler

Description

BLACK 4mm insulated banana coupler.

100936-2

Banana Coupler

$4.50
Red 4mm insulated banana coupler

Description

RED 4mm insulated banana coupler.

Software

EasyLog Software

Configuration Software

FREE Configuration and download software for Lascar Data Loggers.

Lascar EasyLog Software

Specifications

Number of Channels: One
Measurement range (a.c.): 0 to 707 mV a.c. RMS
Equivalent clamp measurement range (a.c.): 0 to 723 A a.c.
Accuracy (a.c.): 5% (±2 count)
Frequency: 100 Hz
Measurement range (d.c.): -1000 to 1000 mV d.c.
Equivalent clamp measurement range (d.c.): 0 to 1000 A d.c.
Accuracy (d.c.): 2% (±1 count)
Measurement resolution: 1mV
Display resolution: 1mV (Display resolution will change, depending on the number of digits in use. The display will auto range to make the best use of available space).
Logging Rate (current measurement): 1 sample every second
1 sample every 10 seconds
1 sample every minute
1 sample every 5 minutes
1 sample every 30 minutes
1 sample every hour
1 sample every 6 hours
1 sample every 12 hours
Logging Rate (energy measurement): 1 sample every second
1 sample every minute
Memory Capacity: 127,000 samples
Operating Temperature Range: -10 to +50°C (14 to +122°F)
Battery Life 6 months (Depending on sample rate, ambient temperature and use of LCD)

Videos

EasyLog Software
EasyLog Setup

Learn how to set up Lascar Data Loggers with EasyLog Software.

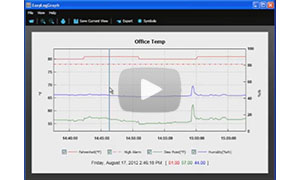

Reviewing EL-USB Recorded Data
EL-USB Data

Learn how to review recorded data on your EL-USB Data Logger.
