- -40°C to +85°C (-40°F to +185°F) measurement range
- 8000 temperature readings
- Ideal for transportation applications
- WHO PQS Pre-qualified under E06/06: PQS CODE E006/00
- Needs USB Cradle to download and setup
Share
Description

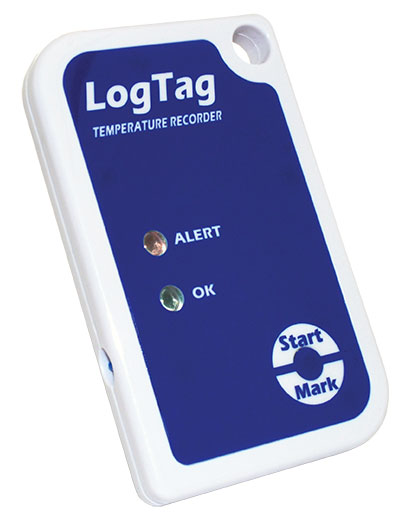

The LogTag® TRIX-8 is a versatile, wide range, multi-trip Temperature Logger, featuring high-resolution temperature readings over a measurement range of -40°C to +85°C (-40°F to +185°F). Enclosed in a robust and durable polycarbonate case, the TRIX-8 features a real-time clock, which provides date/time stamps for each temperature reading.
Using the LogTag® Interface and the freely available companion software LogTag Analyzer, the LogTag® is easily set-up for recording conditions including delayed start, sampling interval, number of readings, continuous or fixed number of readings and configuration of conditions to activate the ALERT indicator. Readings are downloaded using LogTag® Analyzer, which provides facilities for charting, zooming, listing data statistics and allows exporting the data to other applications such as Excel.
The LogTag® TRIX-8 complies with the relevant international standards for temperature monitoring devices, such as FCC, CE, C-TICK, TÜV, EN12830, WHO PQS and RoHS. This not only demonstrates the quality of the LogTag® TRIX-8, but underlines its suitability for temperature monitoring applications where accuracy and consistency are required.
Accessories
Description
Two point (-20C and +40C) calibration for LogTag loggers. Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 1-2 weeks.
Software
LogTag Analyzer
Configuration Software
LogTag® Analyzer 3 features configuration profiles, import/export of option settings, configuration and download logging and also allows configuration and download of USB loggers
LogTag Xpress
Configuration Software
LogTag® Xpress is a sophisticated alternative to the powerful LogTag® Analyzer software. With a stripped-down feature set, LogTag® Xpress focuses on efficiently configuring and downloading the complete range of LogTag® data logging products, with as little user interaction as possible.
LogTag Online
Management Software
LogTag Online is a Cloud-based online environmental management system providing alarm notifications, compliance, record storage and reporting functions.
Specifications
| Measurement Range: | -40°C to +85°C (-40°F to +185°F) | |
| Accuracy (overall error): |
|
|
| Recording Capacity: | 8031 temperature readings. 53 days @ 10min logging, 80 days @ 15min logging. | |
| Sample interval |
|
|
| Battery Life | 1 year storage, followed by 2 – 3 years of normal use (based on 15 minute logging, download data monthly). | |
| Real Time Clock | Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C). |
