X Controls

Digital Components are a collection of 11 ActiveX components intended for the display or input of digital-based data. Each component is designed for high-speed and robustness. All components include double, triple, or quadruple-buffering to improve display performance with a low impact on processor usage. These components are included in the Instrument Pack and Professional Pack Products.

LED Round & LED Rectangle | Seven Segment Integer/Binary/Hexadecimal/Clock/Character
LED Switch | Slider Switch | Toggle Switch | Rotary Switch

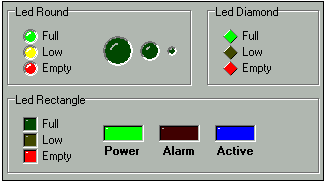

LED Round & LED Rectangle

The LED Round and LED Rectangle controls are LEDs with a None, Raised, or Lowered Bevel Style. The LED inactive (OFF) color is automatically calculated.

Return to XControls Instrument Pack Page or Professional Pack Page.


Seven Segment Integer, Binary, Hexadecimal, Clock, and Character

The Seven Segment Integer control is a seven-segment display used for displaying Integer values. If the Value overflows the display in the positive direction, then up arrows will be shown. If the Value overflows the display in the negative direction, then down arrows will be shown.

The Seven Segment Binary control is a seven-segment display used for displaying binary values. The value property is of String type to support greater than 31 digits. If the Value overflows the display, then up arrows will be shown.

The Seven Segment Hexadecimal control is a seven-segment display used for displaying hexadecimal values. The value property is of String type to support greater than 4 digits. If the Value overflows the display, then up arrows will be shown.

The Seven Segment Clock control is a seven-segment display used for displaying time values. Supports both 12 and 24 hour display mode.

The Seven Segment Character control is a basic seven-segment character display. Supports 0-9, A-F, and several special characters.

Return to XControls Instrument Pack Page or Professional Pack Page.


LED Switch

The LED Switch control is a binary switch with a rectangle LED indicator. If the LED is on, then the Active property is True. If the LED is off, the Active property is false.

Return to XControls Instrument Pack Page or Professional Pack Page.

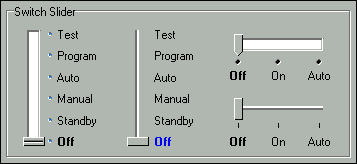

Slider Switch

The Slider Switch control is a sliding switch with user configurable positions and labels. Supports 4 different pointer styles, 4 different track styles, and 3 different position indicator styles.

Return to XControls Instrument Pack Page or Professional Pack Page.


Toggle Switch

The Toggle Switch control is a binary switch with a moving slider. Supports Vertical or Horizontal orientation, Click-To-Toggle or Drag-To-Toggle mouse control style, and 3 bevel styles for the switch surface.

Return to XControls Instrument Pack Page or Professional Pack Page.

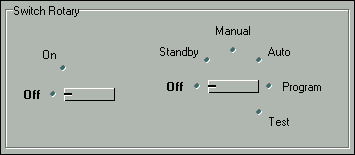

Rotary Switch

The Switch Rotary control is a rotating switch with up to 8 positions with labels. Supports 2 different pointer styles and 3 different position indicator styles.

Return to XControls Instrument Pack Page or Professional Pack Page.
