Model DI-75B - OBSOLETE

8-Channel, DI-5B Module Expansion Unit

Out of
Stock

OBSOLETE

  • 8-Channel, 5B module expansion device for DI-715B, DI-720, DI-722, and DI-730 instruments
  • Expands the measurement capability of DI-715B, DI-720, DI-722, and DI-730 Instruments to include virtually any isolated, industrial-type signal
  • Mix and match DI-5B modules to precisely suit any application
  • Powered from any 9 - 36V DC source
  • Extremely small size (9 × 7.3 × 2.7 Inches)
  • The DI-78B provides the same functionality but with 16 DI-8B module signal conditioned channels
  • Can be stacked and secured with stacking brackets (included).
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page

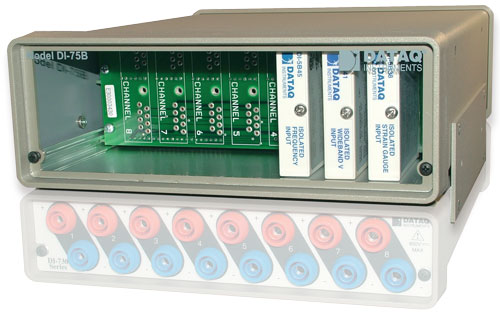

DI-75B Data Acquisition Expander on top of a DI-730 Data Acquisition System
This data logger is manufactured in the United States of America

Description

The DI-75B is an eight-channel, 5B-module expansion device for DI715B, DI-720, DI-722, and DI-730 instruments. Each DI-75B accepts up to eight high-performance, plug-in (DI-5B) signal conditioning modules, thereby expanding the measurement capability of DI-715B, DI-720, DI-722, and DI730 instruments to include virtually any isolated, industrial-type signal. Because DI-5B modules are identical in pinout and size, they can be mixed or matched in any combination. Choose from thermocouple, true rms, voltage, strain, frequency, process current, RTD, potentiometric, or DC transducer—whatever suits your application. Over 90 models available from DATAQ Instruments, Inc. address the full spectrum of industrial measurements. A clear acrylic front panel allows easy identification of all installed 5B modules.

Included stacking brackets and optional handles help to create a sturdy and convenient expandable data acquisition system.

Accessories

DI-5B Amplifiers

Signal Conditioning Modules

$164–$297 ea.
DI-8B Amplifier Modules

Description

DI-5B amplifiers offer the convenience to mix and match modules based upon measurement function and range to meet any application requirement, from the most simple to the most complex.

Software

WinDaq

Data Acquisition Recording and Playback Software

Included FREE with your Dataq Instruments hardware purchase. 240Hz maximum sample rate for most products. Owners of obsolete products may still download the latest version.

WinDaq Data Acquisition Software

ActiveX Controls

Programming

FREE ActiveX programming solutions for Dataq Instruments products. Free sample programs available. Compatible with LabView.

DATAQ ActiveX Controls

WinDaq/XL

WinDaq-to-Excel Real Time Link

Real-time data logging directly to Microsoft Excel (supports MS Office 2003 or higher). No programming required. Free Trial Version. Purchase full version on WinDaq/XL product page.

WinDaq Data Acquisition Software

Videos

Exporting Data to Excel
Export data to Excel

Learn how to export data from WinDaq Waveform Browser to Microsoft Excel.
Introduction to WinDaq Data Acquisition Software
WinDaq Data Acquisition Software

Introduction to WinDaq Data Acquisition Software.
