Function/Arbitrary Waveform Generator Operation of the DI-770 Oscilloscope

Function/Arbitrary Waveform Generator Operation of the DI-770 Oscilloscope

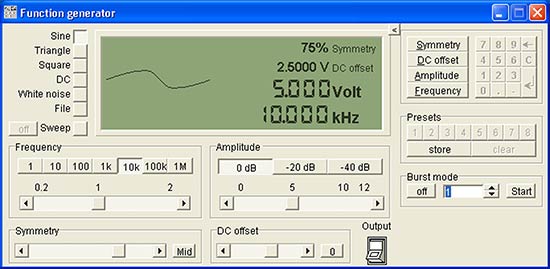

The function generator offers five default signal shapes: sine wave, triangle, square, DC and white noise. The selected signal shape is immediately shown in the display of the generator. The amplitude of the signal can be freely set between 0 V and 12 V peak. A DC offset between 0 and 12 V can also be applied, along with a symmetry ranging from 1% to 99%. The frequency of the signal can be set from almost 0 to 2 MHz.

The function generator also offers a sweep function. The sweep operates together with the spectrum analyzer. It can be set manually but it can also copy the sweep limits from the lower frequency and higher frequency from the spectrum analyzer. Together with the "measure maximum values" mode from the spectrum analyzer this gives a fast and easy way to create frequency response graphs.

It is also possible to generate a signal that was previously measured using the oscilloscope. With the File button a signal file can be loaded into the function generator memory. The generator will then generate this signal, while the amplitude, and frequency can still be adjusted. Eight user definable presets are available, in which often used signals can be stored. With a single click on a button the required signal is generated.

Key features

  • Choose from five preprogrammed waveform shapes: sine, square, triangle, DC, white noise.
  • Arbitrary waveform generator output accepts waveform data from file-based information that can be automatically created by the oscilloscope application.
  • Supports all the features of a traditional function generator such as adjustable frequency and amplitude.
  • Supports output frequencies as high as 2 MHz, and output amplitudes up to 12V peak.
