Model DI-160

Event, State, and Count Data Logger Records When, How Long, and How Many Times Events Occur

$299.00
Out of
Stock
  • Includes a DI-160 instrument, a 6-foot USB cable, an AC power adapter, a 2GB SD memory card, a rechargeable lithium-ion battery (pre-installed) as power backup (1-2 hour life), and downloadable recording software
  • Logs when, how long, and how many times events occur
  • Eight measurement channels
  • Four isolated high voltage inputs connect to any ±300V or 230 VAC rms source
  • Four low voltage inputs to detect activity from switch closures, TTL-level signals, or DC levels (up to 30 Volts)
  • Records to removable, SD-style memory in csv (comma-separated value) file format
  • Pre-installed rechargeable lithium-ion backup battery for sudden power loss (lasts about 24 hours)
  • Four measurement modes
  • Built-in USB interface
  • CE approved
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page
DI-160 USB Event Data Logger
This data acquisition unit features four high voltage inputs and four low voltage inputsThis data logger features a plus/minus 10 Volt full scale rangeThis data logger features sample rates from 1 sample per second per channel to 1 sample per day per channel.This data acquisition system can record to a removable SD card
This data logger has a USB interfaceGet same day shipping when you order this data logger before 3PM ETThis data acquisition system has a 30-day Money back guaranteeThis data logger is manufactured in the United States of America

Description

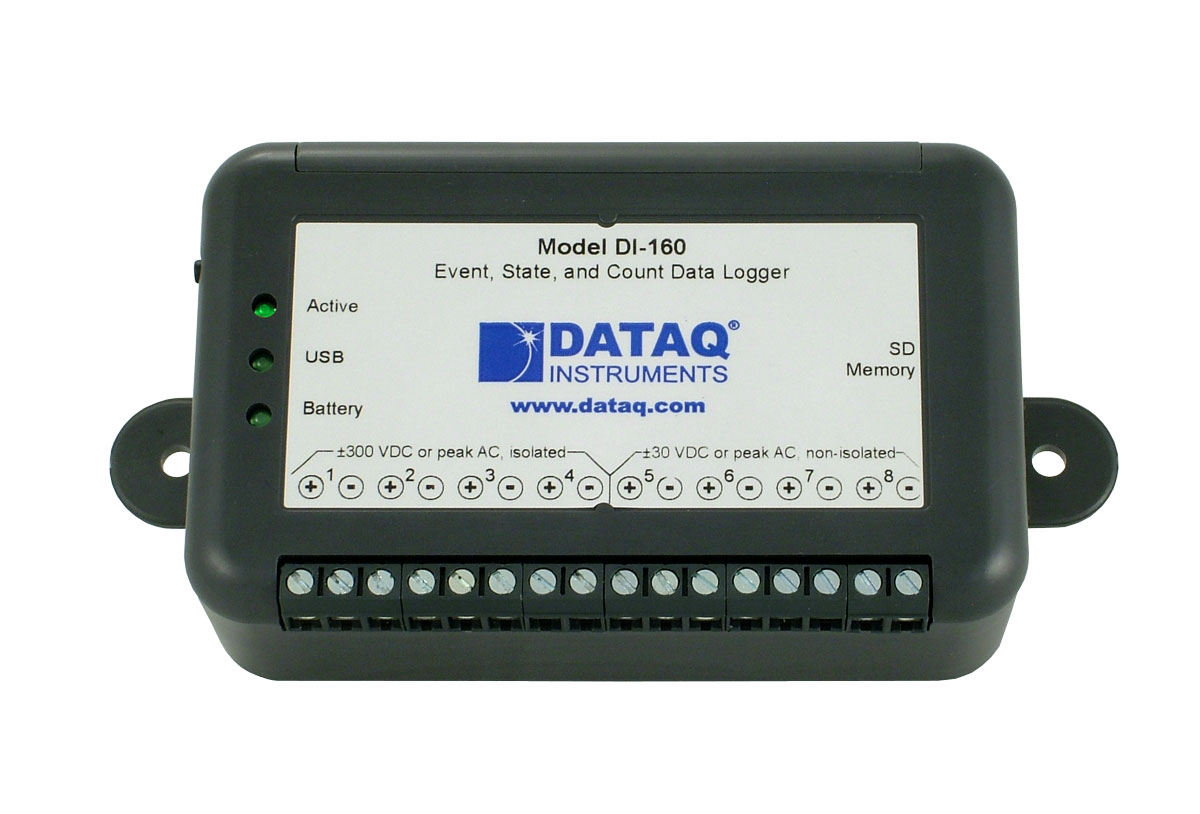

The DI-160 USB Event Data Logger features 8 input channels (four high and four low) with programmable capture modes to detect events (when the events happen), states (how long between events) and counts (how many events).

The DI-160 features programmable capture modes to detect events (when the events happen), states (how long between events) and counts (how many events). An internal real time clock provides time and date stamping for each captured quantity, and storage is accomplished to a removable SD-style memory card. Data storage format is comma-separated value (CSV) so recorded files are human-readable and easily imported to other applications like Microsoft Excel.

The DI-160 features eight input channels split between four high voltage and four low voltage types. The high voltage channels may be connected to any ±300V or 230 VAC rms source and feature input-tooutput and channel-to-channel isolation of 500 VDC or ±250 V peak AC. The four low voltage inputs are internally pulled-up and may be used to detect activity from switch closures, TTL-level signals, or DC levels up to 30 Volts.

The unit can be powered by an AC adaptor or an internal rechargeable battery. Three status LEDs are provided: USB interface detected, sampling, and battery charging.

Accessories

101014-2GS

2GB SD Card

$19.00
2GB SD Card

Description

2GB SD memory card allows recording up to a 2 kHz sample throughput rate. See model 101014-2G for a faster memory solution.

101014-CR

SD Card Reader

$25.00
SD Card Reader

Description

USB Secure Digital Memory Card Reader connects to the USB port of any PC and allows data recorded to SD memory to be transferred to the PC for review and analysis.

101085

AC Power Supply

$19.00
AC power supply

Description

Optional AC power supply (USB to AC) for stand-alone applications and charging EL-WiFi Series products. Includes US adapter.

101017-RPA

US Power Adapter

$4.00
US Power Adapter

Description

Spare US Adapter for AC power supply 101017-2 and 101085.

101017-RPE

EU Power Adapter

$4.00
European Power Adapter

Description

Spare European Adapter for AC power supply 101017-2 and 101085.

101017-RPK

UK Power Adapter

$4.00
UK Power Adapter

Description

Spare UK Adapter for AC power supply 101017-2 and 101085.

101017-RPS

Australian Power Adapter

$4.00
Australian Power Adapter

Description

Spare Australian Adapter for AC power supply 101017-2 and 101085.

Software

Event Recorder Software

DI-160 Configuration

FREE Setup and configuration software for DI-160 Event, State, and Count Data Loggers.

DI-160 Event Recorder

Specifications

High Voltage Signal Inputs
Number of Channels: 4
Working Range: ±300 VDC, 230 Vrms
Trigger Threshold: 4 Volts
Channel-to-channel Isolation: 500 V DC, ±250 V peak AC
Input-to-output Isolation: 500 V DC, ±250 V peak AC
Max Input without Damage: ±360 V DC or peak AC
Low Voltage and Switch Closure Inputs
Number of Channels: 4
Configuration: Internally pulled up
Working Range: TTL
Trigger Threshold: 2.5 V DC
Isolation: None
Max Input without Damage: ±30 V DC or peak AC
Operation
Programmable functions: Event, State, Count (alternating current (AC) counter or high-speed (HS) counter; HV channels 1-3 and LV channels 5-7 may function as counters, but no more than three counters can be enabled at any time.)
Programmable intervals:
(applies to all channels)
1, 2, 5, 10, 15, 30 seconds
1, 2, 3, 4, 5, 10, 15, 30 minutes
1, 2, 4, 6, 8, 12, 24 hours
Counter Operation
Reset condition: Programmable interval timeout
Maximum count: 1 sec interval, 8,192
>1 sec interval, 9,999
Maximum frequency: 2 kHz
Minimum pulse width: > 500 μs
HS Counter Operation: Used whenever the need exists to account for and totalize each pulse that occurs within a sample interval
AC Counter Operation: Optimized for 50/60 Hz power line frequencies. Designed to ignore power line transitions and to change state only when power is removed or applied.
Maximum line frequency: 120 Hz
Maximum count frequency: 20 Hz
State Operation
Operation: Determines the DURATION of an event.
Records the state that exists upon termination of a sample interval.
Event Operation
Operation: Determines WHEN an event occurred, but does not yield the duration of the event.
Records a single time-stamped data point when one or more events occur within a definable interval.
Min capture event pulse width: > 500 µs
Internal Date/Time Clock
Accuracy: 20 ppm
Sync Method: via connected PC during setup
System Configuration
Method: Via PC-based program; Uploaded via USB port
Parameters: Enabled/disabled channels; Sample interval; Function (AC counter, HS counter, Event, Pulse); User annotation per channel; Device name
Data Memory
Type: Removable SD-style
Maximum memory size: 2 GB
Storage format: ASCII comma separated value (.csv)
Controls, Indicators, and Connections
Interface: USB 2.0 (mini-B style connector)
Storage: Removable SD-style memory
Push button control: Stop/Start recording to SD memory
Indicators (LED): Active, USB, Battery
Input Connections: One 16-position terminal strip divided into two sections (High Holtage and Switch Closure/TTL)
Power
Internal Battery Type: Rechargeable lithium-ion
Internal Battery Run time: 24 hours
Current drain: 450 mA max @ 5VDC
AC adapter: 100-240 VAC, 50-60 Hz
External Power: via USB port or provided AC adapter
Environmental
Operating Temperature: 0°C to 35°C (32°F to 95°F)
Operating Humidity: 0 to 90% non-condensing
Storage Temperature: -20°C to 45°C (-4°F to 113°F)
Storage Humidity: 0 to 90% non-condensing
Physical Characteristics
Enclosure: Hardened Plastic
Mounting: Desktop; bulkhead
Dimensions: 2.625D × 5.5W × 1.53H in.
(6.67D × 13.97W × 3.89H cm.)
Weight: 4.5 oz.
OS Compatibility
Setup software: Windows XP (32-bit) and later
SD-based CSV files: OS-independent

Videos

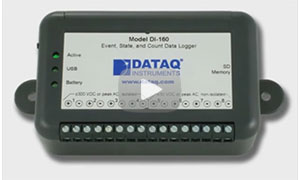

Introduction to the DI-160 Event Data Logger
Overview of the DI-160

Introducing the DATAQ Instruments DI-160 Event, State, and Count Data Logger
