Model EL-CC-1

Cold Chain Goods Temperature Data Loggers


Select Goods Type:

For CHILLED foods - has a low alarm of 2°C (35.6°F) and a high alarm of 8°C (46.4°F).

  • Includes an EL-CC-1 data logger and quick start guide. Sold as 10-pack.
  • Data loggers designed for monitoring chilled, frozen or ripening food environments
  • Cold Chain logger for CHILLED foods has a low alarm of 2°C (35.6°F) and a high alarm of 8°C (46.4°F).
  • Cold Chain logger for FROZEN foods has a low alarm of -20°C (-4°F) and a high alarm of -16°C (3.2°F).
  • Cold Chain logger for RIPENING foods has a low alarm of 12°C (53.6°F) and a high alarm of 14°C (57.2°F).
  • Encapsulated packaging seals out dust and water up to 1 meter of immersion (IP67)
  • Samples and records temperature with a time and date stamp once every 10 minutes
  • Built-in alarm LED set to trigger at pre-configured temperature limits
  • Reusable
  • Over 12-month battery life
  • Data export options include PDF, Excel, JPEG image
  • All software is included
  • Sold as a 10-pack
  • Quantity Discount
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page

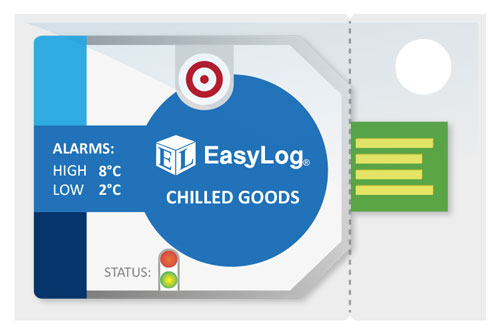

EL-CC-1 Data Logger
This data logger has one degree of resolution.This data logger has a single channel.This device measures -30 to +60°C (-22 to +140°F).This data logger measures temperature.This data logger can record one sample every 10 minutes.
This data logger has a USB interface.This data logger records data to internal memory.Get same day shipping when you order this data logger before 3PM ETThis data acquisition system has a 30-day Money back guaranteeUse coupon code EL10USB for 10% off your Lascar data logger purchase.


Simplicity defines the EL-CC Data Logger approach to ensure that food stuffs of any type were not exposed to dangerous temperature extremes during transit and handling. Packaged in their own hermetically sealed bag, EL-CC data loggers are offered as three individual models each configured to alarm at a specific temperature range: one model each for frozen, chilled, and ripening food stuffs. The data loggers can be initiated on-the-spot and placed into service without the need for configuration software. A preprogrammed 30-minute delay prevents alarms from triggering until the logger is fully saturated in the ambient temperature it's monitoring. The logger samples at a fixed rate of one sample every 10 minutes, and contains enough memory to provide 220 days of total record time. At any time during the recording process the logger's control button can be pressed to activate built-in LEDs. That action saves a marker in the recorded data stream to indicate the event. At the same time the LEDs illuminate to indicate devices status and alarm states. If pre-programmed temperature extremes were breached, the LEDs provides an instant visual indication of the problem without the need to download and review recorded data. After deployment the logger may be connected to the USB port of a PC to upload all recorded temperatures and events, each correlated with a specific date and time of acquisition. Data can be sent to a PDF, Excel, or JPEG image file. Software is downloadable and provided at no extra charge. Finally, EL-CC-1 Series data loggers are reusable. EL-CC-1 Series' built-in battery provides at least 12 months of service. And since the logger's integral protective sheath must be torn to upload data via the USB port, the water-tight IP67 integrity of future deployments can be preserved by placing loggers in model EL-CC-BAG (sold separately).



Pack of 5 Bags

5-pack Bags for EL-CC Data Loggers


Pack of 5 waterproof bags when reusing any version of the EL-CC-1 data logger.


EasyLog CC Software

Download Software

FREE Download software for Lascar Data Loggers.

Lascar EasyLog CC Software


Number of Channels: One
Measurement Range: -30 to +60°C (-22 to +140°F)
Internal Resolution: 0.1°
Accuracy (overall error): ±0.5°C (±1°F)
Logging Rate: 1 sample every 10 minutes
Memory Capacity: 32,600 samples
Environmental protection: IP67 (protected against moisture to the IP67 standard when housed in its original, unopened packaging, or an optional EL-CC-BAG or equivalent)
Battery Life: 1 year
