Model EL-PDF-1

Cold Chain Goods Data Loggers with Built-in PDF Report Generator

$241.95

Select Goods Type:

For CHILLED foods - has a low alarm of 2°C (35.6°F) and a high alarm of 8°C (46.4°F).

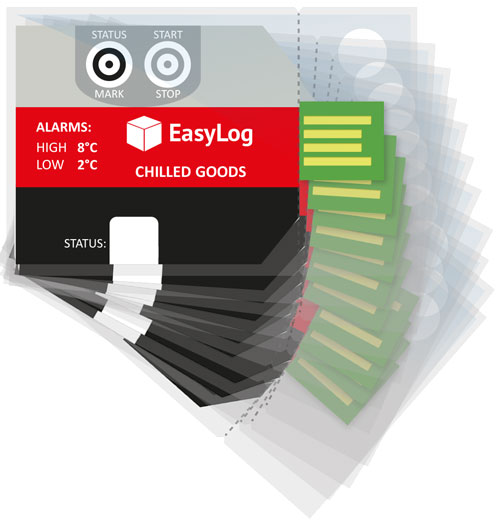

  • Includes an EL-PDF-1 data logger and quick start guide. Sold as 10-pack.
  • Reusable, stand-alone temperature data loggers
  • Generates an internal PDF report. Looks like a USB drive to any connected computer
  • Compatible with all computer platforms and operating systems (Mac, PC, Linux, macOS, Windows, etc.)
  • Sold in 10-packs for specific temperature monitoring markets
  • Cold Chain logger for CHILLED foods has a low alarm of 2°C (35.6°F) and a high alarm of 8°C (46.4°F).
  • Cold Chain logger for FROZEN foods has a low alarm of -20°C (-4°F) and a high alarm of -16°C (3.2°F).
  • Cold Chain logger for RIPENING foods has a low alarm of 12°C (53.6°F) and a high alarm of 14°C (57.2°F).
  • Cold Chain logger for PHARMACEUTICAL goods has a low alarm of 8°C (46.4°F) and a high alarm of 25°C (77°F).
  • Encapsulated packaging seals out dust and water up to 1 meter of immersion (IP67)
  • Samples and records temperature with a time and date stamp once every 10 minutes
  • Cumulative record time is over 220 days over one or more measurement sessions
  • Built-in alarm LED triggers at preset temperature values
  • No software to install. The instrument is completely self-contained
  • Discount Schedule
  • Get 10% off your Lascar Data Logger with coupon code EL10USB. View details.
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page
EL-PDF-1 Data Logger
This data logger has one degree of resolution.This data logger has a single channel.This device measures -30 to +60°C (-22 to +140°F).This data logger measures temperature.This data logger can record one sample every 10 minutes.
This data logger has a USB interface.This data logger records data to internal memory.Get same day shipping when you order this data logger before 3PM ETThis data acquisition system has a 30-day Money back guaranteeUse coupon code EL10USB for 10% off your Lascar data logger purchase.

Description

EL-PDF-1 data loggers can be initiated on-the-spot and are supplied ready-to-operate: A built-in temperature sensor, no battery to install and no software to ever download and run. Simply press and hold the START button until the STATUS LED shows green, deploy the logger in the environment you want to monitor, and walk away. It's that easy.

A pre-programmed 30-minute delay prevents alarms from triggering until the logger is fully saturated in the ambient temperature it's monitoring. The logger samples at a fixed rate of one sample every 10 minutes, and contains enough memory to provide over 220 days of total record time. At any time during the recording process the logger's STATUS button can be pressed to activate built-in LEDs. That action saves a marker in the recorded data stream to indicate the event. At the same time LEDs illuminate to indicate device status and alarm states. If preprogrammed temperature extremes were breached, the LEDs provide an instant visual indication while the logger continues to record.

After deployment the logger's integral plastic bag is opened to expose its USB port. Connect the logger to any computer running any operating system and the logger appears as a USB drive containing a PDF report file. Simply move the report to your computer to review and disseminate as you would any file. Afterward, re-deploy the data logger for other recording sessions again and again over the logger's estimated 220-day life. The optional EL-CC-BAG is available to maintain the instrument's IP67 rating after its first use.

Accessories

EL-CC-BAG

Pack of 5 Bags

$5.99
5-pack Bags for EL-CC Data Loggers

Description

Pack of 5 waterproof bags when reusing any version of the EL-CC-1 data logger.

Software

EasyLog CC Software

Download Software

FREE Download software for Lascar Data Loggers.

Lascar EasyLog CC Software

Specifications

Number of Channels: One
Measurement Range: -30 to +60°C (-22 to +140°F)
Internal Resolution: 0.1°
Accuracy (overall error): ±0.5°C (±1°F)
Logging Rate: 1 sample every 10 minutes
Memory Capacity: 32,600 samples
Environmental protection: IP67 (protected against moisture to the IP67 standard when housed in its original, unopened packaging, or an optional EL-CC-BAG or equivalent)
Battery Life: 1 year
