Model EL-USB-LITE

Single Channel Data Logger Measures Temperatures from -10°C to +50°C (+14°F to +122°F)

$34.99
In
Stock
  • Includes an EL-USB-LITE data logger, a battery (pre-installed), and downloadable software (CALIBRATION CERTIFICATE sold separately under ACCESSORIES tab and must be ordered at time of purchase)
  • -10 to +50°C (+14 to +122°F) Measurement Range
  • USB Interface for Set-up and Data Download
  • 2 User-Programmable Alarm Thresholds
  • Bright Red and Green LED Indication
  • Replaceable Internal Lithium Battery
  • 30-minute fixed sample rate (one sample every 30 min)
  • Discount Schedule
  • Get 10% off your Lascar Data Logger with coupon code EL10USB. View details.
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page

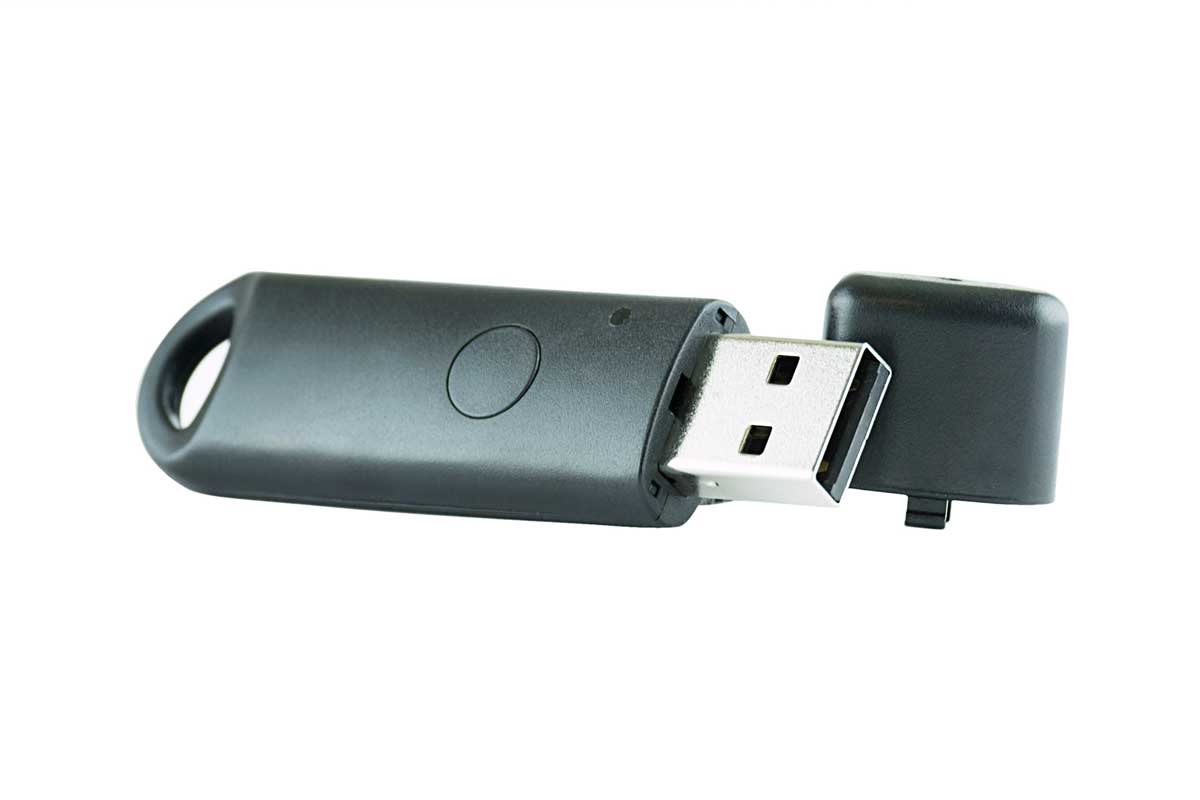

EL-USB-LITE Data Logger
This data logger has one degree of resolution.This data logger has a single channel.This device measures -10 to +50°C (+14 to +122°F).This data logger measures temperature.This data logger can record one sample every 30 minutes.
This data logger has a USB interface.This data logger records data to internal memory.Get same day shipping when you order this data logger before 3PM ETThis data acquisition system has a 30-day Money back guaranteeUse coupon code EL10USB for 10% off your Lascar data logger purchase.

Description

The EL-USB-LITE temperature data logger measures and stores up to 4,080 temperature readings over a -10 to +50°C (+14 to +122°F) range with a fixed 30-minute sample rate and a battery life of 1 month continuous use. Press the button and a red/green LED indicates whether a preset alarm level has been recorded. Easily configure the device and download the stored data by plugging the data logger into a PC’s USB port and running the purpose-designed software that allows you to easily graph, print and export data to other applications. The battery is fitted; to begin using the data logger you must remove the tab.

Accessories

BAT-3Vx5

5-pack Batteries

$11.99
Lascar Data Logger Battery

Description

Replacement battery for model EL-USB-Lite, sold as a five-pack. Normal battery life is one month of continuous use.

EL-DataPad

Touchscreen Data Viewer

$254.99
EL-DataPad

Description

Portable, hand-held viewer with 2.8 inch touch screen full color display for EL-USB temperature data loggers. Includes EL-DataPad, micro USB cable, software on CD, and Quick Start Guide. Learn more.

CAL EL-USB-TEMP-1

Calibration Certificate (1st Cal Value)

$40.00

Select Temperature Point:

Temperature Calibration Certificate

Description

Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase this first point option first for each device, and then additional points per device as required. Standard points are $40. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.

CAL EL-USB-TEMP-2

Calibration Certificate (2nd Cal Value)

$25.00

Select Temperature Point:

Temperature Calibration Certificate

Description

Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase the first point option first (CAL EL-USB-TEMP-1) for each device, and then additional points per device as required. Standard points are $25. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.

Software

EasyLog Software

Configuration Software

FREE Configuration and download software for Lascar Data Loggers.

Lascar EasyLog Software

Specifications

Number of Channels: One
Measurement Range: -10 to +50°C (+14 to +122°F)
Internal Resolution:
Accuracy (overall error): ±2.5°C (±4.5°F)
Logging Rate: 1 sample every 30 minutes
Memory Capacity: 4,080 samples
Operating Temperature Range: -10 to +50°C (-31 to +176°F)
Battery Life 1 month

Videos

EasyLog Software
EasyLog Setup

Learn how to set up Lascar Data Loggers with EasyLog Software.
EL-DataPad Setup
EL-DataPad Setup

Learn how to set up and configure your EL-USB data logger with the Optional EL-DataPad.
