Model EL-USB-TP-LCD+ - (21CFR option available)

High Accuracy Temperature Data Logger with LCD display Measures -40 to +125°C (-40 to +257°F) with included Thermistor Probe

$147.99

Select Data Security:

  • Includes an EL-USB-TP-LCD+ data logger, a 3-meter thermistor probe, a battery (pre-installed), and downloadable software (CALIBRATION CERTIFICATE sold separately under ACCESSORIES tab and must be ordered at time of purchase)
  • -40 to +125°C (-40 to +257°F) measurement range
  • ±0.7°C (±1.3°F) accuracy
  • High contrast LCD display
  • Included 1-meter thermistor probe (optional extenders available)
  • USB interface
  • Included EL-WIN-USB software for set-up and data analysis
  • Programmable alarms with visual alerts
  • 21 CFR compliant Data Audit Trail available (Learn More)
  • Included long-life ½AA replaceable lithium battery
  • Discount Schedule
  • Get 10% off your Lascar Data Logger with coupon code EL10USB. View details.
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page

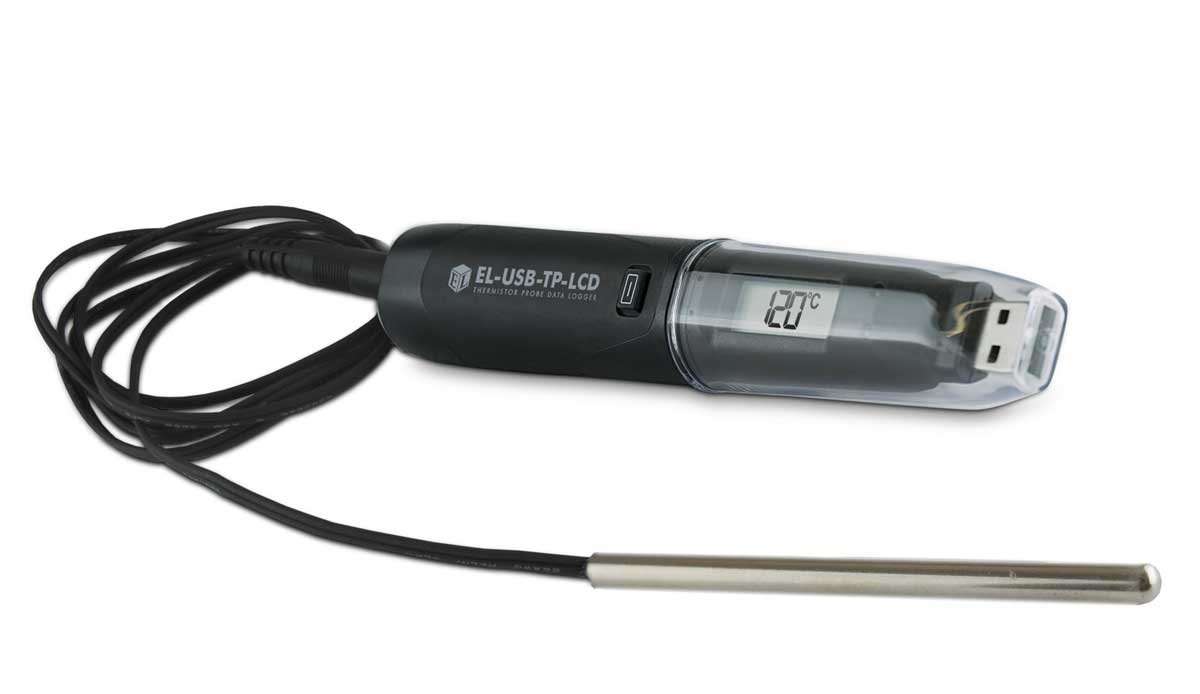

EL-USB-TP-LCD+ Data Logger
This data logger has 0.5 degree of resolution.This data logger has a single channel.This data logger measures temperatures from -40 to +125°C (-40 to +257°F) .This data logger can record one sample every second.This data logger has a USB interface.
This data logger records data to internal memory.21 CFR Part 11 Option Available.Get same day shipping when you order this data logger before 3PM ETThis data acquisition system has a 30-day Money back guaranteeUse coupon code EL10USB for 10% off your Lascar data logger purchase.

Description

The EL-USB-TP-LCD+ is a stand-alone single channel thermistor data logger. With a measurement range from -40 to +125°C (-40 to +257°F), the included 1 meter thermistor probe is accurate to within ±0.7°C. With a storage capacity of 32,510 readings, and sample intervals ranging from 1 second to 12 hours, the EL-USB-TP-LCD can log temperature data for days, weeks or months at a time. Programmable alarms allow you illuminate a LED when temperatures rise above or fall below user-defined levels.

A high contrast LCD display allows you to view the current temperature, the scale (°C or °F) and the minimum/maximum logged value. The included EL-WIN-USB software allows you to choose a thermistor type, set the sample interval, and specify alarm levels. In addition, the software allows you to graph recorded data, print it, or export it to Microsoft Excel format.

Accessories

BAT 3V6

3.6V Battery

$5.49
Lascar Data Logger Battery

Description

Replacement 3.6V, 1200mAh lithium battery. Please Note: Continental U.S. shipping ONLY.

EL-PROBEEXTENDER-5M

Thermistor Extender

$11.99
Probe Extender

Description

5 meter thermistor probe extender. 3.5 mm jack extender.

EL-PROBEEXTENDER-10M

Thermistor Extender

$13.99
Probe Extender

Description

10 meter thermistor probe extender. 3.5 mm jack extender.

EL-DataPad

Touchscreen Data Viewer

$273.49
EL-DataPad

Description

Portable, hand-held viewer with 2.8 inch touch screen full color display for EL-USB temperature data loggers. Includes EL-DataPad, micro USB cable, software on CD, and Quick Start Guide. Learn more.

EL-P-VAC

Temperature Probe

$32.99
Glycol Probe

Description

High accuracy temperature probe, designed to mimic a product's temperature response. -40 to 125°C (-40 to 257°F) measurement range; Accuracy of ±0.1ºC (-10 to 70°C), ±0.3ºC (-40 to 125°C); 40 minute T90 response (Based on response to a step temperature change of -10 to 21°C).

EL-P-TP+

Thermistor Probe

$30.49
Temperature Probe

Description

Spare high accuracy thermistor probe for EL..TP+ products. -40 to 125°C (-40 to 257°F) measurement range; Accuracy of ±0.1°C (-10 to 70°C), ±0.3°C (-40 to 125°C); 75mm stainless steel capped probe on 3m cable.

CAL EL-USB-TEMP-1

Calibration Certificate (1st Cal Value)

$40.00

Select Temperature Point:

Temperature Calibration Certificate

Description

Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase this first point option first for each device, and then additional points per device as required. Standard points are $40. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.

CAL EL-USB-TEMP-2

Calibration Certificate (2nd Cal Value)

$25.00

Select Temperature Point:

Temperature Calibration Certificate

Description

Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase the first point option first (CAL EL-USB-TEMP-1) for each device, and then additional points per device as required. Standard points are $25. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.

Software

EasyLog Software

Configuration Software

FREE Configuration and download software for Lascar Data Loggers.

Lascar EasyLog Software

Specifications

Number of Channels: One
Supplied probe measurement range: -40 to +125°C (-40 to +257°F)
Resolution: 0.5°
Accuracy: ±0.7°C (±1.3°C)
Logging Rate: 1 sample every second
1 sample every 10 seconds
1 sample every minute
1 sample every 5 minutes
1 sample every 30 minutes
1 sample every hour
1 sample every 6 hours
1 sample every 12 hours
Memory Capacity: 32,510 samples
Operating Temperature Range: -10 to +40°C (+14 to +104°F)
(Operating temperature applies to the data logger unit only.)
Battery Life 6 months
(Depending on sample rate, ambient temperature and use of LCD.)

Videos

EasyLog Software
EasyLog Setup

Learn how to set up Lascar Data Loggers with EasyLog Software.
EL-DataPad Setup
EL-DataPad Setup

Learn how to set up and configure your EL-USB data logger with the Optional EL-DataPad.
