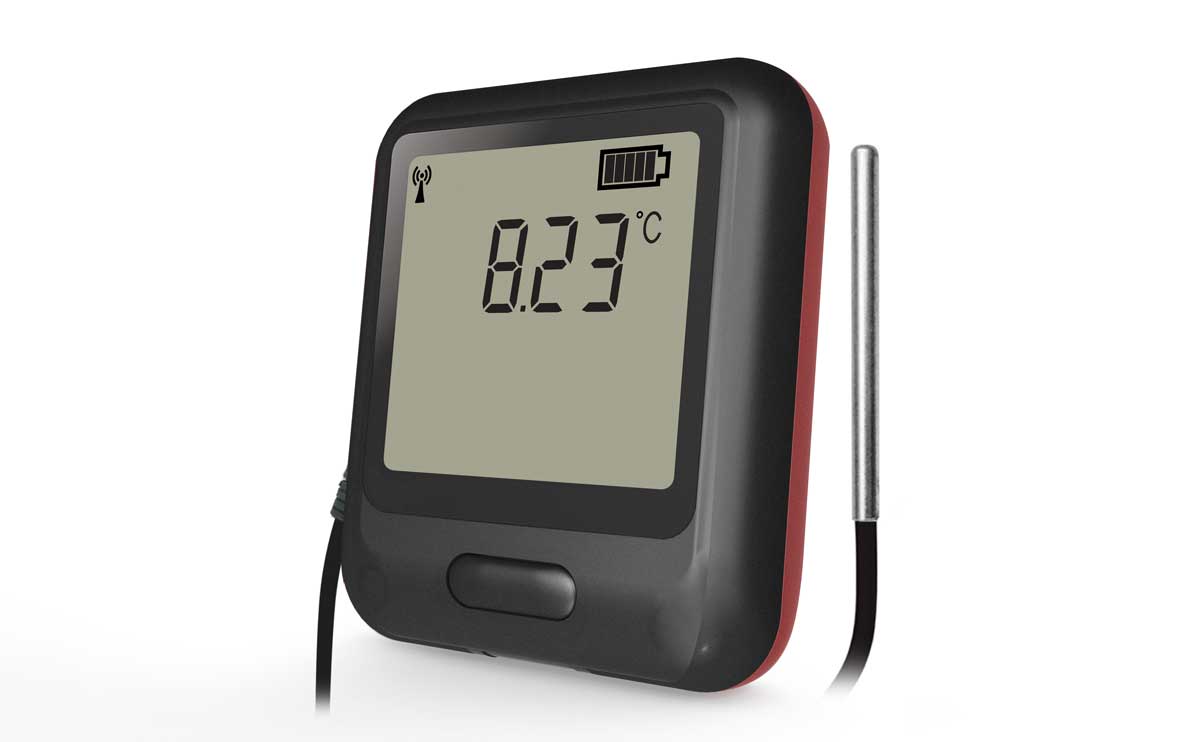

Model EL-WiFi-TPX+

Wireless High Accuracy Data Logger Measures Temperatures from -40 to +125°C (-40 to +257°F) with Included Probe and on-board audio and visual Alarm

$285.99
In
Stock
  • Includes an EL-WiFi-TPX+ data logger, a plastic mounting bracket, a 3-meter USB cable, a thermistor probe (50cm), a probe bracket, a rechargeable battery (pre-installed), and downloadable software (CALIBRATION CERTIFICATE sold separately under ACCESSORIES tab and must be ordered at time of purchase)
  • On-board audible alarm and visual warning light
  • Temperature resolution: ±0.01°C
  • Temperature accuracy (-15 to +80°C): ±0.2°C
  • -40 to +125°C (-40 to +257°F) temperature measurements
  • Thermistor probe (75 mm on 3m cable) IP rating of 67 resists dust and immersion
  • Main unit IP rating of 42
  • Built-in display shows current, min/max readings, alarm states all the time without the need to push button to show
  • Wireless communication to any PC using WiFi
  • 802.11b-compliant for universal compatibility
  • Built-in, rechargeable battery for independent deployment, with typical battey life of 6 months
  • Seamlessly uploads memory to host PC at programmable intervals
  • Huge buffer memory of 1,000,000 readings tolerates disconnects
  • Programmable high/low alarm limits
  • Built-in USB interface for battery charging and initial configuration
  • Free configuration, review, and Excel-export software
  • Supplied with mounting bracket, USB cable, temperature probe, and probe bracket.
  • Cloud-based Device Management allows you to view recorded data and configure your devices over the internet
  • 21 CFR compliant Data Audit Trail available for Cloud-based data (Learn More)
  • Quantity Discount
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page
EL-WiFi-TPX+ Data Logger
This data logger has 0.01 degree of resolution.This data logger has a single channel.This data logger measures temperature.This data logger measures temperatures from -40 to +125°C (-40 to +257°F).This data logger can record one sample every 10 seconds.
This data logger works with a wifi connection.This data logger records data to the cloud.This data logger has a USB interface.
Get same day shipping when you order this data logger before 3PM ETThis data acquisition system has a 30-day Money back guarantee

Description

Models EL-WiFi-TP, EL-WiFi-TP+, and EL-WiFi-TPX+ are WiFi-based, wireless data loggers for time and date-stamped temperature measurements using an included temperature probe. They adhere to the 802.11b standard and can integrate with any new or existing WiFi network. The data loggers are powered by a built-in, re-chargeable battery to allow purely stand-alone performance, and are packaged in a small, IP43-rated enclosure. The included temperature probe is made of high temperature flexible cable with a stainless steel end cap rated for IP67 (immersible up to 1m). The data loggers are fully programmable, initially via a built-in USB interface, and thereafter wirelessly via the WiFi link using included Windows-based software. Programmable parameters include a unique logger name, °F or °C, logging rate, report rate, as well as temperature alarms. The same software acts as a repository for temperature data, which the data logger uploads at programmable periodic intervals. Built-in memory seamlessly buffers over 100 days of readings when contact is lost with the WiFi network, the software, or the PC on to which the software is running. When the connection is re-established the data logger transparently uploads its memory contents to the PC while still logging data. Data is stored on the host PC in comma-separated value (CSV) format, and the host program allows the graphical review of acquired temperature data along with a time and date stamp, and seamless data export to Microsoft Excel.

Accessories

EL-P-TPX+

Calibratable Thermistor Probe

$43.99
Temperature Probe

Description

Spare high accuracy thermistor probe for EL-WiFi-TPX+ products. -40 to 125°C (-40 to 257°F) measurement range; Accuracy of ±0.2°C (-15 to 80°C), ±0.6°C (-40 to 125°C); 75mm stainless steel capped probe on 3m cable.

101085

AC Power Supply

$19
AC power supply

Description

Optional AC power supply (USB to AC) for stand-alone applications and charging EL-WiFi Series products. Includes US adapter.

101017-RPA

US Power Adapter

$4.00
US Power Adapter

Description

Spare US Adapter for AC power supply 101017-2 and 101085.

101017-RPE

EU Power Adapter

$4.00
European Power Adapter

Description

Spare European Adapter for AC power supply 101017-2 and 101085.

101017-RPK

UK Power Adapter

$4.00
UK Power Adapter

Description

Spare UK Adapter for AC power supply 101017-2 and 101085.

101017-RPS

Australian Power Adapter

$4.00
Australian Power Adapter

Description

Spare Australian Adapter for AC power supply 101017-2 and 101085.

CAL EL-USB-TEMP-1

Calibration Certificate (1st Cal Value)

$40.00

Select Temperature Point:

Temperature Calibration Certificate

Description

Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase this first point option first for each device, and then additional points per device as required. Standard points are $40. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.

CAL EL-USB-TEMP-2

Calibration Certificate (2nd Cal Value)

$25.00

Select Temperature Point:

Temperature Calibration Certificate

Description

Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase the first point option first (CAL EL-USB-TEMP-1) for each device, and then additional points per device as required. Standard points are $25. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.

Software

EL-WiFi-WIN

Configuration Software

Configuration software for EL-WiFi Data Loggers. Visit the Support Download page at Lascar Electronics for software (takes you another site).

Lascar WiFi Software

EasyLog Cloud

Files Thru the Air

Cloud-based EL-WiFi, EL-MOTE, EL-IOT and EL-WEM device configuration and management software.

Lascar WiFi Cloud

EasyLog Cloud

Configuration Software

Cloud-based device management software and iOS and Android App for Lascar EL-Mote, EL-Wifi, El-IoT, and EL-WEM Data Loggers.

Lascar EasyLog Software

Specifications

Channels: One
Battery Life: more than 6 months (Typical between charging cycles, but could be less if frequent transmissions)
USB Supply Voltage: 4.5 to 5.5 VDC
Temperature Measurement Range: -40 to +125°C (-40 to +257°F)
Internal Temperature Resolution: 0.01°
Temperature Accuracy: ±0.2 @ -15 to +80°C (±0.4 @ +5 to +176°F)
±0.6 @ -40 to +125°C (±1.1 @ -40 to +257°F)
Logging Rate: 1 sample every 10 seconds
1 sample every minute
1 sample every 5 minutes
1 sample every 30 minutes
1 sample every hour
1 sample every 6 hours
1 sample every 12 hours
Transmission Period (User Configurable): 1 minute
2 minutes
5 minutes
10 minutes
15 minutes
30 minutes
1 hour
1.5 hours
2 hours
3 hours
4 hours
5 hours
6 hours
12 hours
24 hours
Unit Operating Temperature: -20 to +60°C (-4 to +140°F)
Supported Security Standards: WEP 64 bit; WEP 128 bit; WPA-PSK; WPA2-PSK
Number of Loggers per PC: 253 Loggers
IP Rating: Logger IP42, Probe IP67
Dimensions: 82 × 70 × 36 mm (3.22 × 2.75 × 1.41 inches)

Videos

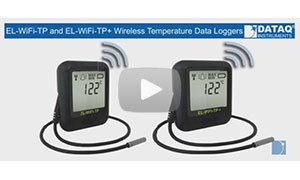

EL-WiFi-TP
EL-WiFi-TP Temperature Data Logger

Introducing the EL-WiFi-TP Temperature Data Logger.
EL-WiFi Configuration Software
Configuration Software

Software allows you to configure your instrument as well as download and analyze data.
Files through the air cloud service
Files Thru the Air

Configure and manage el-wifi-data loggers over the internet. You can also view and store data in the cloud.
