Model DI-718Bx-S-B

Bundle the DI-718Bx-S and save $364

$1895.00
Out of
Stock

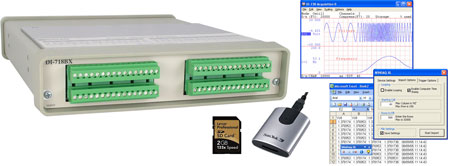

The DI-718Bx-S Bundle contains the following products:

The DI-718Bx-S has the following features:

  • Measures temperature, pressure, flow, current, voltage, and more using isolated 8B amplifiers. At least one 8B module is required. View the DI-8B amplifier selection guide
  • Low-Cost, Portable, Ethernet Data Logger (external USB to Ethernet converter available). This product is similar to the DI-718B but with 16 signal-conditioned channels
  • Stand-alone data logger option allows in-the-field measurements to be saved to Secure Digital Cards (SD), or stored to a PC is real time using WinDaq software
  • Sixteen DI-8B signal-conditioned analog inputs
  • 14-bit analog to digital conversion
  • Includes WinDaq Software
  • Record up to 14,400 Hz in stand-alone mode using high speed SD card (model 101014-2G)
  • Up to 4800 Hz Sample Throughput Rate when connected to PC
  • Unlock code required for sample rates over 1,108 Hz only when using WinDaq software
  • Wide variety of measurement functions and ranges based on DI-8B module selections. Mix and match modules as needed.
  • Find out how long your data logger can record to SD memory using our Record Time Calculator
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page
DI-718Bx Data Acquisition System
This DAQ system has 14-bit ADC resolutionThis data acquisition system features 16 analog input channelsThis data acquisition system has 8 digital portsThis data acquisition system can sample and record data at up to 4,800 samples per second throughput
This data logger has an Ethernet interfaceThis data acquisition system can record to a removable SD cardThis data acquisition system has a 30-day Money back guaranteeThis data logger is manufactured in the United States of AmericaGet same day shipping when you order this data logger before 3PM ET

Description

Low-cost, portable, Ethernet data acquisition system featuring 16 inputs for DI-8B signal conditioning modules (not included) and a maximum throughput rate up to 4800 samples/second. Includes Power cable, Ethernet cable, software, and documentation.

DATAQ Instruments’ DI-718Bx Series Data Acquisition/Data Logger System is designed for general purpose and standalone data logging applications that require signal conditioning. DI-718Bx instruments may be purchased with or without stand-alone capability. Instruments without this option must remain tethered to a PC’s Ethernet port (can be via a network) during data acquisition and use the PC’s own program and memory to store acquired data. Instruments with the stand-alone data logging option feature a built-in socket that accepts standard Secure Digital (SD) memories to which acquired data may be stored. SD memories are the same commonly available mass storage devices used with digital cameras and MP3 players.

Compact and low cost DI-8B amplifiers may be plugged directly into the DI718Bx and are the world’s smallest fully functional isolated analog signal conditioners. Each DI-8B module protects, filters, amplifies, and isolates an input signal and provides an advanced signal conditioning solution for nearly any industrial measurement. The compact nature of both the DI-718Bx and DI-8B modules combine to form the smallest data logger/acquisition instrument in its class.

All DI-718Bx instruments are supplied with four removable 16-position screw terminal connectors to provide access to the built-in DI-8B module backplane. Instruments are housed in a small (9"L × 7.29"W × 1.52"H; 22.9L × 18.5W × 3.86H cm) enclosure consisting of an aluminum base, all-steel wraparound.

Accessories

WinDaq/Unlock

DI-718Bx High Speed Unlock Code

$595.00
WinDaq Unlock Code

Description

Unlocks WinDaq to allow recording speeds up to 4.8 kHz throughput. Unlock Code ONLY. No CD will be shipped. Please Note: If you are ordering this software for a device you already own, you MUST provide the serial number of your device under "Order Notes" during checkout to receive the unlock code. Please allow one (1) business day for processing.

DI-8B Amplifiers

Signal Conditioning Modules

$116–$198 ea.
DI-8B Amplifier Modules

Description

DI-8B amplifiers offer the convenience to mix and match modules based upon measurement function and range to meet any application requirement, from the most simple to the most complex.

101014-2G

2GB SD Card (High Speed)

Discontinued by Pansonic
2GB High Speeed SD Card

Description

High-speed 2GB SD memory card allows recording to the full stand-alone sample rate limit of the host data logger.

101014-2GS

2GB SD Card

$19.00
2GB SD Card

Description

2GB SD memory card allows recording up to a 2 kHz sample throughput rate. See model 101014-2G for a faster memory solution.

101014-CR

SD Card Reader

$25.00
SD Card Reader

Description

USB Secure Digital Memory Card Reader connects to the USB port of any PC and allows data recorded to SD memory to be transferred to the PC for review and analysis.

100995-MCVW

Screw Terminal Block (Bottom)

$10.00
16-port screw terminal block

Description

Replacement 16-port removable screw terminal block for BOTTOM of screw terminal block receptacle in DI-78B, DI-710, DI-718B, DI-4718B, DI-718Bx, DI-785, DI-788, and DI-808 products.

100995-MCVR

Screw Terminal Block (Top)

$10.00
16-port screw terminal block

Description

Replacement 16-port removable screw terminal block for TOP of screw terminal block receptacle in DI-78B, DI-710, DI-718B, DI-4718B, DI-718Bx, DI-785, DI-788, and DI-808 products.

100464

Power Connector

$15.00
5-pin Power Connector

Description

Spare 5-pin power connector for DI-718Bx, DI-720, DI-722, and DI-730 instruments.

100730-1

Mounting Brackets

$49.00
Right-angle Mounting Brackets

Description

Pair of right-angle mounting brackets (with mounting screws) for DI-47xx and DI-7x0 Series instruments.

NIST-71X-CAL

Calibration Certificate

$95.00
NIST Calibration Certificate

Description

Re-calibration Service, this calibration certificate is included with new instruments. NIST-traceable certificate for all DI-710, DI-718B, and DI-718Bx data acquisition and data logger products. Includes both before and after data. Shipping charges do apply when ordering online. Learn more about Calibrating your device.

Software

WinDaq

Data Acquisition Recording and Playback Software

Included FREE with your DI-710 purchase. Installs drivers and WinDaq recording and playback software. Includes optional Add-on software with a valid installation key. 1108Hz maximum sample rate. For higher rates purchase the unlock code under the Accessories tab.

WinDaq Data Acquisition Software

ActiveX Controls

Programming

FREE ActiveX programming solutions for Dataq Instruments products. Free sample programs available. Compatible with LabView.

DATAQ ActiveX Controls

WinDaq/XL

WinDaq-to-Excel Real Time Link

Real-time data logging directly to Microsoft Excel (supports MS Office 2003 or higher). No programming required. Free Trial Version. Purchase full version on WinDaq/XL product page.

WinDaq Data Acquisition Software

Advanced CODAS

$595

Advanced analysis software add-on to WinDaq Waveform Browser software. Allows calculated channels, derivative, integration, moving average, automatic file management, automatic scaling, and more.

Advanced CODAS

Specifications

Analog Inputs
Number of Channels: 16 configured for signal conditioned inputs
Channel Configuration: Defined by DI-8B Module
Measurement Range: Defined by DI-8B Module
Accuracy: ±.05%FSR ±50μV + 8B module + CJC error
(test conditions: 1 channel; 100 S/s; averaging mode)
Resolution: ±1 part in 8,192
Input Impedance: Defined by DI-8B Module
Input offset voltage: Defined by DI-8B Module
Channel-to-channel crosstalk rejection: -75db @ 100Ω unbalance
Offset temperature coefficient: 0.25µV/°C
Digital filtering: Standard: Conditional over-sampling
Stand-alone: None
CJC Error: ±1.5°C plus 8B Module
Gain: 1, 2, 4, 8 (software selectable per channel)
Isolation (via DI-8B Modules)
Input-to-Output: 1000VDC/Peak AC
Channel-to-Channel: 500VDC/Peak AC
A/D Characteristics
Type: Successive approximation
Resolution: 14-bit
Monotonicity: ±2 LSB
Conversion Time: 69.4µs
Scanning Characteristics
Max. throughput sample rate: Standard: 4,800 Hz
Stand-alone: 14,400 Hz*
Min. throughput sample rate: Standard: 0.0034 Hz
Stand-alone: 0.0017 Hz
Max. scan list size: 18 entries
Sample buffer size: 2kb
Calibration
Calibration cycle: One year
Calibration method: Calibration Software, provided
Controls (Stand-alone models)
Single push-button: Provides manual control over Record and Standby
Digital I/O
Bits: 8 bi-directional ports
Input voltage levels: Min. required "1" 2V; Max allowed "0" 0.8V
Ethernet Interface
Type: 10/100Base-T
Connector: RJ-45
Protocol: TCP/IP
Server Type: DHCP or Fixed IP
Removable Memory (Stand-alone models)
Type: Standard SD (not SDHD or SDxC)
Minimum speed of 13x. For sample rates above 2kHz SD speed should be 133x or higher.
Capacity: 16MB to 2GB
Real Time Clock (Stand-alone models)
Type: Date, hour, minute, second
Resolution: 1 second
Accuracy: 20 ppm
Transfer Rate to PC
Real Time: up to 4,800 samples per second
From Memory Card: up to 3,000 samples per second
General
Panel indicators: Mode LED
Panel Controls: Control push button (Stand-alone models)
Panel Slots: Accepts MMC/SD-type flash memory
Input connectors: Two, removable sixteen position terminal blocks
Operating Environment: 0°C to 70°C
Enclosure: Aluminum base with steel wrap-around.
Removable aluminum top hatch for 8B module installation.
Dimensions: 7.29W × 9L × 1.52H in. (18.52W × 22.86L × 3.86H cm.)
Weight: 2 lbs. 10 oz. (1.19 kg) + DI-8B modules
Power Requirements: 9 to 36 VDC, 2.5 watts + 8B modules
Indicators
Stand-alone models: Three-color LED indicating Record, Standby, and Error conditions
Standard models: Power LED

*Dependent on SD card used. Low speed SD cards can sample up to 2,000 Hz; High speed cards can sample up to 14,400 Hz. Some high speed cards cannot sample as high at 14,400 Hz but their capability can only be determined by trial and error (Model 101014-2G has been tested and approved).
