Model DI-730-USB-B

8-channel Isolated High Voltage Ethernet Data Acquisition System Bundle
Bundle the DI-730-USB and save $1,500

$4229.00
In
Stock

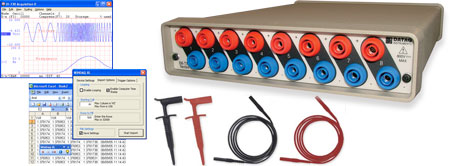

  • DI-730-USB DAQ (includes a 6-foot USB cable, a power supply and cable, an NIST-traceable calibration certificate, a 25-pin parallel port cable, and software on CD - a $3195 value) that features:
    • Measurement range of ±10mV to ±1000VDC (or peak AC) over six ranges
    • 1000V input-to-output and channel-to-channel isolation
    • Perfect for troubleshooting AC or DC motor drive systems. Measure field voltages and currents, control signals, RPM, and more.
    • Also for electric motor/generator maintenance and troubleshooting in mills and locomotion
    • DI-730s easily replace bulky chart recorders
    • Replace entire racks of isolation amps, high & low voltage amps, and data acquisition subsystems with one, portable, lightweight, 9 × 7 × 1½ inch instrument
    • Up to 150 kHz Sample Throughput Rate
    • Unlock code required for sample rates over 240 Hz only when using WinDaq software
    • 14-bit resolution
  • WinDaq/Pro+ Unlock Code (a $1995 value)
  • WinDaq/XL software — A Real time link to Microsoft Excel (2000 version or better) requiring no programming (a $99 value)
  • 16 (8 red and 8 black) model 100933 test leads (an $80 value)
  • 16 (8 red and 8 black) model 100935 test plungers (an $80 value)
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page
DI-730 High Voltage Data Acquisition System
DI-730 High Voltage DAQ WinDaq Data Acquisition Software WinDaq/XL Acquisition and Playback Add-on Test Leads with Banana Plugs Test Plungers
This data acquisition system features 8 analog input channelsThis data acquisition system can sample and record data at up to 150,000 sample per second throughput
This data acquisition has a USB interfaceGet same day shipping when you order this data logger before 3PM ETThis data acquisition system has a 30-day Money back guaranteeThis data logger is manufactured in the United States of America

Description

DI-730 High Voltage USB Data Acquisition System with Windaq software. Features 8 wide range differential analog input channels, 150,000 Samples per second throughput, 14-bit measurement resolution, and full scale ranges of ±10, ±100 mV, ±1, ±10, ±100, ±1000 V full scale.

The DI-730-USB offers 14-bit resolution and 150,000 Samples per second waveform recording capability. Use the DI-730 for wide dynamic range measurements, especially those involving AC or DC electric motors. Examples include paper, aluminum, and steel mills; high speed trains; and rail and seagoing locomotion. The high sample rate, exceptional isolation, and CMR characteristics make it well-suited for maintenance and troubleshooting of DC drive systems. Other applications include RPM measurements from motor/generators, supply voltage and current measurements, and field current measurements from drive-roll, braking, and take-up motors.

Accessories

WinDaq/Unlock

WinDaq/Pro Unlock Code (CD)

$1395.00
WinDaq Unlock Code

Description

WinDaq Data Acquisition software unlock code includes a CD (shipping charges apply). Allows you to record at speeds up to 150kHz throughput.

WinDaq/Unlock

WinDaq/Pro+ Unlock Code (CD)

$1995.00
WinDaq Unlock Code

Description

WinDaq Data Acquisition software unlock code on CD (shipping charges apply). Allows you to record at speeds up to 150kHz throughput and record different channels at different rates.

WinDaq/Pro+ Upgrade

WinDaq/Pro+ Unlock Code Upgrade (CD)

$200.00
WinDaq Unlock Code

Description

Upgrade to the latest version of WinDaq/Pro+. For registered users of WinDaq/Pro+ ONLY. CD will be shipped - shipping charges apply.

WinDaq/Pro+ Upgrade

WinDaq/Pro+ Unlock Code Upgrade (Email)

$200.00
WinDaq Unlock Code

Description

Upgrade to the latest version of WinDaq with the latest unlock code. For registered users of WinDaq/Pro+ ONLY. No CD will be shipped. Unlock code ONLY. Please allow at least one business day for processing.

WinDaq/Pro Upgrade

WinDaq/Pro Unlock Code Upgrade (CD)

$200.00
WinDaq Unlock Code

Description

Upgrade to the latest version of WinDaq with the latest unlock code. For registered users of WinDaq/Pro ONLY. CD will be shipped - shipping charges apply.

WinDaq/Pro Upgrade

WinDaq/Pro Unlock Code Upgrade (Email)

$200.00
WinDaq Unlock Code

Description

Upgrade to the latest version of WinDaq with the latest unlock code. For registered users of WinDaq/Pro ONLY. No CD will be shipped. Unlock code ONLY. Please allow at least one business day for processing.

DI-78B

DI-8B Expansion

$795.00
DI-78B Expansion Backpack

Description

16-channel DI-8B module expansion backpack. Includes interconnecting cable, power cable, and a pair of stacking brackets to mount on top of your Data Acquisition System. Learn more.

100933-0

Banana Plugs

$9.50
Black shrouded banana plugs - both ends - silicone

Description

BLACK shrouded banana plugs - both ends - silicone.

100933-2

Banana Plugs

$9.50
Red shrouded banana plugs - both ends - silicone

Description

RED shrouded banana plugs - both ends - silicone.

100935-0

Right-angle Plunger Hook

$5.00
Black right angle insulated plunger hook clip

Description

BLACK Right angle insulated plunger hook clip.

100935-2

Right-angle Plunger Hook

$5.00
Red right angle insulated plunger hook clip

Description

RED Right angle insulated plunger hook clip.

100936-0

Banana Coupler

$4.50
Black 4mm insulated banana coupler

Description

BLACK 4mm insulated banana coupler.

100936-2

Banana Coupler

$4.50
Red 4mm insulated banana coupler

Description

RED 4mm insulated banana coupler.

100464

Power Connector

$15.00
5-pin Power Connector

Description

Spare 5-pin power connector for DI-718Bx, DI-720, DI-722, and DI-730 instruments.

R250

4-20mA current loop shunt resistor

$1.29
R250 Shunt Resistor

Description

Precision 250 Ω resistor, 0.1%. Learn More

100987

AC/DC Current Probe

$399.00
AC/DC Current Probe

Description

AC/DC Current Probe includes 9V battery, user manual, and 5 ft integral leads. Download the DataSheet (pdf) to learn more or goto the product page.

100454-25R

Power Supply

$49.00
5-pin Power Connector

Description

Spare 25W power supply (does not include power cable).

100480

Power Cable

$10.00
Power Cable

Description

Power cable (US) for 100454-25R power supply (DI-720 and DI-730 Data Acquisition Systems).

NIST-730-CAL

Calibration Certificate

$95.00
NIST Calibration Certificate

Description

Re-calibration Service, this calibration certificate is included with new instruments. NIST-traceable calibration certificate for all DI-730 data acquisition and data logger products. Shipping charges do apply when ordering online. Learn more about Calibrating your device.

Software

WinDaq

Data Acquisition Recording and Playback Software

Included FREE with your DI-720 purchase. Record up to 240 samples per second throughput. Installs drivers and WinDaq recording and playback software. Includes optional Add-on software with a valid installation key. Record higher sample rates with an Unlock Code (see Accessories).

WinDaq Data Acquisition Software

ActiveX Controls

Programming

FREE ActiveX programming solutions for Dataq Instruments products. Free sample programs available. Compatible with LabView.

DATAQ ActiveX Controls

WinDaq/XL

WinDaq-to-Excel Real Time Link

Real-time data logging directly to Microsoft Excel (supports MS Office 2003 or higher). No programming required. Free Trial Version. Purchase full version on WinDaq/XL product page.

WinDaq Data Acquisition Software

Advanced CODAS

$595

Advanced analysis software add-on to WinDaq Waveform Browser software. Allows calculated channels, derivative, integration, moving average, automatic file management, automatic scaling, and more.

Advanced CODAS

Specifications

Analog Inputs
Number of Channels: 8 wide range and 16SE/8DI general purpose
Input Type: Bipolar
Isolation: ±1000V input-to-output and channel-to-channel
Analog Resolution: 14-bit, 1 part in 16,384
Maximum normal mode voltage (VNM): 1500VDC or peak AC
Maximum common mode voltage (VCM): 1000VDC or peak AC
Max Sample Rate: 150,000 Samples per second throughput
Measurement Range Full Scale:
8 Wide Range Channels
Gain Setting Measurement Range*
1 ±1000V
10 ±100V
100 ±10V
1000 ±1V
10000 ±100mV
100000 ±10mV

* Usable over +8159 to -8160 ADC counts

General-purpose Channels
Gain Setting Measurement Range
1 ±10V
2 ±5V
3 ±2.5V
4 ±1.25V
Common Mode Rejection: 100dB min @ DC to 60Hz
Accuracy: Vin <e; 800V ±(0.25% of full scale range ±100µV)
Vin > 800V ±(0.5% of full scale range)
Channel-to-Channel Crosstalk: -75 dB @100kHz into 100 Ω unbalanced
Input Impedance: 10MΩ for all ranges
Max jitter between synched units: 5 microseconds
Analog frequency response (each channel):
Measurement Range Response
±1000, 100, 10, 1 V -3 db @ 5.0 kHz
±100 mV -3 db @ 4.50 kHz
±10 mV -3 db @ 1.30 kHz
Expansion channels -3 db @ > 125.0 kHz
Analog Outputs
Number of Channels 1
Resolution: 12-bit, 1 part in 4096 @ 250kHz
Output Voltage Range: ±10V
Output Impedance: 10Ω
Sample Throughput Rate: 40,000 standard; 80,000 bi-directional
Output Offset Voltage: 1 bit max @ 1kHz sample rate
Gain Error: 1 part in 16,384 @ 1kHz
Triggering
Pre-trigger length: 64,000 samples
Post-trigger length: 64,000 samples
Trigger channel: any channel
Trigger level hysteresis: 8-bit (256 counts)
Intelligent Oversampling
Modes: Signal averaging, maximum value, minimum value, last point, frequency, and RMS
Physical/Environmental
Dimensions: 7.29W × 9L × 1.52H inches
Operating Temperature: 0 to 70°C
Storage Temperature: -55 to 150°C
Humidity: 0 - 90% non condensing
Weight 5 lbs.
Software
Supported Applications: ActiveX Controls; WinDaq; WinDaq/XL; WinDaq Waveform Browser
