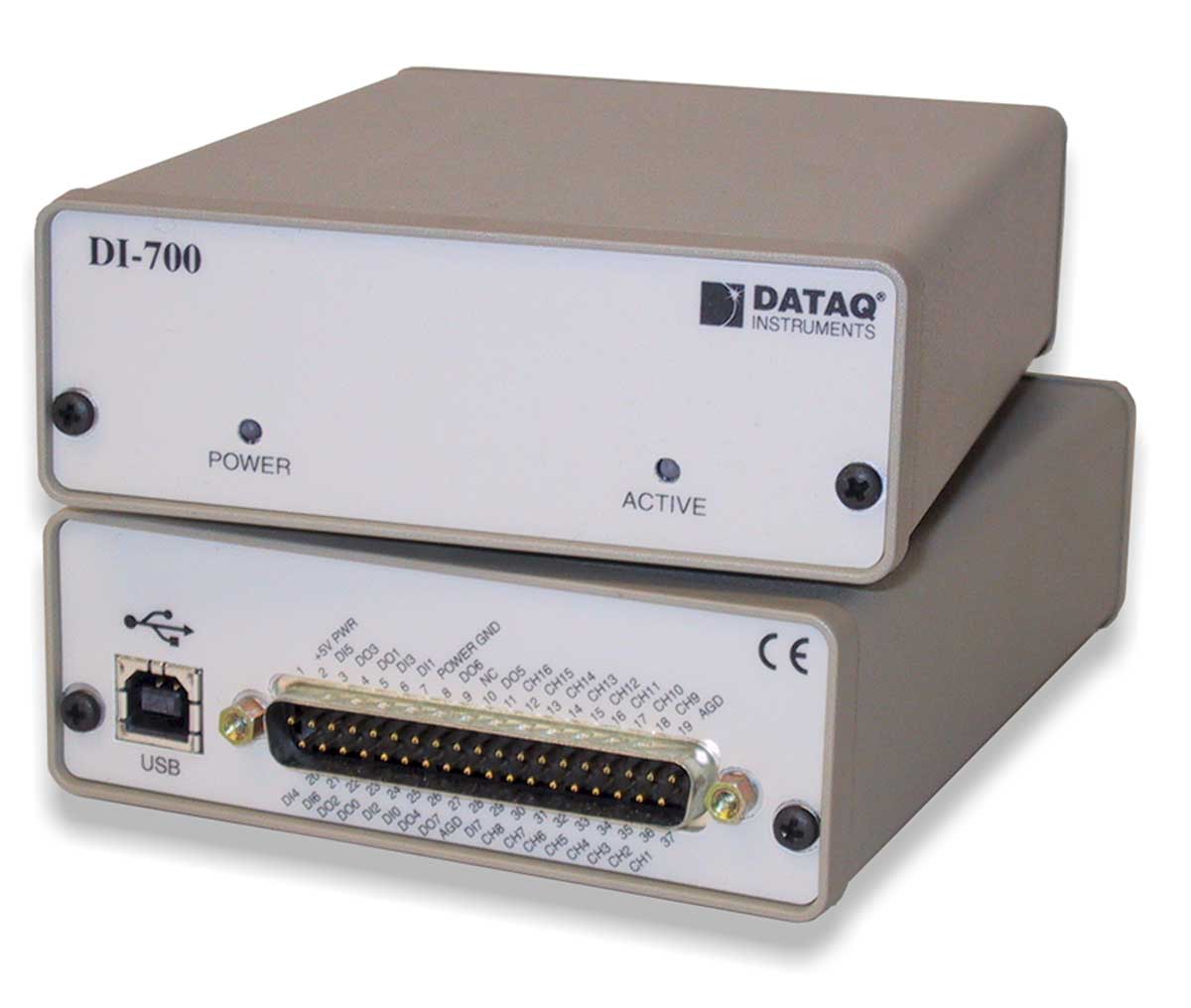

Model DI-700 - OBSOLETE (Please consider DI-2108)
Sixteen-channel USB data acquisition system
- Obsolete - replaced by the DI-710 Series
- Sleek, Low Profile Package Measures Only 1.5 × 4.25 × 5.5 Inches
- Connects To the USB Port of Any Desktop, Transportable, Notebook, or Laptop PC
- Powered By the USB Port
- Add the DI-75B To Pre-Condition Any Industrial Signal
- Use the AC/DC Current Probe for measuring in cable bundles and tighter areas
- 16 Single-Ended or 8 Differential Analog Inputs
- Maximum Sample Rate of 900 Hz*
- Measurement range of ±10mV to ±10V (-PGL Models) or ±1.25V to ±10V (-PGH Models)
- 16-Bit A/D Converter
- Includes WinDaq recording and playback software, communications cable, screwdriver, and documentation
Our DI-700 defines new price/performance standards for PCbased data acquisition. Designed to communicate with your PC through its USB port, the DI-700 offers 16 single-ended or 8 differential analog input channels that can be programmed individually for optimal use. Each of the DI-700's channels is capable of measuring ±10 volts full scale across four programmable gain selections, making it possible to measure a wide range of signals simultaneously. The PGH model supports gains of 1, 2, 4, and 8 while the PGL model supports gains of 1, 10, 100, and 1000. Sample at speeds up to 900 samples per second with high measurement resolution. The DI-700 also offers eight programmable digital input lines and eight programmable digital output lines. The USB interface provides the ultimate plug-and-play connection. It provides power for the DI-700 and allows you to connect/disconnect the DI-700 at will without rebooting the computer
