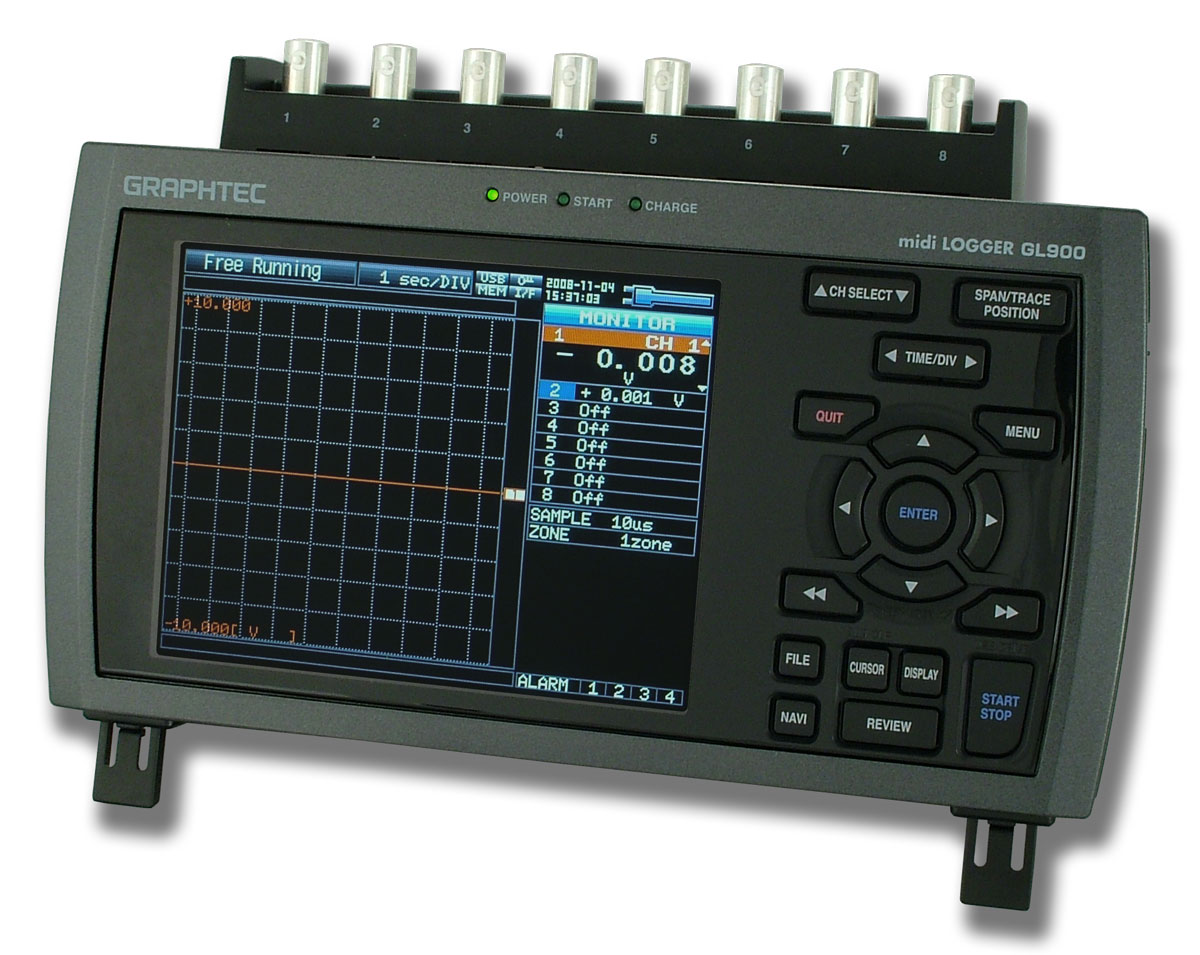

Model GL900 - OBSOLETE
Handheld 8-channel Data Logger
- Includes a GL900 data logger, an AC adapter, an NIST-traceable calibration certificate, and software on CD
- Built-in 5.7" TFT LCD Color Display
- Stand-alone or PC-connected operation
- High-speed Sampling
- Analog channel isolation
- 20mV to 500V full-scale measurements
- Four alarm outputs
- Optional battery pack
- USB and Ethernet PC interfaces.
- Programmable measurements per analog channel:
- 15 voltage ranges over ±20 mV to ±500 V full scale
- Type J,K,T,R,S,B,E,N,W thermocouples
- PT100, PT1000 3-wire RTD
- Four discrete/counter/frequency input channels
- Four alarm outputs
- Sample rates up to 100 kHz per channel
With its color monitor and internal memory the GL900 is a self-contained, compact, lightweight, multi-channel data logger with 8 analog measurement channels, each with input-to-output and channel-to-channel isolation. Measurements per channel of 20mV to 500V FS across 14 programmable ranges allow the GL900 to adapt to a wide range of signal types, including thermocouple-based temperatures (K,J,E,T,R,S,B,N,W) and process current (4-20 mA). Up to four pulse channels can count and measure speed using an optional cable, and Humidity measurements are also possible with an optional sensor. The GL900 may be configured to trigger up to four different alarm outputs as a function of measured values.
The GL900 allows data to be recorded to internal high-speed volatile RAM memory (64 MB) at rates as fast as 100,000 Hz. The unit also provides built-in non-volatile memory (256 MB) and accepts external USB flash drives (2 GB maximum file size) for lower speed sampling as fast as 1,000 Hz. The minimum sample rate for all memory configurations is one sample per minute.
The GL900 features built-in USB and Ethernet ports to facilitate data transfer to a connected PC either in real time or from its memory for analysis and archiving. Measurement protocols may also be uploaded from the PC to the instrument. An optional battery pack allows power-independent operation and failsafe measurement continuity during a power failure.

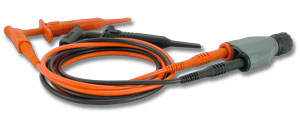

BNC to Banana Jack
BNC to banana jack Adapter. Safety insulated male BNC to dual 4mm banana jacks. For use with the GL900 midi Data Logger.
DC power cable and adapter kit for use with the GL900 Data Logger.
2 Battery Packs
Two (2) 7.2V/2900mAh lithium battery packs. Only one B-569-2 is required to power the GL900. Please Note: Continental U.S. shipping ONLY.
2-meter logic/alarm cable with bare tips.
DC Power Cable
2-meter DC power cable with bare tips.
3-meter humidity sensor with dedicated power connector. Learn More.

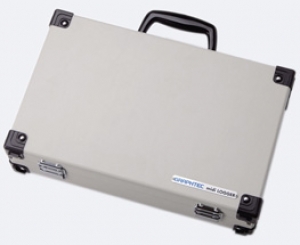

Carrying Case. Interior padding and rugged exterior for safe transportation of your data logger.
AC Power Supply
Spare (one is already included with the instrument) AC power supply for GL220, GL240, GL820, GL840, and GL900 products.
4-20mA current loop shunt resistor
Precision 250 Ω resistor, 0.1%. Learn More
GBD to WDH
FREE Graphtec to WinDaq High Resolution (GBD - to - WDH) File Conversion Utility (beta version) converts files recorded with a Graphtec device to WinDaq Playback for analysis.
Data Logger Software
Visit the Support Download page at Graphtec for software (both links below take you to another site).
Sub-zero Thermocouple Measurements
Boot Your Graphtec Data Logger in USB Drive Mode
Back-up GL820 and GL900 Data Using Windows Built-in FTP Server
Convert GBD files (created by Graphtec Data Loggers) to WDH (WinDaq) files

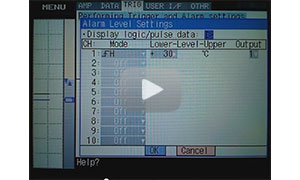

Learn how to set up an Alarm with Graphtec Data Loggers.
Learn how to configure channels with Graphtec Data Loggers.
Graphtec APS Software
APS PC-based software provides access to all the features on the front panel, and more.
Record at Time

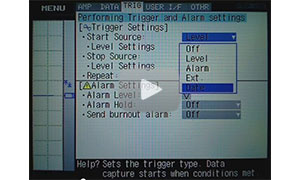

Learn how to record at a specified time with Graphtec Data Loggers.

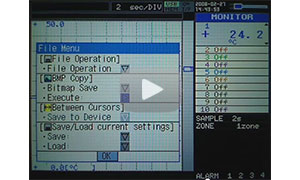

Learn how to take a snapshot of the display with Graphtec Data Loggers.

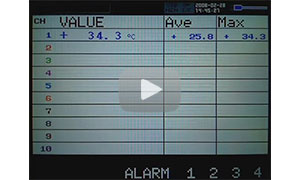

Learn how to generate and view statistics with Graphtec Data Loggers.
Learn how to setup triggered storage with Graphtec Data Loggers.

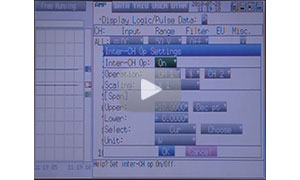

Learn how to display calculated values in Graphtec Data Loggers.

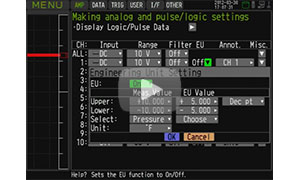

Learn how to display engineering units with Graphtec Data Loggers.
