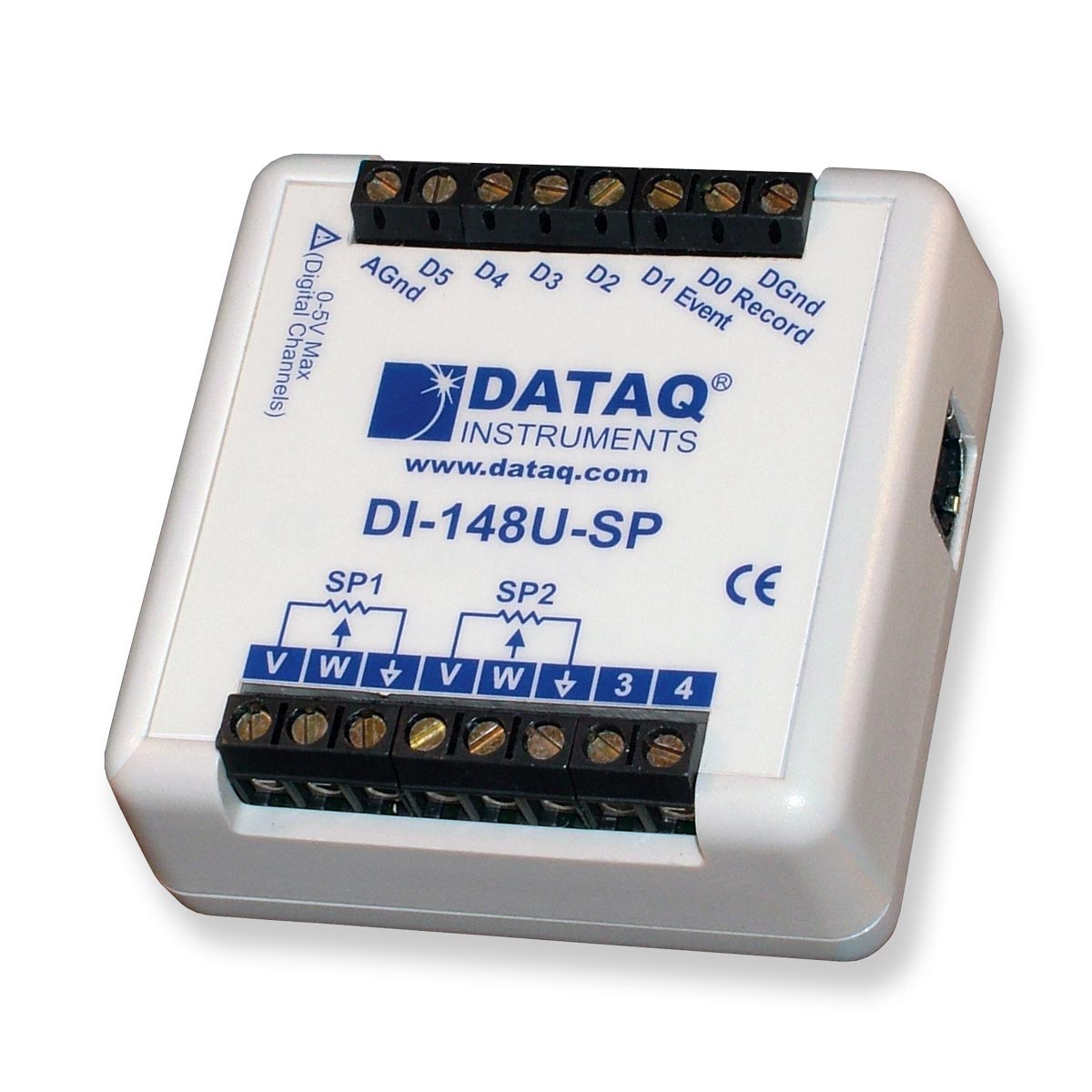

Model DI-148U-SP - OBSOLETE (Please consider DI-2108)
USB Data Acquisition Starter Kit with Two String Pot Inputs
- Obsolete - no direct replacment products available
- Two string pot inputs plus two general purpose inputs (±10V range)
- Low-cost, compact, data acquisition starter kit.
- Record Data With 10 Bits of Measurement Accuracy at Rates Up to 14,400 Samples/Second. WinDaq High Speed Acquisition software required for recording rates over 240Hz.
- Convenient USB Interface.
- Six digital bits for general purpose I/O.
- Includes WinDaq recording and playback software, communications cable, screwdriver, and documentation
The DI-148U breaks new ground in price and performance, offering advanced features usually reserved for more expensive instruments. They include, but are not limited to, a channel scan list, high sample rate throughput, and an advanced computer interface. These features combine to produce a robust instrument that can be applied to nearly any data acquisition situation where pre amplified signals need to be acquired to a PC.
This extremely inexpensive instrument offers eight single-ended analog input channels (each with a fixed ±10 volt full scale range), analog-to-digital conversion resolution of 10 bits (allowing a minimum voltage sensitivity of ±19.5 mV), six bidirectional TTL ports that may be used for general purpose control, and a maximum sample throughput rate of up to 14,400 Hz. No other instrument offers so much for so little.
