Model EL-WiFi-DTC - (21CFR option available)

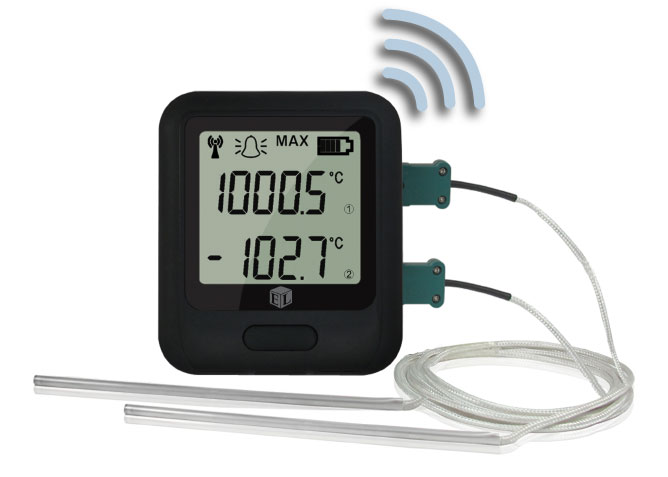

Wireless Dual Channel Thermocouple Temperature Data Logger Supports TC types J, K, N, and T

$329.99

Select Data Security:

  • Includes an EL-WiFi-DTC data logger, a plastic mounting bracket, a 1-meter USB cable, two K-type thermocouple probe (1.5-meter), a rechargeable battery (pre-installed), and downloadable software (CALIBRATION CERTIFICATE sold separately under ACCESSORIES tab and must be ordered at time of purchase)
  • Two 1.5 meter K-type probes included (measures 0 to 400°C (32 to 752°F))
  • Supports J, K, N, and T type thermocouple probes
  • -270 to +1300°C (-454 to +2372°F) temperature measurements (probe dependent)
  • Ingress Protection Rating of 44
  • Built-in display shows current, min/max readings, alarm states
  • Wireless communication to any PC using WiFi
  • 802.11b-compliant for universal compatibility
  • Built-in, rechargeable battery for independent deployment
  • Seamlessly uploads memory to host PC at programmable intervals
  • Huge buffer memory of over 1,000,000 readings tolerates disconnects
  • Programmable high/low alarm limits
  • Built-in USB interface for battery charging and initial configuration
  • Free configuration, review, and Excel-export software
  • Supplied with mounting bracket and USB cable
  • Cloud-based Device Management allows you to view recorded data and configure your devices over the internet (treated as one device by the cloud system)
  • 21 CFR compliant Data Audit Trail available for Cloud-based data (Learn More)
  • Discount Schedule
  • Get 10% off your Lascar Data Logger with coupon code EL10USB. View details.
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page

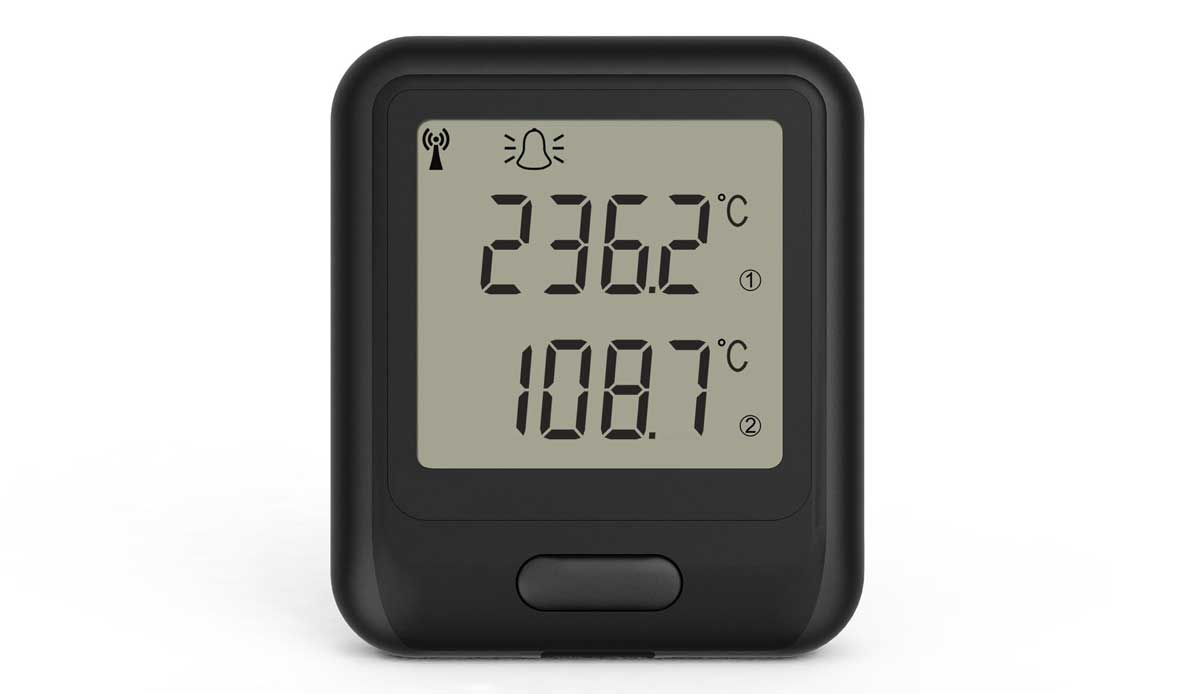

EL-WiFi-DTC Data Logger
This data logger has 0.1 degree of resolution.This data logger has two input channels.This data logger measures thermocouple temperatures type J, K, N, and T.This data logger can record one sample every 10 seconds.
This data logger works with a wifi connection.This data logger records data to the cloud.This data logger has a USB interface.21 CFR Part 11 Option Available.
Get same day shipping when you order this data logger before 3PM ETThis data acquisition system has a 30-day Money back guaranteeUse coupon code EL10USB for 10% off your Lascar data logger purchase.

Description

Model EL-WiFi-DTC is a WiFi-based, dual-channel wireless data logger for time and date-stamped temperature measurements using a Thermocouple probe (J, K, N, and T types supported). It adheres to the 802.11b standard and can integrate with any new or existing WiFi network. The data logger is powered by a built-in, re-chargeable battery to allow purely stand-alone performance, and is packaged in a small, IP44-rated enclosure. They are fully programmable, initially via a built-in USB interface, and thereafter wirelessly via the WiFi link using included Windows-based software. Programmable parameters include a unique logger name, °F or °C, logging rate, report rate, as well as temperature alarms. The same software acts as a repository for temperature data, which the data logger uploads at programmable periodic intervals. Built-in memory seamlessly buffers over 120 days of readings when contact is lost with the WiFi network, the software, or the PC on to which the software is running. When the connection is re-established the data logger transparently uploads its memory contents to the PC while still logging data. Data is stored on the host PC in comma-separated value (CSV) format, and the host program allows the graphical review of acquired temperature data, time and date of acquisition, and seamless data export to Microsoft Excel.

Accessories

EL-WiFi-Alert

WiFi Alarm

$209.99
EL-WiFi Alert

Description

WiFi audible and visual alarm. Includes unit, plastic mounting bracket, 1m USB cable for configuration and recharging (via USB port on CD), and software via download. Learn more.

EL-P-TC-K

Thermocouple Probe

$21.99
K-type Thermocouple Probe

Description

K-type thermocouple probe. 1.5 meters (4.9 feet). View Dimensions.

DI-TCT

Thermocouple Connector

$2.99
Miniature Thermocouple Connectors

Description

Type T miniature male thermocouple connector.

DI-TCK

Thermocouple Connector

$2.99
Miniature Thermocouple Connectors

Description

Type K miniature male thermocouple connector.

DI-TCJ

Thermocouple Connector

$2.99
Miniature Thermocouple Connectors

Description

Type J miniature male thermocouple connector.

101085

AC Power Supply

$19.00
AC power supply

Description

Optional AC power supply (USB to AC) for stand-alone applications and charging EL-WiFi Series products. Includes US adapter.

101017-RPA

US Power Adapter

$4.00
US Power Adapter

Description

Spare US Adapter for AC power supply 101017-2 and 101085.

101017-RPE

EU Power Adapter

$4.00
European Power Adapter

Description

Spare European Adapter for AC power supply 101017-2 and 101085.

101017-RPK

UK Power Adapter

$4.00
UK Power Adapter

Description

Spare UK Adapter for AC power supply 101017-2 and 101085.

101017-RPS

Australian Power Adapter

$4.00
Australian Power Adapter

Description

Spare Australian Adapter for AC power supply 101017-2 and 101085.

CAL EL-USB-TEMP-1

Calibration Certificate (1st Cal Value)

$40.00

Select Temperature Point:

Temperature Calibration Certificate

Description

Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase this first point option first for each device, and then additional points per device as required. Standard points are $40. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.

CAL EL-USB-TEMP-2

Calibration Certificate (2nd Cal Value)

$25.00

Select Temperature Point:

Temperature Calibration Certificate

Description

Before purchasing please read the blog post EL-USB Data Logger Series and Calibration Certificates. NIST traceable calibration certificate (first point) in compliance with ISO10012-1, ISO 17025, and MIL-STD-45662A. Purchase the first point option first (CAL EL-USB-TEMP-1) for each device, and then additional points per device as required. Standard points are $25. Custom points may be specified and entered into the special instructions section of our online store and incur an additional charge.
Please Note: Calibration certificates cannot be returned for a refund. These calibration certificates have a typical lead time of 3-4 weeks.

Software

EL-WiFi-WIN

Configuration Software

Configuration software for EL-WiFi Data Loggers. Visit the Support Download page at Lascar Electronics for software (takes you another site).

Lascar WiFi Software

EasyLog Cloud

Files Thru the Air

Cloud-based EL-WiFi and EL-MOTE device configuration and management software.

Lascar WiFi Cloud

EasyLog Cloud

Configuration Software

Cloud-based device management software and Android App for Lascar EL-Mote and EL-Wifi Data Loggers.

Lascar EasyLog Software

Specifications

Channels: Two
Battery Life: 6 months (Typical between charging cycles, but could be less if frequent transmissions)
USB Supply Voltage: 4.5 to 5.5 VDC
Operating Temperature Range (sensor): -20 to +60°C (-4 to +140°F)
Temperature Measurement Range (dependent on probe): -270 to +1300°C (-454 to +2372°F)
Measurement Resolution: 0.1°
Display Resolution: 0.1°
Accuracy (logger error): ±1.5°C
Logging Rate: 1 sample every 10 seconds
1 sample every minute
1 sample every 5 minutes
1 sample every 30 minutes
1 sample every hour
1 sample every 6 hours
1 sample every 12 hours
Transmission Period (User Configurable): 1 minute
2 minutes
5 minutes
10 minutes
15 minutes
30 minutes
1 hour
1.5 hours
2 hours
3 hours
4 hours
5 hours
6 hours
12 hours
24 hours
Supported Security Standards: WEP 64 bit; WEP 128 bit; WPA-PSK; WPA2-PSK
Included K-Type TC Probe Accuracy: ±1.5°C
Included K-Type TC Probe Range: 0 to +400°C (+32 to +752°F)
Included K-Type TC Probe Length: 1500 mm (59 inches)
Number of Loggers per PC: 253 Loggers

Videos

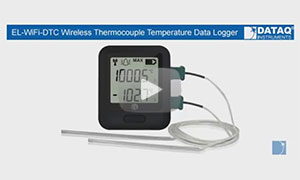

EL-WiFi-DTC
EL-WiFi-DTC Dual Channel Thermocouple Data Logger

Introducing the EL-WiFi-DTC Dual Channel Thermocouple Temperature Data Logger.
EL-WiFi Configuration Software
Configuration Software

Software allows you to configure your instrument as well as download and analyze data.
Files through the air cloud service
Files Thru the Air

Configure and manage el-wifi-data loggers over the internet. You can also view and store data in the cloud.
EL-WiFi-Alert
EL-WiFi-Alert

Provides an audible and visual indication when an alarm level is reached on an EL-WiFi Data Logger.
