Model DI-715B - OBSOLETE

Eight-channel Data Acquisition system for DI-5B Amplifiers

Out of
Stock

OBSOLETE

  • Obsolete - replaced by the DI-718B Series
  • Low-Cost, Portable, Ethernet Data Logger (USB to Ethernet converter available). This product is similar to the DI-710 Data Logger but with Signal Conditioned inputs. See also the DI-718B series for many of the same features but in a much smaller package using DI-8B modules.
  • 8 signal-conditioned analog inputs. Add 8 more with the DI-75B backpack.
  • Stand-alone data logger option allows in-the-field measurements to be saved to Secure Digital Cards (SD).
  • 14-bit analog to digital conversion.
  • Use the AC/DC Current Probe for measuring in cable bundles and tighter areas.
  • Includes WinDaq Software.
  • Record up to 10,000 samples per second (assumes SD latencies of 80 milliseconds or less) with Stand-alone models or up to 4,800 samples per second with PC-connected instruments (WinDaq/HS required to achieve recording rates over 1,108 Hz with PC-connected instruments).
  • Wide variety of measurement functions and ranges based on DI-5B module selections.
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page

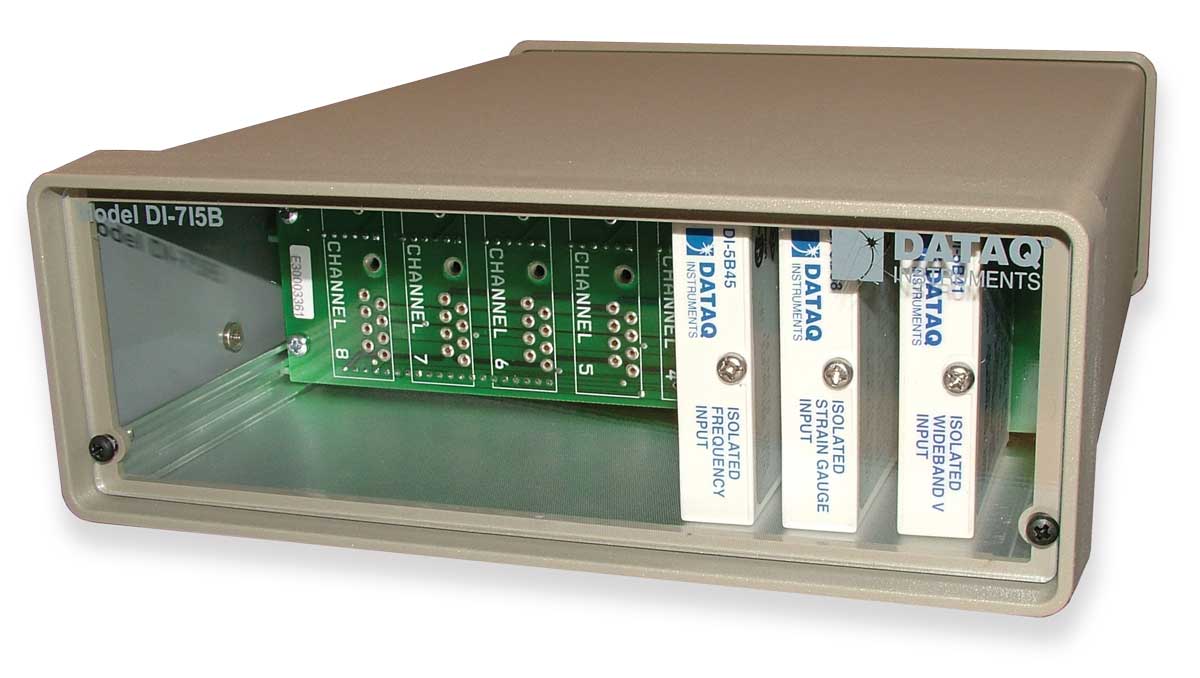

DI-715B Data Logger
This data logger is manufactured in the United States of America

Description

The DI-715B is an eight-channel, signal conditioned Ethernet (USB to Ethernet converter available) data logger/data acquisition system. Each DI-715B accepts up to eight isolated, plug-in (DI-5B) signal conditioning modules to include virtually any isolated, industrial-type signal. Because DI-5B modules are identical in pinout and size, they can be mixed or matched in any combination. Choose from thermocouple, true rms, voltage, strain, frequency, process current, RTD, potentiometric, or DC transducer—whatever suits your application. A clear acrylic front panel allows easy identification of all installed 5B modules. Over 90 models available.

The DI-715B Series provides the option of PC-connected or stand-alone data logger operation. Instruments with the standalone data logger option feature a built-in socket that accepts standard Secure Digital (SD) memories to which acquired data may be stored without a connected PC. SD memories are the same commonly available mass storage devices used with digital cameras and MP3 players. Memories ranging in size from 16MB to 2GB are supported. Instruments without this option must remain tethered to a PC’s Ethernet port during data acquisition and use the PC’s own program and memory to store acquired data. Software selectable gain ranges of 1, 2, 4, and 8 are supported.

Expand the DI-715B to 16 channels with one DI-75B Backpack using optional stacking brackets and handles.

Accessories

DI-5B Amplifiers

Signal Conditioning Modules

$164–$297 ea.
DI-8B Amplifier Modules

Description

DI-5B amplifiers offer the convenience to mix and match modules based upon measurement function and range to meet any application requirement, from the most simple to the most complex.

101014-2G

2GB SD Card (High Speed)

$45.00
2GB High Speeed SD Card

Description

High-speed 2GB SD memory card allows recording to the full stand-alone sample rate limit of the host data logger.

101014-2GS

2GB SD Card

$19.00
2GB SD Card

Description

2GB SD memory card allows recording up to a 2 kHz sample throughput rate. See model 101014-2G for a faster memory solution.

101014-CR

SD Card Reader

$25.00
SD Card Reader

Description

USB Secure Digital Memory Card Reader connects to the USB port of any PC and allows data recorded to SD memory to be transferred to the PC for review and analysis.

WinDaq/Unlock

DI-715B High Speed Unlock Code

$595.00
WinDaq Unlock Code

Description

Unlocks WinDaq to allow recording speeds up to 10 kHz throughput. Unlock Code ONLY. No CD will be shipped. Please Note: If you are ordering this software for a device you already own, you MUST provide the serial number of your device under "Order Notes" during checkout to receive the unlock code. Please allow one (1) business day for processing.
