Model DI-145 - OBSOLETE (replaced by DI-1100)

Four-channel USB Data Acquisition Starter Kit

Out of
Stock

OBSOLETE

  • Includes a DI-145 instrument, a 6-foot USB cable, a screwdriver for signal connections, and downloadable WinDaq software
  • Obsolete - replaced by the DI-1100
  • Low-cost, Compact USB Data Acquisition Starter Kit
  • Four ±10 V Differential Analog Inputs
  • 10-bit Resolution
  • Up to 240 Hz Sample Rate
  • 2 Dedicated Digital Inputs
  • Analog inputs are protected to ±150 V peak (transient, one minute or less; ±75V peak continuous)
  • Digital inputs are protected to ±30 VDC or peak AC
  • Provided with WinDaq Software
  • CE approved.
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page

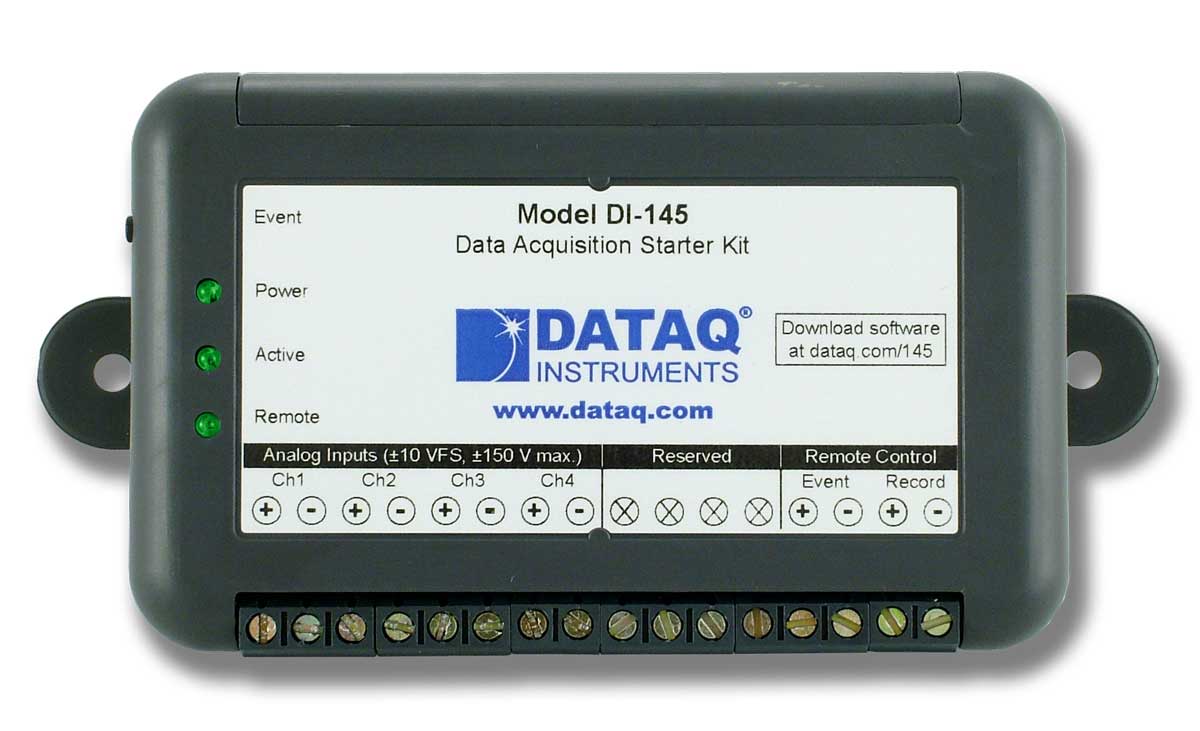

DI-145 Starter Kit DAQ
This data logger is manufactured in the United States of America

Description

The DI-145 is a new product in a long line of low-cost starter kits from DATAQ Instruments. Suitable for measuring preamplified analog signals, the DI-145 in tandem with the included WinDaq software allows real time data acquisition, playback, and analysis performance equal to or better than other products that cost ten times or more than its low price. Predecessors of this instrument have been sold to over 20,000 hobbyists and professionals for countless data acquisition applications around the world. The DI-145 continues this legacy with an improved interface, and noise-cancelling differential analog inputs that are transient-protected to ±150 VDC or peak AC. This is our toughest and most tolerant starter kit ever.

The DI-145 offers four analog input and two discrete (digital) input channels. The analog inputs offer a fixed measurement range of ±10VFS, and are multiplexed to an integrated 10-bit ADC. Both analog and digital inputs are protected to ±150 and ±30 VDC or peak AC respectively. Sample rates as slow as 2.23 per min. and as fast as 240 per sec. (divided by the number of enabled channels) are supported. Included WinDaq software allows a real time display of any combination of analog channels, and the ability to stream acquired data to disk in recorder-like fashion. The DI-145’s two digital inputs are dedicated for remote stop/start and remote event operations using WinDaq software. WinDaq also includes software to review recorded data files, including waveform analysis and data file export to Microsoft Excel and other applications.

Accessories

R250

4-20mA current loop shunt resistor

$1.29
R250 Shunt Resistor

Description

Precision 250 Ω resistor, 0.1%. Learn More

FC-1

USB Ferrite Choke

$5.00
Ferrite Choke

Description

Ferrite choke reduces interference for USB-based data acquisition products.

Software

WinDaq

Data Acquisition Recording and Playback Software

Included FREE with your DI-145 purchase. Records at 240Hz maximum sample rate.

WinDaq Data Acquisition Software

Drivers

Drivers only Download

Installs drivers for all contemporary data acquisition hardware products that support WinDaq software.

Starter Kit Drivers

WinDaq/XL

WinDaq-to-Excel Real Time Link

Real-time data logging directly to Microsoft Excel (supports MS Office 2003 or higher). No programming required. Free Trial Version. Purchase full version on WinDaq/XL product page.

WinDaq Data Acquisition Software

DATAQ SDK .Net

Solutions for .NET Programming Environments

FREE .Net control communicates directly with your DATAQ Instruments device using any .Net programming language. Detailed sample programs included. Fully documented help file. Requires .NET Version 4

DATAQ SDK DOT NET

MATLAB Example Program

With SDK .Net Class

FREE DATAQ SDK .Net class example program with MATLAB®. Does not require MathWorks' Data Acquisition Toolbox.

DATAQ SDK MATLAB DOT NET

Videos

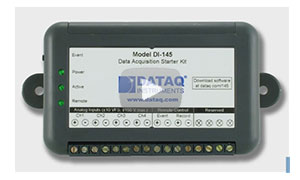

Introduction to the DI-145 USB Data Acquisition Starter Kit
Overview of the DI-145

Introducing the DATAQ Instruments DI-145 Data Acquisition Starter Kit.
Exporting Data to Excel
Export data to Excel

Learn how to export data from WinDaq Waveform Browser to Microsoft Excel.
Introduction to WinDaq Data Acquisition Software
WinDaq Data Acquisition Software

Introduction to WinDaq Data Acquisition Software.
