Model DI-2008

Thermocouple and Voltage DAQ and Data Logger System, 4-8 Isolated Analog Inputs, ±50 V, 16-bit Resolution, 200Hz, 7 D I/O, Free WinDaq Software

$299.00

Select Channels:

Can only record 4 channels using WinDaq software.
Total channel count includes analog and digital channels.
ChannelStretch™ NOT available on 4-channel devices.

  • Includes a DI-2008 instrument, a 6-foot USB cable, a screwdriver for signal connections, an NIST-traceable calibration certificate, and downloadable WinDaq software
  • Four or Eight differential and isolated analog input channels.
  • Seven bi-directional digital input ports, including:
    • Counter input for totalizing applications
    • Rate input for frequency/flow/rpm applications
  • ChannelStretch™ channel expansion to 128 analog and 112 digital channels (synchronization only available with other DI-2008 units - Unlock code required per device - see Accessories)
  • Programmable voltage and thermocouple measurements per channel
  • 10 mV to 50 V programmable range per channel in 12 steps

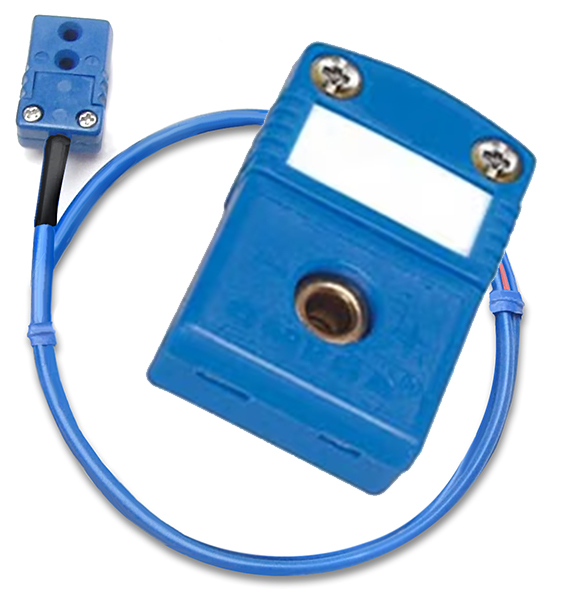

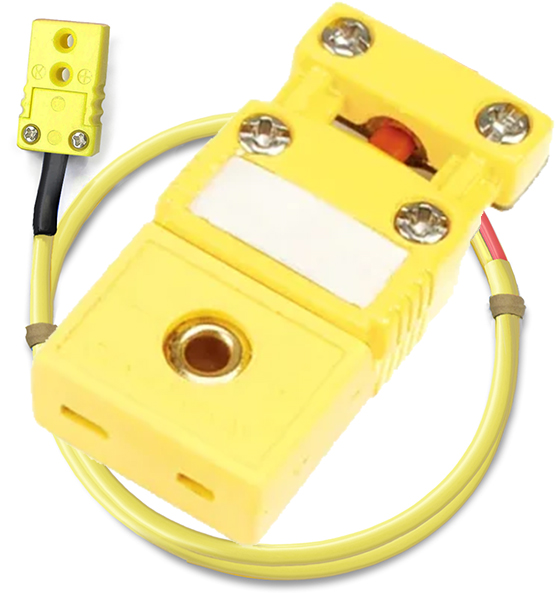

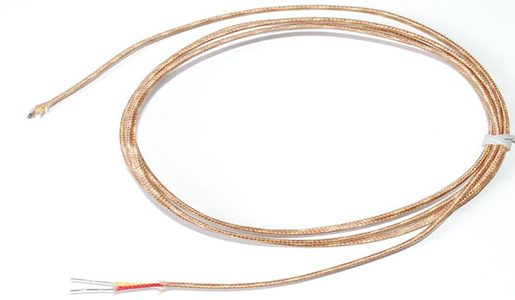

  • Programmable support for type J, K, T, B, R, S, E, N thermocouples per channel
  • High resolution (16-bit) measurements
  • 2000 Hz sample throughput for a single channel and 200 Hz for two or more
  • USB interface
  • Included WinDaq software for ready-to-run measurements
  • Use HMP60 Probe for Temperature and Humidity Measurements
  • Included .NET class
  • Fully documented device protocol supports other operating systems
Tweet this page Like this product on Facebook Share this page on LinkedIn Email this page
DI-2008 Thermocouple DAQ
This data logger features 8 analog input channelsThis data acquisition system is expandable with ChannelStretch allowing you to connect multiple units and synchronize data recording.This data logger features 7 digital ports

This data logger has a USB interfaceGet same day shipping when you order this data logger before 3PM ETThis data acquisition system has a 30-day Money back guaranteeThis data logger is manufactured in the United States of America

Description

DI-2008 USB Thermocouple Data Acquisition system with Windaq software. Features 4 or 8 analog input channels programmable as a thermocouple or voltage input, 16-bit measurement resolution, and a full scale range of ±10mV to ±50V for voltage measurements or Thermocouple types J, K, T, B, R, S, E, or N. Includes a DI-2008 instrument, a 6-foot USB cable, a screwdriver for signal connections, an NIST-traceable calibration certificate, and downloadable WinDaq software

Eight analog input channels adapt to a wide range of measurement types and applications. Each channel can be independently programmed for a thermocouple or voltage measurement. Programmed as a voltage channel you can select one of twelve measurement ranges from ±10 mV to ±50 V. A range of ±5 V supports 4-20 mA measurements using typically a 250 Ω shunt resistor (model R250 sold separately). Programmed as a thermocouple channel you can select from eight thermocouple types: J, K, T, B, R, S, E, or N. Linearization and junction compensation are automatically applied by the DI-2008 for the selected TC type to deliver values scaled in either °C or °F. Rounding out the DI-2008, a built-in 15 V sensor excitation power supply simplifies external wiring and further reduces overall system cost. Finally, all analog measurements benefit from a 16-bit ADC resolution to reveal even the smallest signal variations. Virtually any measurement will experience a difference in ground potential between the instrument, the signal source, and even between signal sources. Known as common mode voltages, they cause noisy measurements in the best case or damage to the instrument in the worst case unless it’s specifically designed to tolerate them like the DI-2008. Each DI-2008 analog input is electrically isolated from other channels and from ground for safe and accurate measurements in the presence of common mode voltages. Channel isolation means that each analog input is free to float to an independent common mode voltage imposed upon it by the signal source up to 120 V rms, and still provide an accurate and noise-free measurement.

The DI-2008 provides 7 digital ports, each configurable as an input or a switch. Input protection is provided to 30 V. Configured as a switch a digital port can be used to control external loads up to 30 V @ 100 mA, and the switch can be controlled asynchronously without interrupting the scanning process. When activated as inputs two ports allow dual functionality to be used as discrete inputs, or one as a counter and the other a rate input. The rate input features a 50 kHz maximum measurement allocated over twelve programmable measure-ment ranges (10 Hz to 50 kHz full scale). The counter input provides 16-bit resolution and a terminal count value of 65,535. The discrete, counter, and rate inputs are members of the same internal scan list used by the analog input channels. This means that all enabled elements are acquired synchronously, which allows meaningful comparisons between analog and digital channels. For example, the rate input mea-suring engine speed allows rpm data to be acquired synchronously with analog data.

Accessories

WinDaq/Unlock

DI-2008 Unlock Code for 8 Channels

$200.00
WinDaq Unlock Code

Description

Unlocks WinDaq to record all 8 channels using WinDaq. Unlock Code required for each device. Unlock Code ONLY. No CD will be shipped. Please Note: If you are ordering this software for a device you already own, you MUST provide the serial number of your device under "Order Notes" during checkout to receive the unlock code. Please allow one (1) business day for processing.

WinDaq/Unlock

DI-2008 Unlock Code for ChannelStretch™

$299.00
WinDaq Unlock Code

Description

Unlocks WinDaq for 8 channels and ChannelStretch™ capability allowing you to record synchronous data with multiple 8-channel DI-2008 units (only DI-2008 units can synchronize with the DI-2008). Unlock Code required for each device. Unlock Code ONLY. No CD will be shipped. Please Note: If you are ordering this software for a device you already own, you MUST provide the serial number of your device under "Order Notes" during checkout to receive the unlock code. Please allow one (1) business day for processing.

WinDaq/Unlock

DI-2008 Unlock Code for ChannelStretch™

$99.00
WinDaq Unlock Code

Description

Unlocks WinDaq for ChannelStretch™ capability allowing you to record synchronous data with multiple 8-channel DI-2008 units (only DI-2008 units can synchronize with the DI-2008). REQUIRES 8-CHANNEL DEVICE. Unlock Code required for each device. Unlock Code ONLY. No CD will be shipped.

R250

4-20mA current loop shunt resistor

$1.29
R250 Shunt Resistor

Description

Precision 250 Ω resistor, 0.1%. Learn More

CBL-100803

USB Cable

$4.99
Dual Ferrite USB cable for ChannelStretch

Description

Optional USB Cable for use with ChannelStretch™. Dual ferrite cores provide maximum protection against ground bounce that could lockup your PC's USB port during data acquisition. 20.4-inch (520 mm) overall cable length. Recommended whenever products are deployed in our ChannelStretch™ configuration.

FC-1

USB Ferrite Choke

$5.00
Ferrite Choke

Description

Ferrite choke reduces interference for USB-based data acquisition products.

CBL-100641-16

USB Extension Cable

$29.00
16-foot USB 2.0 extension cable.

Description

16-ft USB Extension Cable. USB 2.0 Type A. Daisy chain up to 5 cables for extended length.

2000310

7 Port USB Hub

$49.00
USB Hub

Description

Powered 7 port USB hub to synchronize multiple USB devices. Please note: Not all DATAQ Instruments devices support synchronization - check your product datasheet or product page for detailed information. Note: Provided with a US ac adaptor only, and is not suitable for use in countries that require an ac mains connector other than the US type.

HMP60

Temp/RH Probe

$260.00
Temperature and Humidity probe

Description

Temperature and humidity probe measures -40 to +60 °C and 0 to 100% RH. Learn more.

101086

AC/DC Adapter

$15.00
AC/DC Adapter for Sensor Excitation

Description

AC Adapter for Sensor Excitation. Input: AC 100V-240V 50/60Hz; Output: 12V DC 0-2A 24W. Power Cable Length: 36.6 inch (0.9m).

NIST-2008-CAL

Calibration Certificate

$95.00
NIST Calibration Certificate

Description

Re-calibration Service, this calibration certificate is included with new instruments. NIST-traceable certificate for model DI-2008 Thermocouple and Voltage data acquisition product. Includes before and after data. Shipping charges do apply when ordering online. Learn more about Calibrating your device.

Software

WinDaq

Data Acquisition Recording and Playback Software

Included FREE with your DI-2008 purchase. Record all channels at 2,000 S/s for a single analog channel or 200 S/s for more than one analog channel. Installs drivers and WinDaq recording and playback software. Unlock code required for ChannelStretch™.

WinDaq Data Acquisition Software

Drivers

Drivers only Download

Installs drivers for all contemporary data acquisition hardware products that support WinDaq software.

Starter Kit Drivers

WinDaq/XL

WinDaq-to-Excel Real Time Link

Real-time data logging directly to Microsoft Excel (supports MS Office 2003 or higher). No programming required. Free Trial Version. Purchase full version on WinDaq/XL product page.

WinDaq Data Acquisition Software

DATAQ SDK .Net

Solutions for .NET Programming Environments

FREE .Net control communicates directly with your DATAQ Instruments device using any .Net programming language. Detailed sample programs included. Fully documented help file. Requires .NET Version 4

DATAQ SDK DOT NET

Python Example Programs

Available on GitHub

FREE Python example programs using the fully documented device protocol. All sample programs are well-commented to help you get up and running quickly.

DATAQ Python Example Programs

MATLAB Example Program

With SDK .Net Class

FREE DATAQ SDK .Net class example program with MATLAB®. Does not require MathWorks' Data Acquisition Toolbox.

DATAQ SDK MATLAB DOT NET

Specifications

Analog Inputs
Number of Channels: 8
Configuration: Differential, Isolated
Programmable measurements per channel: Voltage, Thermocouple
Programmable thermocouple types and measurement range per channel:

Over 25 ±5 °C ambient temperature range.
Stable ambient temperature.
Following 30 minutes warm-up.
Excluding common mode error.
Excluding thermocouple error.
Thermocouple Type Temperature Measurement Range (°C) Accuracy (°C)
J -190 to 1200 ±(0.1% of span + 2)
K -180 to 1360 ±(0.1% of span + 2)
T -190 to 400 ±(0.1% of span + 1)
B 600 to 1000
1001 to 1810
±(0.2% of span + 4)
±(0.1% of span + 3)
R -40 to 300
301 to 1760
±(0.2% of span + 6)
±(0.1% of span + 3)
S -40 to 400
401 to 1750
±(0.2% of span + 6)
±(0.1% of span +3)
E -160 to 990 ±(0.1% of span + 1)
N -170 to 50
51 to 1290
±(0.1% of span + 3)
±(0.1% of span + 1)
Programmable voltage measurement ranges per channel: ±10 mV, ±25 mV, ±50 mV, ±100 mV, ±250 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V, ±25 V, ±50 V
Voltage measurement accuracy:
At 25 °C ambient temperature.
Following 30 minutes warm-up.
Excluding common mode error.
±(0.05% of range + 10 µV)
Input impedance: 1 MΩ, all ranges
Isolation: Input-to-output, Channel-to-channel
Absolute maximum input without damage: 120 V rms
Maximum common mode voltage: 120 V rms
Min common mode rejection (330Ω unbalance): >100 dB (DC to 60 Hz)
Channel-to-channel crosstalk rejection: (Rsource ≤ 330 Ω; Freqsource ≤ 60 Hz) > 100 dB at any throughput
Digital Inputs
Number of ports: 7
Type: MOSFET switch
Configuration: Programmable as an input or switch
Pull-up value: 4.7 KΩ
Isolation: None
Input high voltage threshold: 2.4 V minimum
Input low voltage threshold: 0.8 V maximum
Absolute max input without damage: 0 ≤ V ≤ 30 V
Count/Rate
Digital port assignment: Count: Port 2 configured as input
Rate: Port 3 configured as input
Internal pull-up value: 4.7 kΩ
Input high voltage threshold: 2.4 V
Input low voltage threshold: 0.8 V
Terminal count: 65,535
Maximum rate frequency: 50 kHz
Minimum rate frequency: 0.5 Hz
Maximum count frequency: 50 kHz
Power
Power Consumption: 0.75 Watts (from USB port)
Excitation output: +15 V dc (-7.5% to +2.5%) at 70% load (47 mA), 67 mA at full load
ADC Characteristics
Voltage Measurement Resolution:
Range Resolution
±10 mV 0.305µV
±25 mV 0.763 µV
±50 mV 1.53 µV
±100 mV 3.05µV
±250 mV 7.63 µV
±500 mV 15.26 µV
±1 V 30.5 µV
±2.5 V 76.3 µV
±5 V 152.6 µV
±10 V 305 µV
±25 V 763 µV
±50 V 1.53 mV
Thermocouple Temperature Measurement Resolution:
TC Type Resolution
J 0.086 °C
K 0.096 °C
T 0.037 °C
B 0.096 °C
R/S 0.111 °C
E 0.073 °C
N 0.092 °C
4-20 mA current loop resolution: 13,100 ADC counts over the 4-20 mA range (5 VFS range with 250-Ω shunt resistor)
Maximum sample throughput rate: Single enabled channel: 2,000 S/s
Two or more enabled channels: 200 S/s
Minimum sample throughput (hardware): 1 enabled analog channel: 0.000109 S/s
2 or more enabled analog channels: 0.000011 S/s
Minimum sample throughput (using WinDaq): .0001969 S/s
Sample rate timing accuracy: 50 ppm
Indicators and Connections
Interface: USB 2.0 (mini-B style connector)
Indicator lights: 3 LEDs: Power, Active, Event
Input Connections: Two 16-position terminal strips
Pushbutton: Manual event when used with WinDaq software
ChannelStretch™ Operation
WinDaq software: If any synced device has two or more enabled analog channels, all synced devices must enable the same number of analog and digital channels and the same sample throughput rate. If all synced devices have one or zero enabled analog channels, sample rate per channel must be the same across all devices. One or more digital ports configured as a discrete input counts as one digital channel. Rate and count inputs count as one digital channel each.
Programmed (.Net- or protocol-based): Sample rate per channel must be the same across all synced devices.
Maximum number of devices: 16
Maximum channel count: 128 analog, 112 digital
Maximum supported throughput: ≥480 kHz
Synchronization compatibility: DI-2008
PC USB prerequisite: All instruments must be connected to the same USB controller. The use of USB hubs are recommended to meet this requirement.
Environmental
Operating Temperature: 0 to 70 °C
Storage Temperature: -20 to 70 °C
Storage Humidity: 0 to 90% non-condensing
Physical Characteristics
Enclosure: Hardened Plastic
Mounting: Desktop; bulkhead
Dimensions: 3.28D × 6.68W × 1.13H in. (83.31D × 169.67W × 28.7H mm.)
Weight: 5.7 oz. (162 grams)
Software Support
WinDaq software: OS support
Programming: DATAQ .NET Class, Instrument protocol, ActiveX Control

Videos

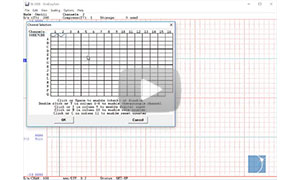

DI-2008 Thermocouple DAQ Video Playlist
DI-2008 Tutorials

The DI-2008 Thermocouple DAQ Videos and Tutorials.
Making Thermocouple Temperature Measurements Using a DATAQ Instruments Data Logger

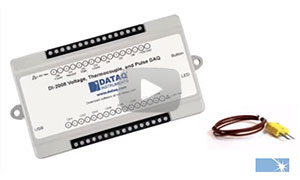

Thermocouple Data Acquisition
